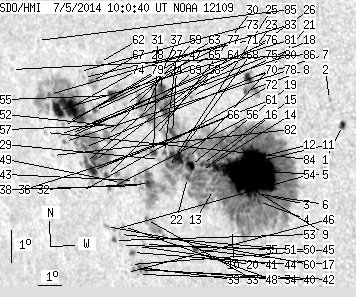

SDO HMI 2014-07-05 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 324.00 | 1608.06 | 223.97 | 1115.71 | -7.69 | 219.41 | -42.88 | 104.69 | 0.6986 | 281.1 | -1.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 4.82 | 1.88 | 3.02 | -6.46 | 225.76 | -36.54 | 105.02 | 0.6148 | 895.0 | 613.0 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -5.68 | 225.32 | -36.97 | 103.61 | 0.6180 | 829.0 | 521.1 | |
| 1.73 | 1133.54 | 1.14 | 766.23 | -8.78 | 222.61 | -39.69 | 107.30 | 0.6633 | 927.5 | 201.1 | |
| 1.18 | -3.00 | 0.79 | -3.00 | -8.95 | 222.18 | -40.12 | 107.38 | 0.6692 | 783.6 | 999999 | |
| 118.30 | -3.00 | 78.33 | -3.00 | -8.02 | 222.22 | -40.08 | 106.04 | 0.6656 | 1292.5 | 999999 | |
| 2.18 | -3.00 | 1.45 | -3.00 | -8.71 | 222.05 | -40.25 | 106.98 | 0.6700 | 869.2 | 999999 | |
| 5.36 | 22.99 | 3.52 | 15.08 | -5.14 | 222.18 | -40.11 | 101.77 | 0.6578 | -691.5 | -339.8 | |
| 1.18 | -7.00 | 0.78 | -7.00 | -5.55 | 222.03 | -40.27 | 102.33 | 0.6608 | 118.7 | 999999 | |
| 22.08 | -3.00 | 14.82 | -3.00 | -8.30 | 221.37 | -40.93 | 106.13 | 0.6771 | 944.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -9.87 | 220.98 | -41.31 | 108.22 | 0.6870 | -327.0 | -299.3 | |
| 13.90 | -3.00 | 9.37 | -3.00 | -7.97 | 221.04 | -41.25 | 105.54 | 0.6801 | 783.7 | 999999 | |
| 5.72 | -3.00 | 3.89 | -3.00 | -7.95 | 220.59 | -41.70 | 105.37 | 0.6856 | 684.4 | 999999 | |
| 0.73 | -3.00 | 0.50 | -3.00 | -8.65 | 220.38 | -41.92 | 106.27 | 0.6904 | 426.5 | 999999 | |
| 2.91 | -3.00 | 1.98 | -3.00 | -7.90 | 220.31 | -41.99 | 105.20 | 0.6889 | 624.7 | 999999 | |
| 1.18 | -3.00 | 0.81 | -3.00 | -7.88 | 219.98 | -42.32 | 105.07 | 0.6929 | 551.8 | 999999 | |
| 3.00 | -3.00 | 2.06 | -3.00 | -8.10 | 219.95 | -42.35 | 105.36 | 0.6939 | -263.3 | 999999 | |
| 1.91 | 3.54 | 1.34 | 2.48 | -10.56 | 219.32 | -42.98 | 108.54 | 0.7092 | 632.5 | 463.8 | |
| 0.00 | 1.64 | 0.00 | 1.12 | -5.79 | 219.80 | -42.50 | 102.03 | 0.6896 | -619.0 | -352.5 | |
| 5.72 | -3.00 | 3.95 | -3.00 | -7.93 | 219.51 | -42.79 | 104.98 | 0.6987 | 790.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -10.79 | 219.02 | -43.28 | 108.74 | 0.7134 | 486.0 | 336.9 | |
| 2.54 | -3.00 | 1.76 | -3.00 | -7.72 | 219.41 | -42.89 | 104.65 | 0.6993 | 948.4 | 999999 | |
| 2.73 | -3.00 | 1.89 | -3.00 | -8.31 | 219.33 | -42.96 | 105.45 | 0.7020 | -557.0 | 999999 | |
| 14.08 | -3.00 | 9.80 | -3.00 | -7.71 | 218.95 | -43.35 | 104.49 | 0.7049 | 713.7 | 999999 | |
| 4.45 | -3.00 | 3.09 | -3.00 | -6.97 | 218.87 | -43.43 | 103.43 | 0.7038 | 693.9 | 999999 | |
| 1.36 | -3.00 | 0.96 | -3.00 | -8.00 | 218.57 | -43.73 | 104.78 | 0.7102 | -458.1 | 999999 | |
| 9.09 | -3.00 | 6.32 | -3.00 | -6.23 | 218.65 | -43.64 | 102.35 | 0.7046 | 730.1 | 999999 | |
| 1.18 | -3.00 | 0.83 | -3.00 | -7.57 | 218.45 | -43.84 | 104.15 | 0.7104 | 334.5 | 999999 | |
| 8.18 | -3.00 | 5.69 | -3.00 | -5.65 | 218.59 | -43.71 | 101.51 | 0.7041 | -555.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.41 | -7.80 | 218.21 | -44.09 | 104.39 | 0.7139 | -181.0 | -150.6 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -7.06 | 218.13 | -44.16 | 103.35 | 0.7129 | -225.0 | -195.6 | |
| 3.45 | 5.72 | 2.44 | 4.05 | -7.59 | 217.98 | -44.32 | 104.03 | 0.7161 | 563.6 | 299.9 | |
| 5.00 | -3.00 | 3.57 | -3.00 | -8.57 | 217.67 | -44.63 | 105.27 | 0.7224 | -1011.4 | 999999 | |
| 1.00 | 18.17 | 0.72 | 13.06 | -9.70 | 217.35 | -44.95 | 106.69 | 0.7292 | -785.3 | -378.8 | |
| 1.36 | 10.99 | 1.00 | 8.06 | -11.28 | 217.01 | -45.29 | 108.67 | 0.7379 | -840.3 | -669.6 | |
| 0.00 | 2.36 | 0.00 | 1.72 | -10.49 | 217.12 | -45.18 | 107.67 | 0.7342 | -430.0 | -285.5 | |
| 0.00 | 4.00 | 0.00 | 2.85 | -7.58 | 217.55 | -44.75 | 103.89 | 0.7212 | -52.0 | 45.3 | |
| 1.00 | -3.00 | 0.71 | -3.00 | -6.46 | 217.64 | -44.65 | 102.39 | 0.7173 | 150.2 | 999999 | |
| 0.00 | 2.82 | 0.00 | 2.03 | -8.64 | 217.31 | -44.99 | 105.26 | 0.7268 | -767.0 | -671.1 | |
| 1.36 | -34.00 | 1.00 | -34.00 | -11.23 | 216.75 | -45.55 | 108.51 | 0.7406 | -858.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -11.45 | 216.66 | -45.64 | 108.77 | 0.7423 | -233.0 | -297.0 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -10.57 | 216.79 | -45.50 | 107.66 | 0.7381 | -581.0 | -508.1 | |
| 0.00 | 2.00 | 0.00 | 1.48 | -11.30 | 216.51 | -45.78 | 108.52 | 0.7435 | -649.0 | -612.0 | |
| 0.00 | 2.73 | 0.00 | 1.97 | -8.50 | 217.02 | -45.28 | 104.98 | 0.7297 | -814.0 | -674.3 | |
| 1.54 | 3.18 | 1.14 | 2.34 | -10.77 | 216.53 | -45.76 | 107.83 | 0.7416 | -851.2 | -674.4 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -11.15 | 216.36 | -45.93 | 108.27 | 0.7447 | -656.0 | -652.8 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -11.41 | 216.13 | -46.17 | 108.53 | 0.7480 | -358.0 | -318.2 | |
| 0.00 | 2.09 | 0.00 | 1.50 | -6.15 | 216.94 | -45.36 | 101.78 | 0.7249 | -346.0 | -357.1 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -9.97 | 216.28 | -46.01 | 106.69 | 0.7421 | -655.0 | -570.1 | |
| 4.09 | 11.81 | 2.98 | 8.62 | -8.59 | 216.43 | -45.86 | 104.92 | 0.7367 | -738.7 | -624.1 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -10.57 | 216.08 | -46.22 | 107.42 | 0.7461 | -679.0 | -530.9 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -10.23 | 216.06 | -46.24 | 106.96 | 0.7454 | -690.0 | -617.6 | |
| 0.00 | 7.27 | 0.00 | 5.26 | -6.84 | 216.55 | -45.75 | 102.62 | 0.7311 | -573.0 | -560.9 | |
| 1.18 | 3.00 | 0.88 | 2.23 | -10.42 | 215.79 | -46.50 | 107.14 | 0.7489 | -534.5 | -485.5 | |
| 0.00 | 1.91 | 0.00 | 1.42 | -10.08 | 215.86 | -46.44 | 106.71 | 0.7472 | -704.0 | -597.5 | |
| 6.36 | 20.26 | 4.60 | 14.60 | -5.89 | 216.39 | -45.90 | 101.30 | 0.7308 | -896.1 | -608.2 | |
| 0.64 | 2.27 | 0.47 | 1.68 | -8.80 | 215.86 | -46.44 | 105.03 | 0.7437 | -482.0 | -446.2 | |
| 0.00 | 3.18 | 0.00 | 2.32 | -6.83 | 216.06 | -46.24 | 102.48 | 0.7367 | -655.0 | -608.2 | |
| 2.18 | 111.85 | 1.61 | 83.13 | -8.40 | 215.79 | -46.50 | 104.48 | 0.7435 | -677.8 | -604.4 | |
| 0.00 | 8.99 | 0.00 | 6.58 | -7.18 | 215.97 | -46.33 | 102.92 | 0.7385 | -461.0 | -300.1 | |
| 0.00 | 3.09 | 0.00 | 2.31 | -10.00 | 215.51 | -46.78 | 106.49 | 0.7508 | -530.0 | -421.5 | |
| 2.18 | -58.00 | 1.61 | -58.00 | -8.09 | 215.57 | -46.73 | 104.02 | 0.7453 | -887.9 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.85 | -4.90 | 215.92 | -46.38 | 99.84 | 0.7343 | -747.0 | -620.0 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -6.23 | 215.73 | -46.56 | 101.59 | 0.7392 | -739.0 | -641.7 | |
| 5.81 | -58.00 | 4.32 | -58.00 | -7.95 | 215.32 | -46.98 | 103.76 | 0.7477 | -952.7 | 999999 | |
| 1.73 | 160.09 | 1.27 | 120.93 | -6.39 | 215.53 | -46.76 | 101.76 | 0.7418 | -816.3 | -354.4 | |
| 5.91 | -58.00 | 4.41 | -58.00 | -8.27 | 215.18 | -47.12 | 104.14 | 0.7501 | -788.1 | 999999 | |
| 1.36 | 14.17 | 1.00 | 10.40 | -5.50 | 215.50 | -46.80 | 100.56 | 0.7404 | -856.0 | -566.6 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -6.84 | 215.16 | -47.14 | 102.26 | 0.7470 | -400.0 | -389.3 | |
| 1.73 | -58.00 | 1.29 | -58.00 | -8.03 | 214.90 | -47.40 | 103.75 | 0.7527 | -584.3 | 999999 | |
| 2.18 | -58.00 | 1.63 | -58.00 | -7.56 | 214.92 | -47.37 | 103.15 | 0.7513 | -890.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -5.39 | 215.15 | -47.15 | 100.34 | 0.7442 | -669.0 | -544.5 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -8.95 | 214.56 | -47.74 | 104.85 | 0.7586 | -506.0 | -485.0 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -5.21 | 214.99 | -47.31 | 100.07 | 0.7457 | -470.0 | -386.8 | |
| 26.80 | -65.00 | 20.14 | -65.00 | -6.35 | 214.45 | -47.85 | 101.44 | 0.7540 | -966.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -7.15 | 214.34 | -47.96 | 102.47 | 0.7569 | -678.0 | -615.4 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -7.28 | 214.28 | -48.02 | 102.62 | 0.7579 | -733.0 | -613.5 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -6.79 | 214.25 | -48.04 | 101.97 | 0.7571 | -599.0 | -500.8 | |
| 0.73 | 2.54 | 0.55 | 1.93 | -7.42 | 214.02 | -48.27 | 102.73 | 0.7610 | -520.1 | -488.8 | |
| 0.00 | 2.63 | 0.00 | 2.00 | -6.95 | 214.04 | -48.25 | 102.13 | 0.7598 | -420.0 | -396.6 | |
| 0.00 | 2.45 | 0.00 | 1.87 | -7.21 | 213.82 | -48.47 | 102.41 | 0.7628 | -208.0 | -299.2 | |
| 11.45 | -65.00 | 8.71 | -65.00 | -6.47 | 213.83 | -48.46 | 101.45 | 0.7612 | -587.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -7.88 | 213.39 | -48.90 | 103.17 | 0.7689 | -346.0 | -245.3 | |
| 1.27 | -65.00 | 0.97 | -65.00 | -5.98 | 213.52 | -48.78 | 100.76 | 0.7637 | -399.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.26 | -7.17 | 213.17 | -49.13 | 102.22 | 0.7699 | -388.0 | -261.1 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -4.34 | 213.13 | -49.16 | 98.55 | 0.7651 | -388.0 | -404.8 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -5.29 | 211.80 | -50.50 | 99.52 | 0.7813 | -337.0 | -284.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
