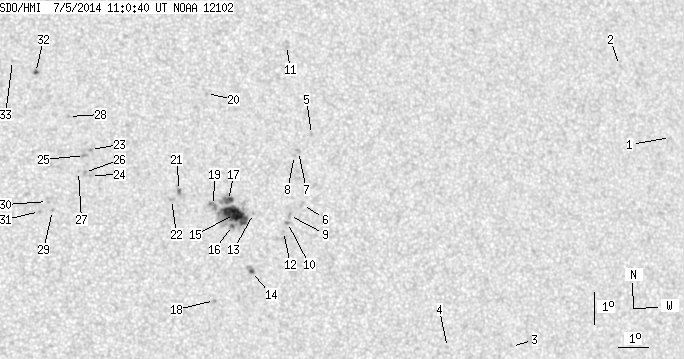

SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.62 | 115.76 | 17.13 | 60.99 | 11.42 | 279.77 | 18.02 | 295.74 | 0.3382 | -502.5 | -425.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.49 | 12.94 | 295.27 | 33.53 | 288.13 | 0.5686 | -693.0 | -531.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 15.23 | 293.74 | 31.99 | 292.77 | 0.5565 | -408.0 | -444.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 6.70 | 288.91 | 27.16 | 278.17 | 0.4599 | -633.0 | -551.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 6.73 | 286.72 | 24.98 | 278.76 | 0.4260 | -694.0 | -533.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 13.37 | 282.65 | 20.90 | 297.15 | 0.3917 | -818.0 | -651.3 | |
| 0.00 | 2.63 | 0.00 | 1.41 | 11.22 | 282.17 | 20.42 | 292.36 | 0.3716 | -650.0 | -571.4 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 12.85 | 282.17 | 20.42 | 296.41 | 0.3814 | -659.0 | -653.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.73 | 282.02 | 20.28 | 296.27 | 0.3785 | -707.0 | -596.6 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 10.89 | 281.71 | 19.97 | 291.92 | 0.3630 | -894.0 | -711.8 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 10.67 | 281.63 | 19.88 | 291.43 | 0.3606 | -1134.0 | -901.2 | |
| 0.00 | 3.72 | 0.00 | 2.02 | 16.15 | 282.09 | 20.34 | 304.02 | 0.4045 | -582.0 | -523.2 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 10.40 | 281.48 | 19.73 | 290.84 | 0.3569 | -859.0 | -756.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 10.97 | 280.53 | 18.79 | 293.27 | 0.3456 | -668.0 | -529.0 | |
| 1.09 | 5.00 | 0.57 | 2.62 | 9.20 | 280.36 | 18.61 | 288.45 | 0.3336 | -1039.5 | -748.8 | |
| 25.89 | 63.51 | 13.61 | 33.37 | 10.95 | 279.91 | 18.16 | 293.88 | 0.3361 | -1137.8 | -625.1 | |
| 0.82 | -15.00 | 0.43 | -15.00 | 10.62 | 279.82 | 18.08 | 293.03 | 0.3328 | -1138.4 | 999999 | |
| 3.91 | -15.00 | 2.05 | -15.00 | 11.39 | 279.74 | 17.99 | 295.26 | 0.3363 | -978.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 8.33 | 279.11 | 17.37 | 286.90 | 0.3100 | -931.0 | -698.8 | |
| 0.00 | 5.09 | 0.00 | 2.67 | 11.24 | 279.24 | 17.50 | 295.44 | 0.3279 | -1043.0 | -917.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.71 | 279.27 | 17.52 | 304.46 | 0.3547 | -737.0 | -645.9 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 11.73 | 278.17 | 16.42 | 298.18 | 0.3154 | -942.0 | -872.9 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 11.45 | 277.89 | 16.14 | 297.77 | 0.3093 | -945.0 | -716.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.04 | 275.37 | 13.62 | 306.55 | 0.2869 | 960.0 | 788.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 12.23 | 275.32 | 13.58 | 304.26 | 0.2788 | 808.0 | 630.5 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 12.85 | 275.17 | 13.42 | 306.42 | 0.2824 | 1129.0 | 868.9 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 12.33 | 275.14 | 13.39 | 304.91 | 0.2771 | 919.0 | 713.7 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 12.36 | 274.95 | 13.20 | 305.38 | 0.2748 | 767.0 | 600.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.07 | 274.72 | 12.97 | 310.76 | 0.2888 | 974.0 | 772.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.17 | 274.06 | 12.31 | 303.35 | 0.2516 | 861.0 | 708.0 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 11.45 | 273.91 | 12.17 | 304.60 | 0.2520 | 747.0 | 623.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.15 | 273.64 | 11.90 | 304.14 | 0.2455 | 804.0 | 679.8 | |
| 0.91 | 2.00 | 0.47 | 1.04 | 15.45 | 273.74 | 11.99 | 316.51 | 0.2923 | 884.0 | 762.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 15.83 | 273.02 | 11.27 | 319.16 | 0.2888 | 756.0 | 397.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
