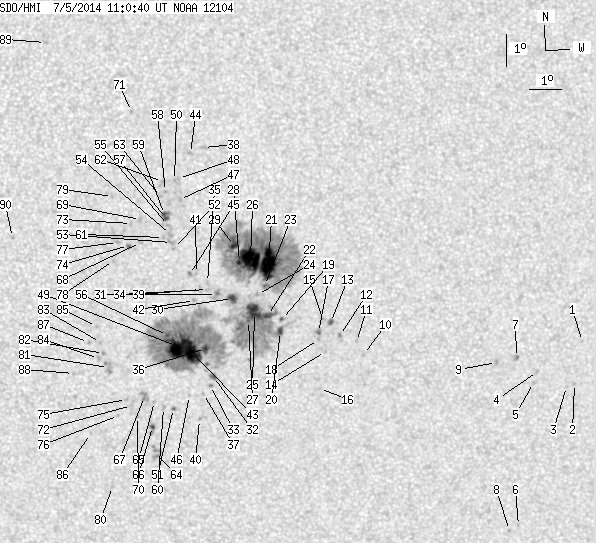

SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 180.70 | 1093.18 | 93.37 | 565.21 | -11.78 | 268.35 | 6.60 | 203.45 | 0.2863 | 288.7 | 92.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | -13.03 | 279.76 | 18.02 | 227.21 | 0.4123 | 654.0 | 540.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -14.36 | 279.60 | 17.86 | 224.59 | 0.4249 | 782.0 | 568.9 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -14.46 | 279.35 | 17.60 | 224.03 | 0.4230 | 453.0 | 451.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -13.96 | 278.35 | 16.61 | 223.25 | 0.4065 | 899.0 | 665.2 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -14.31 | 278.25 | 16.50 | 222.46 | 0.4094 | 660.0 | 519.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.94 | 278.15 | 16.41 | 215.34 | 0.4638 | 796.0 | 556.5 | |
| 0.00 | 2.63 | 0.00 | 1.42 | -13.50 | 277.63 | 15.89 | 222.80 | 0.3934 | 853.0 | 711.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.10 | 277.87 | 16.12 | 214.66 | 0.4633 | 858.0 | 693.1 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -13.65 | 276.99 | 15.25 | 221.38 | 0.3882 | 931.0 | 822.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.33 | 272.69 | 10.95 | 212.89 | 0.3417 | 809.0 | 689.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.91 | 272.45 | 10.70 | 213.00 | 0.3338 | 800.0 | 598.6 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -12.71 | 271.90 | 10.16 | 211.97 | 0.3262 | 953.0 | 803.5 | |
| 1.45 | 3.18 | 0.76 | 1.66 | -12.30 | 271.60 | 9.86 | 211.90 | 0.3178 | 1022.9 | 803.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.22 | 271.48 | 9.73 | 210.08 | 0.3297 | 779.0 | 590.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.17 | 271.34 | 9.60 | 211.45 | 0.3137 | 856.0 | 672.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -14.40 | 271.34 | 9.59 | 207.98 | 0.3454 | 530.0 | 472.2 | |
| 0.64 | 3.72 | 0.33 | 1.95 | -12.61 | 271.23 | 9.49 | 210.42 | 0.3191 | 1166.4 | 894.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.83 | 271.24 | 9.49 | 210.08 | 0.3223 | 773.0 | 650.2 | |
| 0.73 | 2.00 | 0.38 | 1.04 | -12.19 | 270.05 | 8.30 | 207.87 | 0.3033 | 811.8 | 660.1 | |
| 2.91 | 185.79 | 1.51 | 96.48 | -12.57 | 270.03 | 8.28 | 207.22 | 0.3088 | 668.6 | 211.0 | |
| 33.80 | 392.39 | 17.40 | 201.75 | -10.42 | 269.59 | 7.85 | 209.51 | 0.2738 | 1321.9 | 475.8 | |
| 4.63 | -20.00 | 2.40 | -20.00 | -12.06 | 269.61 | 7.86 | 206.79 | 0.2980 | 989.1 | 999999 | |
| 0.91 | -21.00 | 0.47 | -21.00 | -11.11 | 269.49 | 7.74 | 207.96 | 0.2830 | 879.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -11.39 | 269.27 | 7.53 | 206.85 | 0.2856 | 784.0 | 595.7 | |
| 19.17 | -20.00 | 9.93 | -20.00 | -11.96 | 269.19 | 7.45 | 205.72 | 0.2935 | 1084.4 | 999999 | |
| 32.80 | -21.00 | 16.86 | -21.00 | -10.26 | 269.03 | 7.28 | 208.00 | 0.2668 | 1450.3 | 999999 | |
| 1.00 | -20.00 | 0.52 | -20.00 | -12.21 | 269.01 | 7.27 | 204.80 | 0.2960 | 784.4 | 999999 | |
| 2.09 | -21.00 | 1.07 | -21.00 | -10.38 | 268.69 | 6.94 | 206.67 | 0.2660 | 1270.6 | 999999 | |
| 3.72 | -21.00 | 1.91 | -21.00 | -9.85 | 268.52 | 6.77 | 207.05 | 0.2567 | 1393.7 | 999999 | |
| 4.63 | 9.99 | 2.39 | 5.16 | -11.51 | 268.49 | 6.75 | 204.23 | 0.2817 | 1091.9 | 719.2 | |
| 0.00 | 6.72 | 0.00 | 3.46 | -11.38 | 267.99 | 6.24 | 202.80 | 0.2764 | 365.0 | 320.9 | |
| 1.09 | 3.91 | 0.57 | 2.04 | -13.98 | 267.96 | 6.21 | 199.45 | 0.3166 | -995.2 | -901.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.27 | 267.87 | 6.12 | 198.89 | 0.3207 | -946.0 | -766.3 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -11.22 | 267.70 | 5.96 | 202.08 | 0.2720 | 212.0 | 292.4 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -11.00 | 267.70 | 5.95 | 202.38 | 0.2686 | 816.0 | 632.0 | |
| 4.72 | 347.69 | 2.45 | 180.20 | -13.09 | 267.68 | 5.94 | 199.63 | 0.3011 | -1175.6 | -441.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.52 | 267.65 | 5.91 | 198.02 | 0.3235 | -860.0 | -636.5 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -6.79 | 267.51 | 5.77 | 209.63 | 0.2027 | 914.0 | 650.2 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -11.22 | 267.49 | 5.74 | 201.35 | 0.2707 | 582.0 | 470.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.36 | 267.55 | 5.80 | 196.94 | 0.3361 | 821.0 | 566.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.71 | 267.35 | 5.61 | 201.59 | 0.2619 | 849.0 | 679.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.56 | 267.31 | 5.56 | 200.28 | 0.2750 | -857.0 | -672.5 | |
| 26.53 | -36.00 | 13.78 | -36.00 | -13.21 | 267.28 | 5.53 | 198.25 | 0.3009 | -1292.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.97 | 267.11 | 5.37 | 207.47 | 0.2022 | 888.0 | 650.2 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -10.74 | 267.13 | 5.39 | 200.79 | 0.2611 | 963.0 | 896.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.58 | 267.21 | 5.47 | 196.69 | 0.3223 | -875.0 | -612.5 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -8.40 | 266.79 | 5.04 | 203.18 | 0.2219 | 634.0 | 604.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -7.74 | 266.75 | 5.01 | 204.25 | 0.2114 | 907.0 | 674.2 | |
| 33.98 | -36.00 | 17.61 | -36.00 | -13.02 | 266.80 | 5.05 | 196.97 | 0.2954 | -1353.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -7.80 | 266.63 | 4.88 | 203.60 | 0.2115 | 980.0 | 851.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.00 | 266.72 | 4.97 | 194.91 | 0.3266 | -619.0 | -511.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.93 | 266.62 | 4.88 | 200.08 | 0.2451 | 852.0 | 701.2 | |
| 0.00 | 3.91 | 0.00 | 1.99 | -9.74 | 266.56 | 4.81 | 200.10 | 0.2417 | 943.0 | 751.8 | |
| 0.00 | 3.18 | 0.00 | 1.62 | -9.49 | 266.53 | 4.78 | 200.34 | 0.2375 | 937.0 | 793.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.20 | 266.46 | 4.71 | 200.50 | 0.2326 | 811.0 | 627.0 | |
| 1.36 | -36.00 | 0.70 | -36.00 | -12.67 | 266.48 | 4.73 | 196.29 | 0.2882 | -1071.4 | 999999 | |
| 1.36 | 6.63 | 0.69 | 3.37 | -8.99 | 266.40 | 4.65 | 200.58 | 0.2287 | 1167.6 | 937.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -8.14 | 266.36 | 4.61 | 201.80 | 0.2151 | 903.0 | 750.6 | |
| 1.36 | -57.00 | 0.69 | -57.00 | -8.86 | 266.33 | 4.59 | 200.52 | 0.2264 | 1223.3 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.43 | -14.96 | 266.40 | 4.65 | 194.02 | 0.3248 | -741.0 | -598.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.58 | 266.31 | 4.56 | 199.36 | 0.2377 | 763.0 | 647.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.83 | 266.26 | 4.51 | 201.94 | 0.2095 | 951.0 | 731.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.30 | 266.20 | 4.46 | 200.88 | 0.2166 | 833.0 | 659.3 | |
| 0.00 | 7.99 | 0.00 | 4.22 | -16.44 | 266.21 | 4.46 | 192.44 | 0.3478 | -641.0 | -823.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.77 | 266.11 | 4.36 | 193.33 | 0.3205 | -848.0 | -687.4 | |
| 1.27 | 4.54 | 0.67 | 2.39 | -15.57 | 266.06 | 4.32 | 192.62 | 0.3333 | -1061.8 | -780.9 | |
| 0.00 | 6.54 | 0.00 | 3.42 | -14.61 | 265.79 | 4.04 | 192.50 | 0.3167 | -888.0 | -821.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -9.73 | 265.60 | 3.85 | 196.33 | 0.2365 | 858.0 | 687.0 | |
| 0.00 | 3.00 | 0.00 | 1.52 | -9.01 | 265.59 | 3.84 | 197.22 | 0.2247 | 1016.0 | 749.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -15.25 | 265.58 | 3.83 | 191.45 | 0.3264 | -831.0 | -677.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.66 | 265.29 | 3.54 | 201.49 | 0.1687 | 948.0 | 701.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.89 | 265.38 | 3.64 | 191.10 | 0.3200 | -826.0 | -707.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -9.14 | 265.31 | 3.57 | 195.89 | 0.2254 | 713.0 | 554.4 | |
| 0.55 | 2.54 | 0.28 | 1.30 | -9.82 | 265.23 | 3.48 | 194.73 | 0.2363 | 1127.0 | 859.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.70 | 265.22 | 3.48 | 190.73 | 0.3163 | -906.0 | -773.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.21 | 264.98 | 3.23 | 189.71 | 0.3240 | -777.0 | -582.8 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -9.73 | 264.89 | 3.14 | 193.44 | 0.2333 | 745.0 | 609.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.29 | 264.77 | 3.02 | 192.41 | 0.2422 | 779.0 | 666.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.29 | 264.72 | 2.97 | 194.30 | 0.2088 | 894.0 | 761.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -17.51 | 264.82 | 3.08 | 188.18 | 0.3610 | -710.0 | -501.6 | |
| 0.00 | 7.90 | 0.00 | 4.10 | -13.67 | 264.64 | 2.90 | 189.53 | 0.2978 | -955.0 | -787.6 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.23 | 264.48 | 2.74 | 189.26 | 0.2900 | -1108.0 | -859.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.88 | 264.38 | 2.64 | 189.13 | 0.2839 | -869.0 | -703.2 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -13.39 | 264.33 | 2.58 | 188.66 | 0.2922 | -789.0 | -555.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.37 | 264.26 | 2.51 | 188.98 | 0.2752 | -767.0 | -639.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.79 | 264.10 | 2.35 | 186.88 | 0.3313 | -114.0 | -167.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.88 | 264.01 | 2.26 | 187.85 | 0.2830 | -769.0 | -700.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.86 | 263.55 | 1.80 | 185.89 | 0.2985 | -746.0 | -552.8 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -3.53 | 262.65 | 0.91 | 187.54 | 0.1211 | 1008.0 | 681.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.56 | 261.64 | -0.11 | 179.52 | 0.2242 | -791.0 | -627.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
