SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.94 | 726.90 | 66.38 | 392.47 | -19.34 | 256.37 | -5.37 | 167.02 | 0.3984 | 560.9 | 345.5 | |
|
previous
or next observation for the same group /

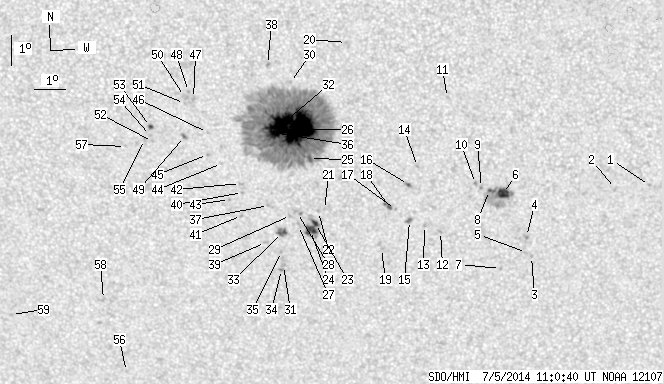

back to the solar disc SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.76 | 267.53 | 5.78 | 193.00 | 0.4205 | 935.0 | 692.6 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -20.85 | 266.42 | 4.67 | 190.53 | 0.4183 | 905.0 | 681.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.14 | 263.70 | 1.96 | 184.03 | 0.4486 | 734.0 | 647.2 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -22.46 | 263.53 | 1.78 | 183.78 | 0.4378 | 951.0 | 846.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -23.00 | 263.53 | 1.79 | 183.70 | 0.4463 | 492.0 | 371.1 | |
| 8.72 | 39.88 | 4.74 | 21.71 | -21.01 | 262.76 | 1.01 | 182.30 | 0.4142 | 1064.5 | 377.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -23.54 | 262.68 | 0.93 | 181.88 | 0.4542 | -713.0 | -637.4 | |
| 0.73 | -6.00 | 0.39 | -6.00 | -20.90 | 262.30 | 0.56 | 181.27 | 0.4124 | 910.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.80 | 262.04 | 0.30 | 180.68 | 0.4107 | 900.0 | 735.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.67 | 261.85 | 0.10 | 180.23 | 0.4085 | 1026.0 | 799.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.83 | 260.95 | -0.80 | 177.90 | 0.3628 | 769.0 | 546.8 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.28 | 260.69 | -1.05 | 177.75 | 0.4345 | -834.0 | -675.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.08 | 260.17 | -1.58 | 176.60 | 0.4317 | -840.0 | -599.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.10 | 259.96 | -1.78 | 175.80 | 0.4005 | -837.0 | -680.7 | |
| 0.64 | 3.54 | 0.35 | 1.94 | -21.91 | 259.68 | -2.07 | 175.51 | 0.4295 | 884.9 | 707.1 | |
| 0.55 | 3.00 | 0.30 | 1.63 | -20.70 | 259.66 | -2.08 | 175.23 | 0.4104 | -942.8 | -802.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.54 | 259.22 | -2.52 | 174.44 | 0.4243 | 736.0 | 572.7 | |
| 1.00 | 4.18 | 0.55 | 2.28 | -21.44 | 259.03 | -2.72 | 173.99 | 0.4231 | 970.8 | 798.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.86 | 258.73 | -3.01 | 173.74 | 0.4458 | -606.0 | -485.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.04 | 257.76 | -3.99 | 168.60 | 0.3398 | -666.0 | -483.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.55 | 256.89 | -4.86 | 169.40 | 0.4296 | -569.0 | -315.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.62 | 256.69 | -5.06 | 169.00 | 0.4313 | -663.0 | -545.9 | |
| 2.82 | 18.81 | 1.55 | 10.37 | -22.02 | 256.58 | -5.17 | 168.96 | 0.4379 | -940.8 | -493.1 | |
| 7.45 | -23.00 | 4.11 | -23.00 | -22.26 | 256.40 | -5.34 | 168.71 | 0.4421 | -1018.4 | 999999 | |
| 2.18 | 579.91 | 1.18 | 311.94 | -19.85 | 256.46 | -5.29 | 167.58 | 0.4045 | -67.3 | 446.0 | |
| 55.24 | -25.00 | 29.70 | -25.00 | -18.89 | 256.17 | -5.58 | 166.32 | 0.3906 | 1479.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -22.09 | 256.01 | -5.73 | 167.82 | 0.4407 | -583.0 | -607.2 | |
| 0.00 | 3.91 | 0.00 | 2.15 | -21.65 | 256.00 | -5.75 | 167.56 | 0.4341 | 99.0 | 114.7 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -21.75 | 255.76 | -5.98 | 167.13 | 0.4364 | -345.0 | -433.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -17.35 | 255.93 | -5.82 | 164.67 | 0.3675 | 253.0 | 228.0 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -23.45 | 255.45 | -6.29 | 167.41 | 0.4633 | -845.0 | -713.8 | |
| 30.71 | -25.00 | 16.51 | -25.00 | -18.69 | 255.63 | -6.12 | 164.92 | 0.3898 | 1482.2 | 999999 | |
| 3.00 | 7.54 | 1.66 | 4.17 | -22.33 | 255.47 | -6.27 | 166.85 | 0.4463 | -954.2 | -774.4 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -23.59 | 255.38 | -6.37 | 167.34 | 0.4656 | -721.0 | -663.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.98 | 255.41 | -6.34 | 167.08 | 0.4563 | -758.0 | -649.4 | |
| 8.72 | -25.00 | 4.70 | -25.00 | -18.99 | 255.29 | -6.46 | 164.35 | 0.3958 | 1128.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.42 | 255.05 | -6.69 | 165.46 | 0.4340 | 630.0 | 464.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.77 | 255.21 | -6.53 | 162.39 | 0.3617 | -767.0 | -617.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -22.67 | 254.89 | -6.86 | 165.89 | 0.4536 | -785.0 | -625.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.99 | 254.22 | -7.53 | 163.44 | 0.4310 | 512.0 | 463.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.76 | 254.14 | -7.60 | 163.83 | 0.4430 | 718.0 | 553.6 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -20.69 | 254.17 | -7.58 | 163.12 | 0.4267 | 585.0 | 520.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.23 | 253.78 | -7.97 | 162.71 | 0.4366 | -692.0 | -510.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.03 | 253.58 | -8.17 | 161.37 | 0.4196 | 471.0 | 320.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.73 | 253.14 | -8.61 | 160.19 | 0.4176 | 650.0 | 549.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.01 | 253.18 | -8.57 | 159.63 | 0.4065 | 657.0 | 562.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -17.89 | 252.78 | -8.97 | 157.68 | 0.3923 | -869.0 | -704.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.67 | 252.63 | -9.12 | 157.11 | 0.3899 | -842.0 | -688.7 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -19.14 | 252.42 | -9.33 | 158.13 | 0.4129 | -929.0 | -759.6 | |
| 0.00 | 3.63 | 0.00 | 1.96 | -17.83 | 252.49 | -9.26 | 156.98 | 0.3932 | -433.0 | -551.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.06 | 252.48 | -9.27 | 157.19 | 0.3966 | -635.0 | -472.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.32 | 251.36 | -10.39 | 156.11 | 0.4220 | -780.0 | -509.1 | |
| 1.18 | 2.27 | 0.64 | 1.24 | -18.82 | 251.32 | -10.42 | 155.53 | 0.4151 | -995.7 | -859.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.12 | 251.30 | -10.44 | 155.80 | 0.4195 | -660.0 | -585.2 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -19.26 | 251.10 | -10.65 | 155.52 | 0.4228 | -808.0 | -553.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -27.19 | 249.79 | -11.95 | 160.02 | 0.5413 | -495.0 | -342.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -19.49 | 250.46 | -11.29 | 154.50 | 0.4304 | -760.0 | -586.0 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -24.68 | 249.26 | -12.48 | 157.25 | 0.5099 | -793.0 | -662.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -25.24 | 246.01 | -15.74 | 152.74 | 0.5379 | -669.0 | -549.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
