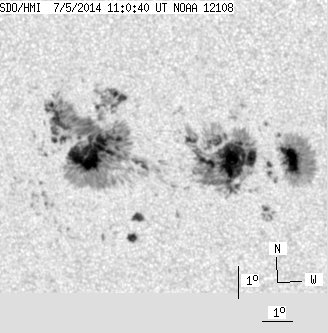

SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 284.82 | 1097.09 | 156.77 | 604.71 | -7.46 | 238.18 | -23.57 | 114.99 | 0.4384 | 13.4 | -65.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.48 | -3.93 | 242.92 | -18.83 | 110.96 | 0.3463 | 728.0 | 498.7 | |
| 25.71 | 143.00 | 13.74 | 76.36 | -7.52 | 242.50 | -19.25 | 119.52 | 0.3772 | 1301.0 | 576.2 | |
| 0.36 | 2.45 | 0.19 | 1.31 | -6.78 | 242.14 | -19.61 | 117.34 | 0.3767 | 861.5 | 635.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.43 | 242.11 | -19.64 | 118.83 | 0.3820 | 186.0 | 183.8 | |
| 0.00 | 2.63 | 0.00 | 1.42 | -8.21 | 241.97 | -19.78 | 120.44 | 0.3900 | 878.0 | 694.6 | |
| 1.82 | 4.09 | 0.98 | 2.20 | -7.72 | 241.80 | -19.95 | 119.11 | 0.3886 | 994.5 | 724.9 | |
| 1.00 | 2.00 | 0.54 | 1.07 | -8.00 | 241.79 | -19.96 | 119.73 | 0.3909 | 922.3 | 760.5 | |
| 0.00 | 8.81 | 0.00 | 4.77 | -9.34 | 241.64 | -20.10 | 122.48 | 0.4037 | 787.0 | 675.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.45 | 241.76 | -19.98 | 116.11 | 0.3798 | 927.0 | 812.5 | |
| 1.27 | 3.45 | 0.69 | 1.87 | -9.12 | 241.59 | -20.16 | 121.95 | 0.4026 | 1055.7 | 810.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -7.50 | 241.68 | -20.07 | 118.48 | 0.3886 | 538.0 | 526.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.64 | 241.52 | -20.22 | 116.29 | 0.3846 | 741.0 | 491.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -8.50 | 241.33 | -20.42 | 120.29 | 0.4012 | 826.0 | 649.2 | |
| 13.45 | 312.71 | 7.25 | 169.65 | -7.54 | 241.19 | -20.56 | 117.99 | 0.3959 | 1157.6 | 325.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -8.54 | 241.13 | -20.61 | 120.13 | 0.4043 | 609.0 | 495.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.54 | 240.93 | -20.81 | 119.90 | 0.4070 | 476.0 | 310.4 | |
| 6.18 | -14.00 | 3.33 | -14.00 | -7.43 | 240.93 | -20.82 | 117.43 | 0.3987 | 1359.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -5.91 | 241.00 | -20.75 | 113.99 | 0.3873 | 958.0 | 773.4 | |
| 3.18 | -14.00 | 1.72 | -14.00 | -7.74 | 240.88 | -20.87 | 118.07 | 0.4017 | 1105.3 | 999999 | |
| 5.91 | -14.00 | 3.19 | -14.00 | -7.15 | 240.81 | -20.94 | 116.68 | 0.3984 | 1201.0 | 999999 | |
| 6.63 | -14.00 | 3.59 | -14.00 | -7.96 | 240.74 | -21.01 | 118.40 | 0.4053 | 950.9 | 999999 | |
| 2.09 | -14.00 | 1.13 | -14.00 | -8.42 | 240.68 | -21.07 | 119.35 | 0.4097 | 781.9 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -6.28 | 240.69 | -21.06 | 114.56 | 0.3944 | 961.0 | 875.6 | |
| 29.35 | -14.00 | 15.89 | -14.00 | -7.50 | 240.53 | -21.22 | 117.15 | 0.4049 | 1183.9 | 999999 | |
| 5.54 | -14.00 | 3.00 | -14.00 | -7.18 | 240.55 | -21.20 | 116.47 | 0.4025 | 919.3 | 999999 | |
| 2.18 | -14.00 | 1.19 | -14.00 | -8.49 | 240.47 | -21.27 | 119.26 | 0.4130 | 356.3 | 999999 | |
| 4.27 | -14.00 | 2.32 | -14.00 | -8.27 | 240.42 | -21.33 | 118.73 | 0.4121 | 443.6 | 999999 | |
| 16.81 | -14.00 | 9.12 | -14.00 | -7.90 | 240.38 | -21.37 | 117.87 | 0.4100 | 976.1 | 999999 | |
| 1.00 | -14.00 | 0.54 | -14.00 | -6.88 | 240.40 | -21.35 | 115.62 | 0.4025 | 667.8 | 999999 | |
| 6.00 | -14.00 | 3.25 | -14.00 | -7.01 | 240.13 | -21.62 | 115.63 | 0.4073 | 903.6 | 999999 | |
| 5.54 | -14.00 | 3.02 | -14.00 | -7.73 | 239.86 | -21.89 | 116.93 | 0.4161 | 751.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.00 | 239.78 | -21.97 | 119.55 | 0.4265 | -701.0 | -553.3 | |
| 3.45 | -14.00 | 1.88 | -14.00 | -7.61 | 239.60 | -22.15 | 116.41 | 0.4190 | 794.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -4.46 | 239.57 | -22.17 | 109.23 | 0.4002 | 518.0 | 575.0 | |
| 4.36 | -14.00 | 2.38 | -14.00 | -7.03 | 239.26 | -22.48 | 114.81 | 0.4199 | 782.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -8.52 | 239.01 | -22.74 | 117.73 | 0.4337 | -756.0 | -556.0 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -6.20 | 239.04 | -22.71 | 112.77 | 0.4180 | 815.0 | 518.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -6.76 | 238.88 | -22.87 | 113.85 | 0.4237 | 549.0 | 404.3 | |
| 0.00 | 2.82 | 0.00 | 1.54 | -6.11 | 238.88 | -22.87 | 112.42 | 0.4198 | 741.0 | 582.8 | |
| 0.00 | 3.18 | 0.00 | 1.76 | -9.34 | 238.65 | -23.10 | 119.03 | 0.4445 | -1002.0 | -756.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.07 | 238.79 | -22.95 | 114.45 | 0.4269 | 350.0 | 183.7 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -8.44 | 238.58 | -23.17 | 117.13 | 0.4391 | 97.0 | 156.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -11.11 | 238.24 | -23.51 | 122.01 | 0.4634 | -734.0 | -525.1 | |
| 0.00 | 4.00 | 0.00 | 2.20 | -7.73 | 238.25 | -23.49 | 115.35 | 0.4389 | -785.0 | -479.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.73 | 237.99 | -23.76 | 117.14 | 0.4494 | 524.0 | 431.7 | |
| 0.00 | 5.72 | 0.00 | 3.16 | -7.95 | 238.00 | -23.74 | 115.58 | 0.4439 | -302.0 | -335.0 | |
| 2.00 | 17.81 | 1.11 | 9.87 | -7.87 | 237.64 | -24.11 | 115.07 | 0.4485 | -659.7 | -514.3 | |
| 5.91 | 8.27 | 3.30 | 4.62 | -9.46 | 237.32 | -24.42 | 117.95 | 0.4636 | 867.0 | 518.4 | |
| 2.18 | -47.00 | 1.21 | -47.00 | -7.75 | 237.44 | -24.30 | 114.65 | 0.4505 | -1008.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -5.98 | 237.51 | -24.24 | 111.01 | 0.4392 | 545.0 | 352.0 | |
| 5.45 | 7.72 | 3.06 | 4.33 | -10.10 | 237.07 | -24.68 | 118.91 | 0.4715 | -965.9 | -674.3 | |
| 4.63 | 493.51 | 2.56 | 276.56 | -5.78 | 236.98 | -24.77 | 110.17 | 0.4458 | 1036.0 | -439.2 | |
| 2.73 | -52.00 | 1.51 | -52.00 | -7.02 | 236.81 | -24.93 | 112.62 | 0.4551 | -1271.7 | 999999 | |
| 2.09 | -52.00 | 1.16 | -52.00 | -7.33 | 236.76 | -24.99 | 113.21 | 0.4577 | -993.2 | 999999 | |
| 2.09 | -52.00 | 1.16 | -52.00 | -5.66 | 236.78 | -24.96 | 109.77 | 0.4481 | 957.3 | 999999 | |
| 1.54 | -52.00 | 0.86 | -52.00 | -6.00 | 236.70 | -25.05 | 110.42 | 0.4511 | 765.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -9.80 | 236.34 | -25.41 | 117.67 | 0.4793 | 498.0 | 400.9 | |
| 4.27 | -52.00 | 2.38 | -52.00 | -7.46 | 236.48 | -25.27 | 113.25 | 0.4625 | -1212.4 | 999999 | |
| 13.54 | -52.00 | 7.56 | -52.00 | -7.06 | 236.30 | -25.45 | 112.30 | 0.4628 | -1327.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -10.12 | 236.04 | -25.71 | 118.00 | 0.4856 | -834.0 | -659.8 | |
| 7.27 | -52.00 | 4.07 | -52.00 | -7.32 | 236.11 | -25.63 | 112.66 | 0.4669 | -1319.5 | 999999 | |
| 1.36 | -52.00 | 0.76 | -52.00 | -6.08 | 236.15 | -25.59 | 110.17 | 0.4595 | 568.3 | 999999 | |
| 3.72 | -52.00 | 2.09 | -52.00 | -7.07 | 235.86 | -25.89 | 111.98 | 0.4692 | -1052.1 | 999999 | |
| 39.61 | -52.00 | 22.28 | -52.00 | -7.70 | 235.68 | -26.07 | 113.07 | 0.4753 | -1189.0 | 999999 | |
| 7.90 | -52.00 | 4.44 | -52.00 | -7.39 | 235.70 | -26.05 | 112.48 | 0.4732 | -1148.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -5.26 | 235.68 | -26.07 | 108.15 | 0.4623 | -859.0 | -599.9 | |
| 0.91 | -52.00 | 0.51 | -52.00 | -7.02 | 235.48 | -26.26 | 111.59 | 0.4742 | -953.7 | 999999 | |
| 3.36 | -52.00 | 1.89 | -52.00 | -7.37 | 235.32 | -26.42 | 112.15 | 0.4784 | -929.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -10.18 | 235.00 | -26.75 | 117.19 | 0.5000 | -682.0 | -518.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -9.87 | 234.85 | -26.90 | 116.50 | 0.5000 | -835.0 | -761.1 | |
| 3.00 | -52.00 | 1.69 | -52.00 | -7.07 | 234.93 | -26.82 | 111.27 | 0.4824 | -1060.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -5.27 | 235.00 | -26.75 | 107.75 | 0.4725 | -736.0 | -633.2 | |
| 15.26 | -52.00 | 8.62 | -52.00 | -6.48 | 234.83 | -26.92 | 110.05 | 0.4808 | -1182.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -9.94 | 234.57 | -27.18 | 116.39 | 0.5043 | -712.0 | -607.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -7.41 | 234.77 | -26.98 | 111.83 | 0.4865 | -683.0 | -513.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -9.69 | 234.45 | -27.30 | 115.85 | 0.5043 | -836.0 | -649.2 | |
| 2.18 | -52.00 | 1.24 | -52.00 | -7.11 | 234.62 | -27.13 | 111.13 | 0.4871 | -787.1 | 999999 | |
| 4.18 | -52.00 | 2.37 | -52.00 | -6.83 | 234.63 | -27.11 | 110.60 | 0.4853 | -817.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.48 | 234.56 | -27.19 | 111.80 | 0.4899 | -539.0 | -469.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -9.13 | 234.39 | -27.35 | 114.78 | 0.5016 | -976.0 | -848.1 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -11.52 | 234.16 | -27.58 | 118.85 | 0.5200 | -724.0 | -491.3 | |
| 1.73 | -52.00 | 0.97 | -52.00 | -6.02 | 234.58 | -27.17 | 108.99 | 0.4821 | -1000.3 | 999999 | |
| 1.45 | -52.00 | 0.82 | -52.00 | -6.18 | 234.43 | -27.31 | 109.20 | 0.4850 | -763.4 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -9.17 | 234.18 | -27.56 | 114.68 | 0.5048 | -866.0 | -786.0 | |
| 0.36 | 2.54 | 0.21 | 1.45 | -7.58 | 234.27 | -27.47 | 111.79 | 0.4945 | -705.0 | -574.4 | |
| 0.00 | 3.54 | 0.00 | 2.03 | -8.83 | 234.14 | -27.60 | 114.03 | 0.5033 | -905.0 | -744.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -6.59 | 234.30 | -27.44 | 109.91 | 0.4889 | -473.0 | -364.3 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -7.21 | 234.16 | -27.59 | 111.01 | 0.4941 | -504.0 | -474.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -8.46 | 234.03 | -27.71 | 113.26 | 0.5027 | -859.0 | -773.9 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -7.43 | 234.11 | -27.64 | 111.39 | 0.4960 | -706.0 | -590.4 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -9.43 | 233.88 | -27.87 | 114.92 | 0.5104 | -517.0 | -490.0 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -9.02 | 233.88 | -27.87 | 114.18 | 0.5080 | -703.0 | -648.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -5.54 | 234.05 | -27.69 | 107.71 | 0.4875 | -726.0 | -603.3 | |
| 0.00 | 2.54 | 0.00 | 1.45 | -6.97 | 233.93 | -27.81 | 110.39 | 0.4961 | -600.0 | -490.1 | |
| 0.00 | 3.36 | 0.00 | 1.93 | -8.87 | 233.79 | -27.96 | 113.84 | 0.5084 | -757.0 | -638.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -9.18 | 233.66 | -28.09 | 114.31 | 0.5121 | -580.0 | -562.1 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -8.43 | 233.69 | -28.06 | 112.97 | 0.5074 | -692.0 | -648.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -5.67 | 233.84 | -27.91 | 107.83 | 0.4912 | -591.0 | -422.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -8.32 | 233.13 | -28.61 | 112.37 | 0.5144 | -668.0 | -550.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -8.55 | 233.01 | -28.74 | 112.69 | 0.5174 | -529.0 | -464.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
