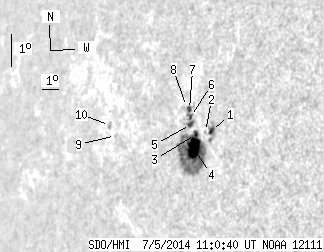

SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.53 | 117.75 | 25.71 | 110.68 | 6.18 | 203.47 | -58.27 | 84.79 | 0.8511 | -562.0 | -139.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 9.36 | 1.82 | 8.52 | 6.56 | 204.56 | -57.19 | 84.34 | 0.8412 | -845.0 | -620.0 | |
| 0.00 | 0.82 | 0.00 | 0.75 | 6.51 | 204.22 | -57.53 | 84.40 | 0.8443 | -443.0 | -446.4 | |
| 1.64 | 91.03 | 1.52 | 85.26 | 6.39 | 203.66 | -58.09 | 84.54 | 0.8495 | -524.4 | -113.6 | |
| 18.44 | -3.00 | 17.22 | -3.00 | 5.99 | 203.61 | -58.13 | 85.01 | 0.8499 | -754.1 | 999999 | |
| 2.27 | 12.45 | 2.14 | 11.76 | 6.68 | 203.31 | -58.43 | 84.20 | 0.8526 | -389.9 | -173.7 | |
| 1.36 | -5.00 | 1.29 | -5.00 | 6.93 | 203.27 | -58.48 | 83.91 | 0.8531 | -372.8 | 999999 | |
| 1.82 | -5.00 | 1.72 | -5.00 | 7.14 | 203.16 | -58.58 | 83.67 | 0.8540 | -316.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.69 | 7.22 | 202.97 | -58.78 | 83.57 | 0.8558 | 54.0 | 56.6 | |
| 0.00 | 0.91 | 0.00 | 0.99 | 6.12 | 198.67 | -63.07 | 84.83 | 0.8920 | 496.0 | 471.3 | |
| 0.00 | 2.45 | 0.00 | 2.71 | 6.40 | 198.20 | -63.55 | 84.51 | 0.8957 | 377.0 | 321.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
