SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.71 | 110.12 | 15.65 | 57.94 | 11.56 | 279.18 | 17.99 | 296.12 | 0.3391 | -459.5 | -377.3 | |
|
previous
or next observation for the same group /

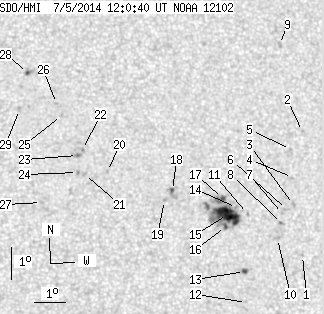

back to the solar disc SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.64 | 282.30 | 21.10 | 287.75 | 0.3743 | -747.0 | -488.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 13.45 | 282.61 | 21.41 | 296.83 | 0.3995 | -812.0 | -659.5 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 11.21 | 282.11 | 20.92 | 291.89 | 0.3790 | -692.0 | -622.9 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 12.04 | 282.15 | 20.95 | 293.92 | 0.3842 | -797.0 | -680.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.90 | 282.15 | 20.96 | 295.99 | 0.3895 | -812.0 | -599.2 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 11.06 | 281.87 | 20.67 | 291.73 | 0.3746 | -714.0 | -604.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 10.94 | 281.73 | 20.53 | 291.55 | 0.3718 | -870.0 | -655.3 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 10.63 | 281.67 | 20.47 | 290.81 | 0.3693 | -955.0 | -794.0 | |
| 0.00 | 2.82 | 0.00 | 1.53 | 16.17 | 282.11 | 20.92 | 303.38 | 0.4123 | -478.0 | -538.3 | |
| 0.00 | 2.63 | 0.00 | 1.40 | 10.17 | 281.51 | 20.31 | 289.75 | 0.3646 | -806.0 | -701.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 10.96 | 280.57 | 19.38 | 292.66 | 0.3545 | -624.0 | -475.9 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 8.24 | 280.37 | 19.18 | 285.25 | 0.3384 | -663.0 | -584.6 | |
| 1.45 | 2.45 | 0.77 | 1.29 | 9.19 | 280.36 | 19.16 | 287.97 | 0.3422 | -1047.1 | -829.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.15 | 280.22 | 19.03 | 293.51 | 0.3503 | -186.0 | -223.9 | |
| 24.07 | 61.14 | 12.70 | 32.22 | 10.94 | 279.91 | 18.72 | 293.26 | 0.3444 | -1153.1 | -751.5 | |
| 1.09 | -15.00 | 0.57 | -15.00 | 10.58 | 279.82 | 18.63 | 292.35 | 0.3409 | -978.6 | 999999 | |
| 1.64 | -15.00 | 0.86 | -15.00 | 11.44 | 279.78 | 18.59 | 294.74 | 0.3455 | -914.7 | 999999 | |
| 0.64 | 6.18 | 0.33 | 3.23 | 11.72 | 278.17 | 16.97 | 297.42 | 0.3234 | -926.6 | -755.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.41 | 277.89 | 16.69 | 296.92 | 0.3171 | -851.0 | -664.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.34 | 276.10 | 14.90 | 302.23 | 0.2983 | 726.0 | 599.8 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 12.26 | 275.35 | 14.16 | 303.27 | 0.2871 | 806.0 | 670.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.03 | 275.33 | 14.14 | 305.56 | 0.2938 | 1032.0 | 842.7 | |
| 0.00 | 2.82 | 0.00 | 1.46 | 12.85 | 275.16 | 13.96 | 305.35 | 0.2897 | 1080.0 | 817.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 12.32 | 275.13 | 13.93 | 303.86 | 0.2846 | 940.0 | 803.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 14.09 | 274.72 | 13.52 | 309.69 | 0.2960 | 956.0 | 615.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.47 | 274.58 | 13.38 | 310.96 | 0.2981 | 805.0 | 687.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 11.41 | 273.93 | 12.74 | 303.30 | 0.2597 | 838.0 | 604.1 | |
| 0.82 | 4.00 | 0.42 | 2.07 | 15.44 | 273.70 | 12.51 | 315.32 | 0.2982 | 966.7 | 717.9 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 14.30 | 273.38 | 12.18 | 313.11 | 0.2813 | 799.0 | 612.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
