SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.71 | 0.00 | 12.95 | 6.93 | 257.19 | -4.01 | 146.22 | 0.1740 | 868.7 | 690.4 | |
|
previous
or next observation for the same group /

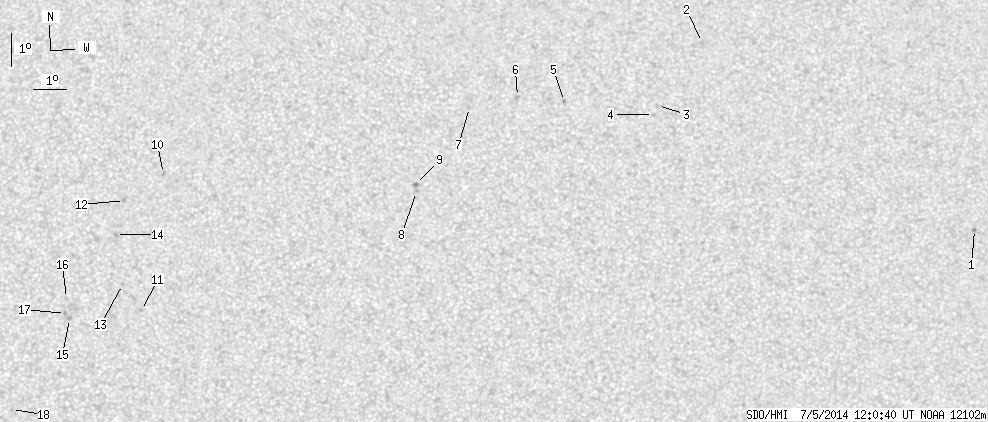

back to the solar disc SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.70 | 6.04 | 276.74 | 15.55 | 280.49 | 0.2722 | 896.0 | 752.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.88 | 268.36 | 7.16 | 320.69 | 0.1934 | 793.0 | 666.7 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 9.95 | 266.91 | 5.71 | 319.68 | 0.1521 | 802.0 | 560.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.67 | 266.78 | 5.58 | 319.11 | 0.1471 | 816.0 | 594.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.09 | 264.02 | 2.83 | 337.59 | 0.1279 | 1026.0 | 844.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 10.25 | 262.57 | 1.37 | 348.94 | 0.1232 | 925.0 | 695.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.91 | 261.08 | -0.12 | 1.00 | 0.1151 | 924.0 | 661.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.34 | 259.45 | -1.75 | 23.40 | 0.0765 | 878.0 | 684.2 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 7.56 | 259.42 | -1.78 | 22.68 | 0.0802 | 1008.0 | 871.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 7.86 | 251.62 | -9.58 | 64.21 | 0.1838 | 907.0 | 740.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 3.67 | 251.01 | -10.19 | 87.80 | 0.1775 | 898.0 | 665.8 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 7.02 | 250.42 | -10.77 | 70.61 | 0.1976 | 941.0 | 708.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 4.46 | 250.41 | -10.79 | 83.69 | 0.1886 | 724.0 | 643.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 5.98 | 250.16 | -11.03 | 76.07 | 0.1970 | 924.0 | 759.9 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 3.41 | 248.77 | -12.43 | 89.31 | 0.2159 | 901.0 | 789.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 4.01 | 248.66 | -12.53 | 86.51 | 0.2178 | 601.0 | 402.5 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 3.56 | 248.64 | -12.56 | 88.62 | 0.2180 | 864.0 | 609.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 0.61 | 246.97 | -14.23 | 100.55 | 0.2511 | 808.0 | 597.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
