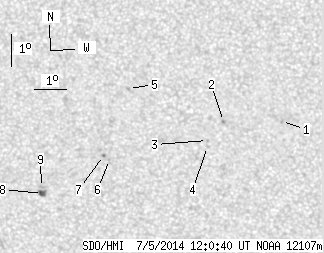

SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 15.35 | 1.25 | 8.04 | -13.92 | 254.10 | -7.10 | 158.54 | 0.3228 | 407.3 | 186.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.71 | 259.27 | -1.93 | 173.23 | 0.2795 | 831.0 | 701.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.71 | 257.46 | -3.74 | 167.03 | 0.2848 | 868.0 | 662.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.32 | 256.94 | -4.25 | 165.86 | 0.2967 | 890.0 | 669.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.51 | 256.94 | -4.26 | 166.01 | 0.2998 | 684.0 | 432.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -11.68 | 254.50 | -6.69 | 156.19 | 0.2840 | 869.0 | 662.6 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -13.94 | 253.84 | -7.36 | 157.25 | 0.3229 | 910.0 | 759.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -13.81 | 253.65 | -7.54 | 156.58 | 0.3222 | 903.0 | 764.6 | |
| 2.36 | 4.91 | 1.25 | 2.60 | -15.04 | 251.66 | -9.54 | 153.04 | 0.3544 | -998.0 | -749.9 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -14.85 | 251.64 | -9.56 | 152.73 | 0.3518 | -940.0 | -635.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
