SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 356.65 | 1662.63 | 242.80 | 1134.32 | -7.66 | 219.30 | -41.90 | 104.98 | 0.6866 | 238.9 | -4.3 | |
|
previous
or next observation for the same group /

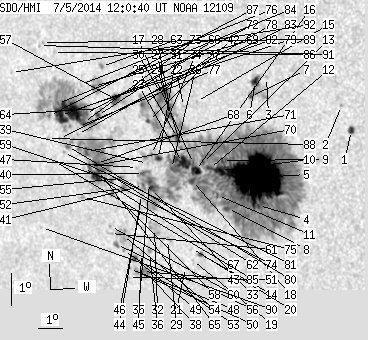

back to the solar disc SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 4.36 | 1.74 | 2.69 | -6.48 | 225.83 | -35.36 | 105.53 | 0.5991 | 884.4 | 631.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -5.72 | 225.52 | -35.68 | 104.17 | 0.6008 | 480.0 | 458.8 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -4.96 | 222.68 | -38.51 | 101.98 | 0.6364 | -616.0 | -522.8 | |
| 0.27 | 1132.83 | 0.18 | 752.46 | -8.95 | 221.97 | -39.23 | 107.73 | 0.6582 | 642.3 | 192.6 | |
| 166.34 | -4.00 | 108.73 | -4.00 | -8.07 | 222.04 | -39.16 | 106.47 | 0.6543 | 1148.0 | 999999 | |
| 5.00 | 23.26 | 3.22 | 15.00 | -5.10 | 222.24 | -38.95 | 102.05 | 0.6426 | -720.2 | -370.1 | |
| 1.27 | -6.00 | 0.82 | -6.00 | -5.57 | 222.01 | -39.19 | 102.70 | 0.6469 | 137.4 | 999999 | |
| 3.09 | -4.00 | 2.07 | -4.00 | -9.09 | 220.70 | -40.50 | 107.43 | 0.6744 | -402.5 | 999999 | |
| 1.45 | -4.00 | 0.97 | -4.00 | -7.59 | 220.68 | -40.51 | 105.27 | 0.6697 | 554.4 | 999999 | |
| 8.54 | -4.00 | 5.70 | -4.00 | -7.91 | 220.57 | -40.63 | 105.68 | 0.6722 | 698.2 | 999999 | |
| 1.54 | -4.00 | 1.04 | -4.00 | -8.69 | 220.34 | -40.85 | 106.73 | 0.6775 | 437.3 | 999999 | |
| 3.91 | -4.00 | 2.62 | -4.00 | -7.86 | 220.12 | -41.07 | 105.46 | 0.6776 | 600.7 | 999999 | |
| 1.73 | -4.00 | 1.16 | -4.00 | -7.69 | 219.86 | -41.34 | 105.12 | 0.6803 | 305.6 | 999999 | |
| 1.54 | 2.54 | 1.06 | 1.75 | -10.58 | 219.35 | -41.84 | 109.00 | 0.6958 | 667.0 | 524.1 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -5.80 | 219.81 | -41.38 | 102.38 | 0.6757 | -607.0 | -481.0 | |
| 7.18 | -4.00 | 4.87 | -4.00 | -7.95 | 219.54 | -41.66 | 105.38 | 0.6851 | 763.0 | 999999 | |
| 2.63 | -4.00 | 1.79 | -4.00 | -7.73 | 219.48 | -41.72 | 105.06 | 0.6851 | 792.1 | 999999 | |
| 3.45 | -4.00 | 2.35 | -4.00 | -8.27 | 219.37 | -41.83 | 105.77 | 0.6881 | -459.4 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.38 | -10.78 | 218.98 | -42.21 | 109.14 | 0.7009 | 524.0 | 401.7 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -10.40 | 219.01 | -42.19 | 108.63 | 0.6994 | 334.0 | 218.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -11.01 | 218.65 | -42.55 | 109.32 | 0.7057 | 380.0 | 272.1 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -5.98 | 219.26 | -41.94 | 102.47 | 0.6830 | -617.0 | -528.9 | |
| 15.90 | -4.00 | 10.86 | -4.00 | -7.72 | 219.03 | -42.17 | 104.89 | 0.6907 | 737.0 | 999999 | |
| 0.45 | -4.00 | 0.31 | -4.00 | -7.25 | 219.04 | -42.16 | 104.23 | 0.6891 | 637.4 | 999999 | |
| 3.36 | -4.00 | 2.29 | -4.00 | -6.95 | 218.91 | -42.29 | 103.76 | 0.6899 | 762.3 | 999999 | |
| 1.27 | -4.00 | 0.88 | -4.00 | -7.93 | 218.54 | -42.66 | 105.02 | 0.6972 | -541.8 | 999999 | |
| 3.82 | -4.00 | 2.61 | -4.00 | -6.28 | 218.65 | -42.55 | 102.73 | 0.6914 | 812.3 | 999999 | |
| 2.09 | -4.00 | 1.43 | -4.00 | -6.00 | 218.68 | -42.52 | 102.34 | 0.6903 | 645.3 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.42 | -10.16 | 218.03 | -43.16 | 107.93 | 0.7100 | 117.0 | -21.2 | |
| 10.08 | -4.00 | 6.90 | -4.00 | -5.67 | 218.42 | -42.78 | 101.80 | 0.6927 | -526.1 | 999999 | |
| 3.27 | 13.90 | 2.27 | 9.69 | -7.64 | 218.03 | -43.17 | 104.45 | 0.7025 | 597.5 | 0.5 | |
| 0.00 | 13.26 | 0.00 | 9.36 | -9.83 | 217.53 | -43.66 | 107.31 | 0.7148 | -489.0 | -441.3 | |
| 3.00 | -4.00 | 2.10 | -4.00 | -8.58 | 217.60 | -43.60 | 105.62 | 0.7103 | -1049.2 | 999999 | |
| 0.55 | -31.00 | 0.38 | -31.00 | -7.52 | 217.75 | -43.45 | 104.20 | 0.7056 | 326.3 | 999999 | |
| 1.82 | -4.00 | 1.27 | -4.00 | -8.40 | 217.54 | -43.65 | 105.35 | 0.7105 | -962.0 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.81 | -10.57 | 217.19 | -44.01 | 108.18 | 0.7211 | -586.0 | -420.2 | |
| 1.18 | 44.88 | 0.82 | 31.09 | -6.50 | 217.74 | -43.46 | 102.78 | 0.7030 | 202.6 | -150.9 | |
| 0.64 | 7.63 | 0.46 | 5.49 | -11.27 | 216.97 | -44.23 | 109.03 | 0.7259 | -907.1 | -754.4 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -7.81 | 217.54 | -43.66 | 104.54 | 0.7089 | -270.0 | -201.9 | |
| 2.18 | -4.00 | 1.53 | -4.00 | -8.13 | 217.32 | -43.87 | 104.91 | 0.7123 | -557.2 | 999999 | |
| 1.00 | -4.00 | 0.70 | -4.00 | -8.50 | 217.27 | -43.93 | 105.41 | 0.7140 | -829.1 | 999999 | |
| 1.54 | -37.00 | 1.07 | -37.00 | -5.98 | 217.54 | -43.66 | 102.00 | 0.7042 | -420.8 | 999999 | |
| 1.18 | -38.00 | 0.85 | -38.00 | -11.21 | 216.76 | -44.44 | 108.88 | 0.7281 | -865.4 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.48 | -8.79 | 217.14 | -44.06 | 105.75 | 0.7163 | -687.0 | -504.8 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -10.65 | 216.83 | -44.37 | 108.15 | 0.7255 | -772.0 | -638.3 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -9.20 | 217.03 | -44.16 | 106.28 | 0.7187 | -602.0 | -526.1 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -7.95 | 217.09 | -44.11 | 104.60 | 0.7146 | -347.0 | -414.0 | |
| 0.00 | 3.36 | 0.00 | 2.43 | -11.22 | 216.50 | -44.70 | 108.80 | 0.7311 | -760.0 | -644.1 | |
| 2.36 | 3.91 | 1.71 | 2.82 | -10.82 | 216.49 | -44.71 | 108.26 | 0.7299 | -797.7 | -628.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -11.14 | 216.20 | -44.99 | 108.59 | 0.7342 | -599.0 | -539.2 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -11.43 | 216.10 | -45.10 | 108.93 | 0.7362 | -437.0 | -380.9 | |
| 1.54 | 6.81 | 1.11 | 4.87 | -8.63 | 216.38 | -44.81 | 105.30 | 0.7247 | -696.0 | -642.7 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -10.58 | 216.05 | -45.15 | 107.80 | 0.7342 | -621.0 | -548.6 | |
| 0.00 | 8.90 | 0.00 | 6.45 | -10.11 | 216.09 | -45.10 | 107.19 | 0.7323 | -694.0 | -668.9 | |
| 1.09 | 2.45 | 0.78 | 1.76 | -8.33 | 216.30 | -44.90 | 104.86 | 0.7249 | -831.0 | -707.5 | |
| 1.27 | 3.27 | 0.93 | 2.39 | -10.41 | 215.77 | -45.42 | 107.47 | 0.7368 | -550.5 | -431.6 | |
| 6.45 | 12.90 | 4.57 | 9.13 | -5.88 | 216.39 | -44.80 | 101.55 | 0.7178 | -884.1 | -682.4 | |
| 0.82 | 3.09 | 0.59 | 2.24 | -8.81 | 215.87 | -45.32 | 105.38 | 0.7311 | -633.4 | -475.8 | |
| 1.00 | 2.45 | 0.72 | 1.77 | -8.41 | 215.89 | -45.30 | 104.85 | 0.7298 | -734.6 | -651.7 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -9.85 | 215.61 | -45.59 | 106.68 | 0.7370 | -520.0 | -485.3 | |
| 0.00 | 1.73 | 0.00 | 1.26 | -10.07 | 215.57 | -45.63 | 106.96 | 0.7381 | -442.0 | -375.9 | |
| 2.36 | 115.74 | 1.72 | 84.09 | -8.11 | 215.54 | -45.66 | 104.35 | 0.7331 | -918.0 | -563.6 | |
| 0.45 | 2.45 | 0.32 | 1.75 | -4.88 | 215.88 | -45.32 | 100.06 | 0.7218 | -784.0 | -694.3 | |
| 0.36 | 6.72 | 0.26 | 4.84 | -6.18 | 215.70 | -45.49 | 101.79 | 0.7266 | -644.8 | -577.9 | |
| 1.91 | -62.00 | 1.39 | -62.00 | -8.12 | 215.36 | -45.83 | 104.30 | 0.7351 | -902.3 | 999999 | |
| 2.36 | -64.00 | 1.70 | -64.00 | -6.40 | 215.55 | -45.65 | 102.06 | 0.7289 | -794.8 | 999999 | |
| 6.54 | -62.00 | 4.78 | -62.00 | -8.31 | 215.24 | -45.95 | 104.53 | 0.7370 | -713.6 | 999999 | |
| 4.00 | -62.00 | 2.91 | -62.00 | -7.90 | 215.31 | -45.89 | 104.00 | 0.7353 | -950.5 | 999999 | |
| 1.00 | 15.72 | 0.72 | 11.28 | -5.51 | 215.47 | -45.73 | 100.83 | 0.7279 | -878.6 | -549.3 | |
| 2.18 | -62.00 | 1.60 | -62.00 | -8.01 | 214.98 | -46.22 | 104.05 | 0.7393 | -635.2 | 999999 | |
| 4.36 | -62.00 | 3.19 | -62.00 | -7.55 | 214.91 | -46.29 | 103.42 | 0.7389 | -931.0 | 999999 | |
| 2.45 | 186.41 | 1.79 | 137.99 | -6.37 | 215.02 | -46.18 | 101.87 | 0.7350 | -960.7 | -288.0 | |
| 4.09 | -72.00 | 2.99 | -72.00 | -6.65 | 214.90 | -46.30 | 102.22 | 0.7370 | -901.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -8.08 | 214.70 | -46.50 | 104.07 | 0.7427 | -345.0 | -300.8 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -8.99 | 214.51 | -46.69 | 105.21 | 0.7471 | -576.0 | -532.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -5.48 | 214.90 | -46.30 | 100.64 | 0.7346 | -632.0 | -521.6 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -6.78 | 214.66 | -46.54 | 102.34 | 0.7401 | -509.0 | -558.7 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -7.03 | 214.58 | -46.62 | 102.65 | 0.7416 | -757.0 | -653.8 | |
| 28.80 | -72.00 | 21.19 | -72.00 | -6.30 | 214.45 | -46.75 | 101.64 | 0.7414 | -949.2 | 999999 | |
| 1.18 | 6.72 | 0.88 | 4.99 | -7.43 | 214.07 | -47.12 | 103.04 | 0.7482 | -569.5 | -557.0 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -7.62 | 213.86 | -47.33 | 103.24 | 0.7510 | -429.0 | -331.1 | |
| 13.44 | -72.00 | 10.00 | -72.00 | -6.48 | 213.88 | -47.31 | 101.74 | 0.7483 | -581.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -7.19 | 213.74 | -47.46 | 102.65 | 0.7514 | -340.0 | -270.8 | |
| 1.91 | -72.00 | 1.42 | -72.00 | -6.11 | 213.79 | -47.41 | 101.23 | 0.7486 | -386.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -7.92 | 213.40 | -47.79 | 103.51 | 0.7568 | -373.0 | -293.9 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -4.54 | 213.77 | -47.42 | 99.15 | 0.7458 | -583.0 | -468.3 | |
| 0.64 | -72.00 | 0.48 | -72.00 | -6.50 | 213.38 | -47.82 | 101.65 | 0.7540 | -424.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -7.22 | 213.19 | -48.01 | 102.54 | 0.7577 | -291.0 | -293.8 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -4.25 | 213.30 | -47.90 | 98.67 | 0.7508 | -544.0 | -464.6 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.02 | 212.42 | -48.78 | 105.93 | 0.7725 | -420.0 | -413.7 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -4.35 | 213.15 | -48.05 | 98.78 | 0.7526 | -442.0 | -380.3 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -5.24 | 211.76 | -49.44 | 99.67 | 0.7697 | -438.0 | -330.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
