SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.27 | 56.62 | 5.00 | 33.77 | -15.89 | 233.17 | -28.03 | 125.76 | 0.5569 | 50.0 | -160.3 | |
|
previous
or next observation for the same group /

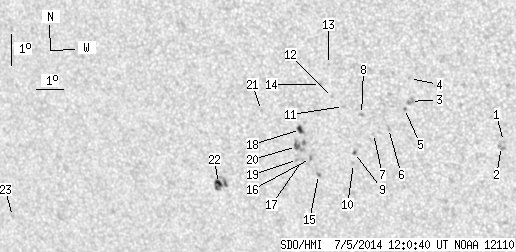

back to the solar disc SDO HMI 2014-07-05 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | -15.50 | 240.07 | -21.13 | 132.58 | 0.4736 | 703.0 | 538.3 | |
| 0.00 | 3.91 | 0.00 | 2.20 | -15.67 | 239.98 | -21.21 | 132.73 | 0.4762 | 554.0 | 649.6 | |
| 0.00 | 4.00 | 0.00 | 2.28 | -14.29 | 237.03 | -24.17 | 126.89 | 0.4981 | 711.0 | 702.0 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -13.55 | 237.07 | -24.12 | 125.71 | 0.4913 | 608.0 | 512.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.52 | 236.79 | -24.41 | 127.01 | 0.5029 | 669.0 | 471.6 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -15.18 | 236.15 | -25.04 | 127.39 | 0.5162 | 924.0 | 666.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -15.35 | 235.61 | -25.59 | 127.09 | 0.5242 | 531.0 | 504.2 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -14.75 | 235.26 | -25.93 | 125.78 | 0.5233 | 817.0 | 716.9 | |
| 0.64 | 1.45 | 0.37 | 0.85 | -15.98 | 234.85 | -26.35 | 127.29 | 0.5384 | 625.4 | 551.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -16.34 | 234.76 | -26.44 | 127.75 | 0.5424 | 510.0 | 422.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -14.51 | 234.66 | -26.53 | 124.79 | 0.5287 | 636.0 | 460.4 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -14.23 | 234.31 | -26.89 | 124.00 | 0.5308 | 628.0 | 485.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -13.18 | 234.30 | -26.89 | 122.27 | 0.5229 | 751.0 | 634.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -13.82 | 233.94 | -27.26 | 123.00 | 0.5323 | 637.0 | 495.2 | |
| 0.36 | 1.73 | 0.22 | 1.03 | -16.73 | 233.45 | -27.75 | 127.06 | 0.5608 | -825.8 | -718.2 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -16.22 | 233.24 | -27.95 | 126.09 | 0.5592 | -927.0 | -879.9 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -16.32 | 232.90 | -28.30 | 125.94 | 0.5640 | -638.0 | -572.6 | |
| 2.63 | 4.54 | 1.57 | 2.70 | -15.29 | 233.02 | -28.17 | 124.48 | 0.5546 | -948.4 | -778.9 | |
| 0.00 | 1.64 | 0.00 | 0.98 | -16.26 | 232.77 | -28.43 | 125.72 | 0.5651 | -711.0 | -576.9 | |
| 1.91 | 9.90 | 1.14 | 5.91 | -15.84 | 232.80 | -28.40 | 125.12 | 0.5615 | -971.7 | -798.4 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -14.72 | 231.70 | -29.49 | 122.43 | 0.5663 | -649.0 | -503.9 | |
| 2.73 | 12.81 | 1.70 | 7.96 | -17.13 | 229.71 | -31.49 | 124.37 | 0.6070 | -755.1 | -687.5 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -18.50 | 221.23 | -39.96 | 120.52 | 0.7093 | -472.0 | -272.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
