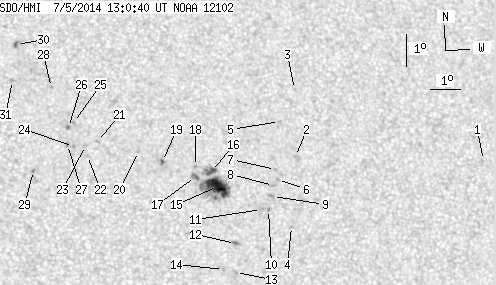

SDO HMI 2014-07-05 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.53 | 106.49 | 13.51 | 56.23 | 11.22 | 279.39 | 18.74 | 294.31 | 0.3477 | -457.2 | -430.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.21 | 11.51 | 289.03 | 28.38 | 287.75 | 0.4910 | -628.0 | -627.5 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 11.80 | 282.58 | 21.93 | 292.48 | 0.3974 | -693.0 | -473.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 13.87 | 282.74 | 22.10 | 297.11 | 0.4120 | -545.0 | -480.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 9.65 | 282.28 | 21.63 | 287.43 | 0.3826 | -846.0 | -580.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 12.89 | 282.14 | 21.49 | 295.45 | 0.3972 | -780.0 | -629.1 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 11.11 | 281.92 | 21.28 | 291.34 | 0.3839 | -742.0 | -626.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 11.42 | 281.88 | 21.23 | 292.14 | 0.3849 | -851.0 | -674.0 | |
| 0.00 | 2.54 | 0.00 | 1.36 | 10.93 | 281.77 | 21.13 | 291.01 | 0.3807 | -846.0 | -607.1 | |
| 0.00 | 3.09 | 0.00 | 1.65 | 10.59 | 281.71 | 21.07 | 290.20 | 0.3782 | -848.0 | -659.9 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 10.19 | 281.55 | 20.91 | 289.32 | 0.3738 | -837.0 | -707.2 | |
| 0.00 | 2.82 | 0.00 | 1.50 | 10.20 | 281.32 | 20.68 | 289.51 | 0.3703 | -671.0 | -606.2 | |
| 0.00 | 2.73 | 0.00 | 1.44 | 9.17 | 280.40 | 19.75 | 287.48 | 0.3513 | -1140.0 | -926.0 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 8.29 | 280.35 | 19.70 | 285.04 | 0.3470 | -680.0 | -470.9 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 8.39 | 279.96 | 19.32 | 285.58 | 0.3412 | -595.0 | -589.7 | |
| 22.25 | 48.32 | 11.78 | 25.56 | 10.93 | 279.92 | 19.28 | 292.67 | 0.3528 | -1143.2 | -736.8 | |
| 2.73 | 9.63 | 1.44 | 5.09 | 11.40 | 279.76 | 19.11 | 294.07 | 0.3530 | -957.7 | -733.0 | |
| 0.00 | 5.00 | 0.00 | 2.63 | 11.25 | 279.22 | 18.57 | 294.25 | 0.3441 | -996.0 | -916.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.56 | 279.24 | 18.60 | 295.06 | 0.3464 | -761.0 | -651.3 | |
| 0.55 | 2.18 | 0.29 | 1.14 | 11.74 | 278.17 | 17.53 | 296.77 | 0.3317 | -911.7 | -824.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.06 | 277.41 | 16.77 | 298.64 | 0.3228 | -799.0 | -623.8 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 12.39 | 276.10 | 15.46 | 301.48 | 0.3066 | 866.0 | 601.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.96 | 275.75 | 15.11 | 300.80 | 0.2981 | 775.0 | 560.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.27 | 275.71 | 15.06 | 301.78 | 0.3000 | 751.0 | 583.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 12.25 | 275.32 | 14.67 | 302.35 | 0.2943 | 861.0 | 694.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 12.99 | 275.36 | 14.72 | 304.40 | 0.3013 | 924.0 | 693.3 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 12.84 | 275.19 | 14.55 | 304.27 | 0.2976 | 994.0 | 842.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 12.31 | 275.13 | 14.48 | 302.86 | 0.2922 | 1017.0 | 739.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.08 | 274.72 | 14.07 | 308.58 | 0.3030 | 761.0 | 616.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.53 | 273.99 | 13.35 | 302.48 | 0.2694 | 973.0 | 812.4 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 15.44 | 273.67 | 13.03 | 314.17 | 0.3042 | 968.0 | 804.3 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 14.32 | 273.47 | 12.83 | 311.73 | 0.2895 | 956.0 | 762.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
