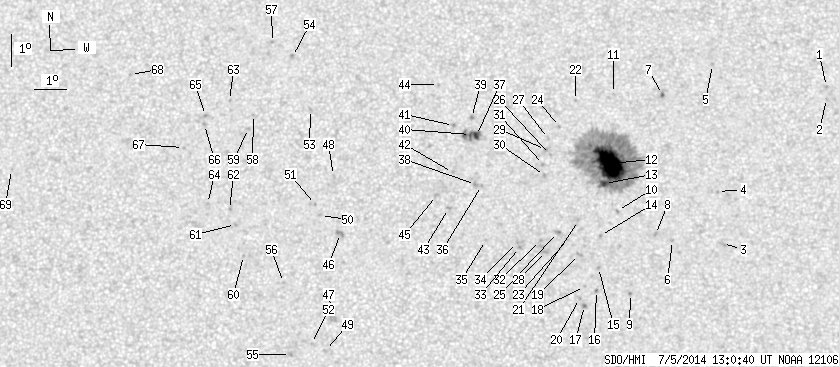

SDO HMI 2014-07-05 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.49 | 422.57 | 33.70 | 214.34 | 15.04 | 260.51 | -0.14 | 343.35 | 0.2111 | -317.7 | -194.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.68 | 268.78 | 8.14 | 331.50 | 0.2839 | -750.0 | -688.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.31 | 268.77 | 8.12 | 330.87 | 0.2783 | -841.0 | -588.7 | |
| 0.00 | 3.18 | 0.00 | 1.60 | 12.82 | 265.32 | 4.67 | 334.28 | 0.1839 | -827.0 | -778.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.43 | 265.20 | 4.55 | 338.25 | 0.2083 | -748.0 | -584.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.41 | 265.13 | 4.49 | 344.07 | 0.2717 | -804.0 | -640.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.92 | 263.75 | 3.11 | 342.39 | 0.1755 | -989.0 | -743.0 | |
| 0.64 | 1.91 | 0.33 | 0.98 | 17.47 | 263.51 | 2.86 | 348.96 | 0.2499 | -977.1 | -742.6 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 13.11 | 263.22 | 2.58 | 345.52 | 0.1761 | -1150.0 | -857.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.29 | 262.43 | 1.78 | 347.57 | 0.1424 | -1065.0 | -856.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.85 | 262.04 | 1.40 | 352.62 | 0.1849 | -844.0 | -636.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 17.50 | 261.94 | 1.30 | 354.96 | 0.2468 | 687.0 | 532.8 | |
| 57.95 | 306.57 | 29.36 | 155.37 | 15.31 | 261.80 | 1.15 | 354.66 | 0.2094 | -1401.6 | -367.5 | |
| 3.27 | -12.00 | 1.65 | -12.00 | 14.69 | 261.64 | 0.99 | 355.14 | 0.1985 | -1117.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.08 | 261.50 | 0.86 | 355.08 | 0.1706 | -809.0 | -670.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.09 | 261.44 | 0.79 | 354.93 | 0.1535 | -962.0 | -836.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.38 | 261.37 | 0.73 | 354.93 | 0.1412 | -706.0 | -611.4 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 10.92 | 261.00 | 0.35 | 357.39 | 0.1328 | 1094.0 | 867.6 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 11.51 | 261.00 | 0.35 | 357.57 | 0.1429 | -612.0 | -503.6 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 12.49 | 260.84 | 0.20 | 358.78 | 0.1599 | -794.0 | -731.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.14 | 260.84 | 0.20 | 358.58 | 0.1364 | 910.0 | 707.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.55 | 260.82 | 0.17 | 359.07 | 0.1781 | -737.0 | -511.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 17.29 | 260.73 | 0.08 | 359.67 | 0.2422 | 757.0 | 542.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.96 | 260.47 | -0.17 | 1.02 | 0.1679 | -772.0 | -595.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.47 | 260.22 | -0.43 | 1.80 | 0.2284 | 786.0 | 567.5 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 13.18 | 260.16 | -0.49 | 2.78 | 0.1719 | -838.0 | -681.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 15.60 | 259.93 | -0.71 | 3.22 | 0.2137 | 705.0 | 581.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.10 | 259.87 | -0.78 | 3.37 | 0.2223 | 752.0 | 594.3 | |
| 0.00 | 3.82 | 0.00 | 1.92 | 12.59 | 259.78 | -0.86 | 5.22 | 0.1622 | -949.0 | -795.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.75 | 259.78 | -0.87 | 3.89 | 0.2165 | 878.0 | 767.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 14.94 | 259.75 | -0.90 | 4.31 | 0.2027 | -982.0 | -778.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.29 | 259.71 | -0.93 | 4.33 | 0.2086 | -790.0 | -627.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.93 | 259.63 | -1.02 | 5.94 | 0.1683 | -710.0 | -550.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.71 | 258.97 | -1.67 | 9.92 | 0.1661 | -949.0 | -747.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.87 | 258.91 | -1.74 | 10.12 | 0.1690 | -852.0 | -602.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.93 | 257.91 | -2.74 | 15.61 | 0.1738 | -627.0 | -515.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.63 | 257.76 | -2.88 | 13.95 | 0.2028 | 826.0 | 683.3 | |
| 3.36 | 15.44 | 1.71 | 7.86 | 16.19 | 257.58 | -3.06 | 12.98 | 0.2294 | 1042.6 | 824.4 | |
| 0.00 | 2.73 | 0.00 | 1.38 | 14.66 | 257.57 | -3.07 | 14.79 | 0.2041 | 1060.0 | 755.7 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 16.75 | 257.42 | -3.23 | 13.08 | 0.2394 | 856.0 | 724.2 | |
| 1.27 | -37.00 | 0.65 | -37.00 | 16.22 | 257.39 | -3.25 | 13.73 | 0.2306 | 1085.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.50 | 256.85 | -3.80 | 15.58 | 0.2376 | 940.0 | 802.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 15.03 | 256.84 | -3.80 | 17.53 | 0.2137 | 474.0 | 407.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.92 | 256.73 | -3.91 | 19.83 | 0.1962 | -737.0 | -650.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.79 | 256.34 | -4.30 | 15.97 | 0.2609 | 636.0 | 531.0 | |
| 0.00 | 2.73 | 0.00 | 1.38 | 14.32 | 256.35 | -4.30 | 20.85 | 0.2049 | 780.0 | 573.4 | |
| 0.00 | 3.54 | 0.00 | 1.80 | 13.13 | 253.35 | -7.30 | 35.96 | 0.2116 | 802.0 | 814.7 | |
| 0.00 | 4.63 | 0.00 | 2.33 | 10.51 | 253.20 | -7.45 | 45.49 | 0.1795 | 772.0 | 801.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.92 | 253.07 | -7.57 | 32.32 | 0.2393 | 714.0 | 572.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 9.52 | 252.97 | -7.68 | 50.58 | 0.1713 | 723.0 | 499.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.68 | 252.70 | -7.95 | 36.72 | 0.2257 | 874.0 | 703.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.02 | 252.53 | -8.12 | 36.38 | 0.2320 | 821.0 | 678.3 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 9.73 | 252.53 | -8.12 | 51.17 | 0.1795 | 829.0 | 805.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.98 | 252.25 | -8.39 | 30.55 | 0.2758 | 803.0 | 650.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.64 | 251.59 | -9.05 | 29.40 | 0.3051 | 835.0 | 745.2 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 9.39 | 251.88 | -8.77 | 54.77 | 0.1849 | 706.0 | 651.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.60 | 251.60 | -9.05 | 46.83 | 0.2121 | 891.0 | 687.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 19.08 | 250.91 | -9.73 | 30.41 | 0.3169 | 800.0 | 714.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.81 | 250.42 | -10.22 | 36.00 | 0.2903 | 730.0 | 508.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.37 | 250.28 | -10.36 | 37.31 | 0.2859 | 893.0 | 680.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.42 | 250.30 | -10.34 | 47.82 | 0.2376 | 781.0 | 611.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.38 | 250.01 | -10.63 | 45.67 | 0.2521 | 984.0 | 821.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.84 | 249.80 | -10.85 | 44.90 | 0.2600 | 728.0 | 669.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.24 | 249.62 | -11.03 | 37.12 | 0.3040 | 661.0 | 507.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.02 | 249.09 | -11.56 | 46.18 | 0.2706 | 808.0 | 689.7 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 16.76 | 248.87 | -11.78 | 39.94 | 0.3057 | 817.0 | 659.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 16.48 | 248.85 | -11.79 | 40.61 | 0.3024 | 900.0 | 728.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.75 | 248.22 | -12.43 | 43.75 | 0.3008 | 732.0 | 628.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 18.02 | 246.32 | -14.33 | 42.67 | 0.3486 | 847.0 | 588.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 14.99 | 242.63 | -18.01 | 55.56 | 0.3637 | 701.0 | 526.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
