SDO HMI 2014-07-05 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.08 | 59.49 | 5.53 | 35.16 | -15.77 | 233.53 | -27.12 | 126.35 | 0.5454 | 80.5 | -161.4 | |
|
previous
or next observation for the same group /

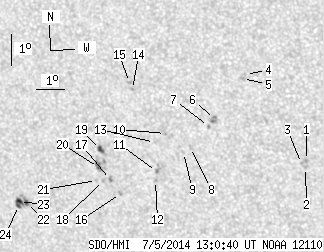

back to the solar disc SDO HMI 2014-07-05 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | -15.52 | 240.10 | -20.55 | 133.39 | 0.4673 | 761.0 | 644.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.75 | 240.04 | -20.61 | 133.67 | 0.4703 | 811.0 | 640.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -15.62 | 239.92 | -20.73 | 133.31 | 0.4703 | 699.0 | 595.4 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -12.81 | 238.31 | -22.34 | 126.47 | 0.4627 | 697.0 | 549.0 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -12.94 | 238.19 | -22.45 | 126.56 | 0.4653 | 781.0 | 640.0 | |
| 0.00 | 4.54 | 0.00 | 2.58 | -14.27 | 237.10 | -23.55 | 127.57 | 0.4904 | 720.0 | 642.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -14.50 | 236.87 | -23.78 | 127.69 | 0.4953 | 574.0 | 376.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -15.19 | 236.16 | -24.49 | 128.02 | 0.5097 | 746.0 | 620.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -15.36 | 235.90 | -24.75 | 128.00 | 0.5143 | 680.0 | 557.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -14.76 | 235.34 | -25.30 | 126.45 | 0.5158 | 741.0 | 660.8 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -16.00 | 234.86 | -25.78 | 127.90 | 0.5319 | 789.0 | 647.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -16.29 | 234.79 | -25.86 | 128.27 | 0.5353 | 600.0 | 446.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -15.06 | 234.92 | -25.73 | 126.49 | 0.5234 | 487.0 | 479.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -13.38 | 234.36 | -26.28 | 123.20 | 0.5168 | 803.0 | 687.6 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -13.16 | 234.28 | -26.36 | 122.75 | 0.5161 | 836.0 | 600.6 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -16.75 | 233.47 | -27.17 | 127.64 | 0.5543 | -833.0 | -702.3 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -16.30 | 233.18 | -27.46 | 126.69 | 0.5541 | -975.0 | -855.2 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -16.34 | 232.93 | -27.72 | 126.50 | 0.5574 | -776.0 | -672.0 | |
| 2.45 | 5.09 | 1.45 | 3.01 | -15.34 | 232.97 | -27.68 | 125.01 | 0.5490 | -941.2 | -739.7 | |
| 0.64 | 11.63 | 0.38 | 6.91 | -15.92 | 232.81 | -27.83 | 125.76 | 0.5554 | -855.9 | -802.9 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -16.35 | 232.67 | -27.97 | 126.27 | 0.5604 | -719.0 | -556.3 | |
| 1.36 | 13.35 | 0.84 | 8.25 | -17.14 | 229.98 | -30.67 | 125.06 | 0.5976 | -836.6 | -593.6 | |
| 3.27 | -22.00 | 2.02 | -22.00 | -17.11 | 229.72 | -30.92 | 124.81 | 0.6004 | -771.3 | 999999 | |
| 1.36 | -22.00 | 0.84 | -22.00 | -17.24 | 229.66 | -30.98 | 124.95 | 0.6020 | -667.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
