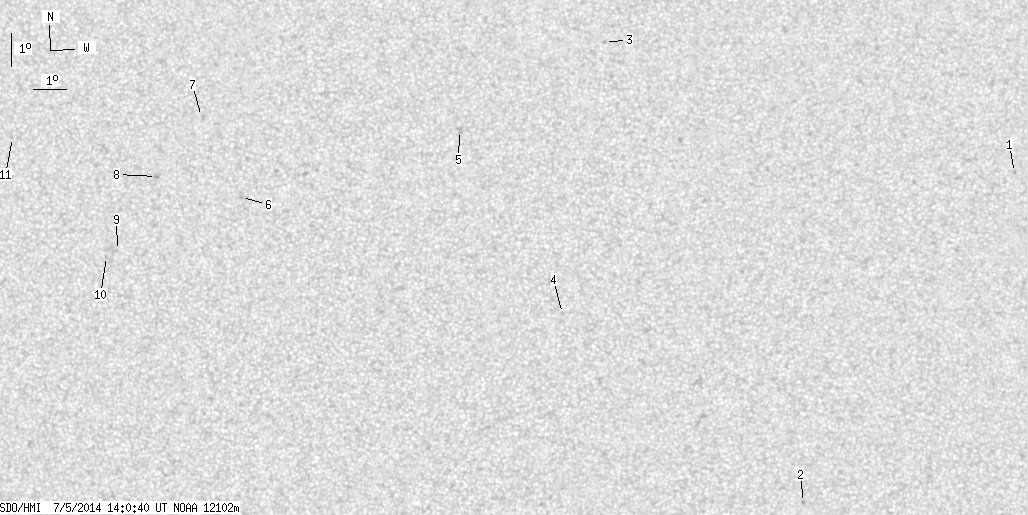

SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.90 | 0.00 | 7.97 | 5.62 | 258.21 | -1.88 | 111.98 | 0.1490 | 793.4 | 647.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | 5.99 | 276.75 | 16.66 | 279.70 | 0.2905 | 754.0 | 656.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -3.99 | 270.06 | 9.97 | 233.75 | 0.2151 | 951.0 | 797.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.12 | 264.00 | 3.91 | 330.39 | 0.1365 | 951.0 | 699.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 1.85 | 262.65 | 2.56 | 239.84 | 0.0519 | 836.0 | 639.2 | |
| 0.00 | 5.09 | 0.00 | 2.53 | 7.43 | 259.51 | -0.58 | 7.98 | 0.0725 | 675.0 | 624.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 5.37 | 252.82 | -7.27 | 74.07 | 0.1316 | 712.0 | 551.8 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 7.84 | 251.55 | -8.54 | 61.76 | 0.1678 | 561.0 | 663.5 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 5.99 | 250.18 | -9.91 | 74.59 | 0.1784 | 977.0 | 687.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 3.73 | 249.00 | -11.09 | 87.66 | 0.1930 | 812.0 | 591.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 3.54 | 248.66 | -11.43 | 88.65 | 0.1988 | 728.0 | 623.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 7.13 | 245.64 | -14.46 | 74.65 | 0.2580 | 770.0 | 577.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
