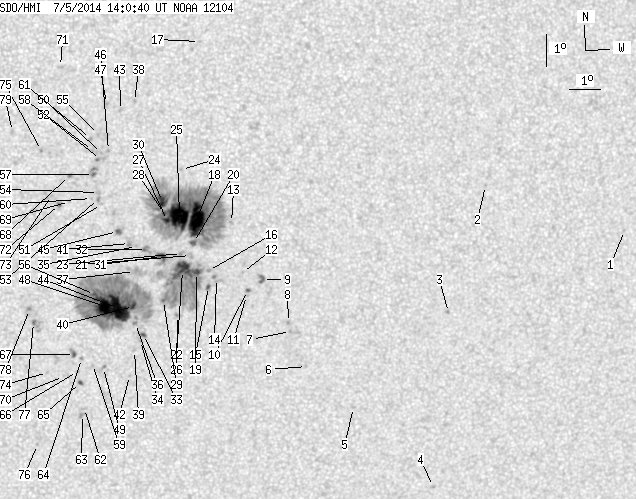

SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.56 | 980.05 | 90.55 | 508.50 | -11.73 | 268.33 | 8.24 | 208.52 | 0.2975 | 354.3 | 82.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.00 | 283.48 | 23.39 | 238.06 | 0.4610 | 580.0 | 404.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.48 | 278.76 | 18.67 | 235.27 | 0.3858 | 761.0 | 566.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.46 | 277.81 | 17.72 | 225.94 | 0.4135 | 877.0 | 665.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -19.09 | 277.83 | 17.74 | 217.22 | 0.4779 | 886.0 | 714.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -16.46 | 274.92 | 14.82 | 216.07 | 0.4185 | 677.0 | 575.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.11 | 273.29 | 13.19 | 214.98 | 0.3861 | 786.0 | 580.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.98 | 272.70 | 12.61 | 215.56 | 0.3659 | 854.0 | 710.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.69 | 272.62 | 12.53 | 215.87 | 0.3613 | 1006.0 | 801.4 | |
| 1.63 | 4.18 | 0.86 | 2.20 | -12.32 | 271.73 | 11.63 | 216.25 | 0.3346 | 917.3 | 784.4 | |
| 0.73 | 1.63 | 0.38 | 0.86 | -12.66 | 271.26 | 11.17 | 214.55 | 0.3347 | 1046.5 | 849.8 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -12.82 | 271.24 | 11.15 | 214.22 | 0.3366 | 814.0 | 630.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -12.09 | 271.08 | 10.99 | 215.12 | 0.3253 | 818.0 | 693.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -10.51 | 270.67 | 10.58 | 217.15 | 0.3003 | 384.0 | 246.9 | |
| 0.00 | 4.90 | 0.00 | 2.56 | -12.27 | 270.26 | 10.17 | 212.76 | 0.3202 | 533.0 | 725.8 | |
| 1.00 | 2.45 | 0.52 | 1.28 | -12.52 | 270.02 | 9.93 | 211.71 | 0.3215 | 801.5 | 616.8 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -12.01 | 270.00 | 9.91 | 212.53 | 0.3143 | 851.0 | 649.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -4.87 | 269.54 | 9.45 | 229.04 | 0.2176 | -814.0 | -703.9 | |
| 36.15 | 367.75 | 18.70 | 189.88 | -10.40 | 269.57 | 9.48 | 214.38 | 0.2880 | 1287.4 | 462.6 | |
| 4.09 | 150.95 | 2.13 | 78.73 | -12.07 | 269.62 | 9.53 | 211.43 | 0.3118 | 944.7 | 211.4 | |
| 1.73 | -18.00 | 0.90 | -18.00 | -11.12 | 269.50 | 9.40 | 212.78 | 0.2974 | 863.3 | 999999 | |
| 0.00 | 3.81 | 0.00 | 1.98 | -11.53 | 269.41 | 9.32 | 211.81 | 0.3024 | 666.0 | 633.1 | |
| 19.71 | -19.00 | 10.26 | -19.00 | -12.00 | 269.18 | 9.08 | 210.35 | 0.3070 | 1067.5 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -11.46 | 269.13 | 9.04 | 211.14 | 0.2990 | 945.0 | 846.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.83 | 269.06 | 8.96 | 216.24 | 0.2616 | 733.0 | 596.8 | |
| 32.33 | -18.00 | 16.69 | -18.00 | -10.30 | 269.03 | 8.94 | 213.04 | 0.2817 | 1431.6 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.71 | -13.43 | 269.07 | 8.98 | 207.81 | 0.3267 | -911.0 | -629.2 | |
| 2.72 | -18.00 | 1.41 | -18.00 | -10.42 | 268.66 | 8.57 | 211.70 | 0.2800 | 1216.8 | 999999 | |
| 1.54 | -18.00 | 0.80 | -18.00 | -10.20 | 268.56 | 8.47 | 211.83 | 0.2760 | 1101.9 | 999999 | |
| 0.54 | -19.00 | 0.28 | -19.00 | -12.94 | 268.61 | 8.52 | 207.29 | 0.3162 | 496.8 | 999999 | |
| 7.45 | -18.00 | 3.83 | -18.00 | -9.82 | 268.49 | 8.39 | 212.35 | 0.2700 | 1328.0 | 999999 | |
| 3.81 | 11.63 | 1.98 | 6.03 | -11.55 | 268.50 | 8.41 | 209.20 | 0.2950 | 1096.0 | 556.9 | |
| 0.00 | 5.81 | 0.00 | 3.01 | -11.33 | 268.02 | 7.93 | 208.18 | 0.2878 | 755.0 | 609.3 | |
| 1.09 | 2.54 | 0.57 | 1.33 | -14.02 | 268.01 | 7.92 | 204.17 | 0.3279 | -983.8 | -845.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.21 | 267.92 | 7.83 | 203.69 | 0.3301 | -676.0 | -621.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.23 | 267.71 | 7.62 | 207.38 | 0.2839 | 740.0 | 572.8 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -13.67 | 267.75 | 7.65 | 203.91 | 0.3208 | -910.0 | -775.5 | |
| 0.00 | 12.26 | 0.00 | 6.36 | -12.02 | 267.67 | 7.57 | 206.00 | 0.2954 | -305.0 | -301.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.70 | 267.56 | 7.46 | 216.57 | 0.2175 | 834.0 | 707.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.53 | 267.74 | 7.65 | 202.82 | 0.3338 | -712.0 | -586.1 | |
| 2.82 | 305.08 | 1.47 | 158.65 | -13.13 | 267.67 | 7.57 | 204.40 | 0.3120 | -1220.1 | -485.5 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -11.13 | 267.49 | 7.39 | 206.85 | 0.2808 | 787.0 | 680.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.33 | 267.61 | 7.52 | 201.54 | 0.3451 | 744.0 | 555.2 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -6.98 | 267.13 | 7.03 | 214.23 | 0.2171 | 815.0 | 705.3 | |
| 29.88 | -40.00 | 15.57 | -40.00 | -13.19 | 267.20 | 7.10 | 202.97 | 0.3098 | -1332.9 | 999999 | |
| 0.73 | 3.45 | 0.37 | 1.78 | -10.75 | 267.10 | 7.01 | 206.26 | 0.2722 | 978.9 | 786.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.22 | 266.77 | 6.68 | 209.94 | 0.2317 | 808.0 | 710.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.76 | 266.69 | 6.60 | 213.12 | 0.2098 | 940.0 | 798.6 | |
| 22.62 | -40.00 | 11.76 | -40.00 | -13.12 | 266.75 | 6.66 | 201.76 | 0.3060 | -1315.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -15.07 | 266.78 | 6.68 | 199.61 | 0.3362 | -498.0 | -359.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.31 | 266.56 | 6.47 | 208.94 | 0.2313 | 955.0 | 769.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -9.90 | 266.59 | 6.49 | 205.98 | 0.2555 | 747.0 | 554.2 | |
| 0.00 | 3.45 | 0.00 | 1.76 | -8.50 | 266.53 | 6.44 | 208.45 | 0.2339 | 765.0 | 795.6 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -9.71 | 266.49 | 6.40 | 205.97 | 0.2519 | 1011.0 | 804.4 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -9.52 | 266.49 | 6.39 | 206.29 | 0.2490 | 878.0 | 697.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.72 | 266.46 | 6.36 | 209.85 | 0.2217 | 937.0 | 722.2 | |
| 0.27 | -40.00 | 0.14 | -40.00 | -12.73 | 266.43 | 6.34 | 201.27 | 0.2980 | -1207.7 | 999999 | |
| 0.64 | 5.90 | 0.32 | 3.01 | -8.96 | 266.32 | 6.23 | 206.74 | 0.2392 | 1181.3 | 898.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.21 | 266.28 | 6.19 | 208.08 | 0.2276 | 926.0 | 686.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -14.97 | 266.42 | 6.33 | 198.75 | 0.3328 | -525.0 | -474.6 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -9.71 | 266.27 | 6.18 | 205.20 | 0.2503 | 666.0 | 576.0 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -7.84 | 266.21 | 6.12 | 208.62 | 0.2214 | 869.0 | 710.2 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -16.39 | 266.21 | 6.12 | 196.87 | 0.3538 | -823.0 | -684.8 | |
| 0.00 | 3.45 | 0.00 | 1.83 | -16.58 | 266.15 | 6.06 | 196.56 | 0.3566 | -987.0 | -733.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.77 | 266.07 | 5.98 | 197.96 | 0.3279 | -631.0 | -376.8 | |
| 0.91 | 1.91 | 0.48 | 1.00 | -15.54 | 266.06 | 5.97 | 197.21 | 0.3399 | -932.5 | -848.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.19 | 265.95 | 5.86 | 197.24 | 0.3339 | -685.0 | -602.2 | |
| 1.18 | 4.45 | 0.62 | 2.33 | -14.64 | 265.84 | 5.75 | 197.45 | 0.3247 | -1025.0 | -873.1 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -8.99 | 265.58 | 5.48 | 203.88 | 0.2342 | 1043.0 | 857.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.80 | 265.59 | 5.50 | 202.58 | 0.2470 | 665.0 | 632.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -15.35 | 265.51 | 5.42 | 195.88 | 0.3343 | -561.0 | -507.3 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -5.60 | 265.26 | 5.17 | 210.02 | 0.1801 | 708.0 | 700.7 | |
| 0.45 | 2.09 | 0.23 | 1.07 | -9.89 | 265.28 | 5.19 | 201.29 | 0.2464 | 1030.2 | 859.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.61 | 265.03 | 4.93 | 200.75 | 0.2404 | 847.0 | 679.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.22 | 265.00 | 4.91 | 194.56 | 0.3300 | -781.0 | -596.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.20 | 264.70 | 4.61 | 201.70 | 0.2161 | 1005.0 | 762.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -17.55 | 264.74 | 4.65 | 192.23 | 0.3661 | -753.0 | -637.5 | |
| 0.54 | 9.17 | 0.28 | 4.77 | -13.61 | 264.53 | 4.44 | 194.47 | 0.3022 | -1015.3 | -750.5 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -13.20 | 264.40 | 4.30 | 194.40 | 0.2950 | -1088.0 | -896.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -7.61 | 263.80 | 3.71 | 198.67 | 0.2012 | -307.0 | -330.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
