SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.12 | 382.37 | 32.00 | 193.90 | 14.99 | 260.69 | 0.60 | 341.51 | 0.2097 | -397.5 | -271.3 | |
|
previous
or next observation for the same group /

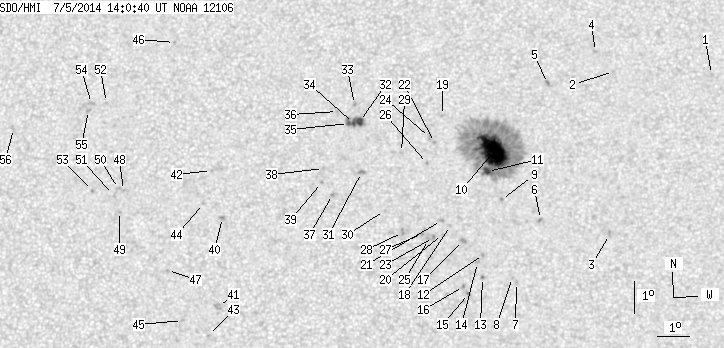

back to the solar disc SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.65 | 268.84 | 8.75 | 329.67 | 0.2884 | -795.0 | -588.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.77 | 265.69 | 5.60 | 339.59 | 0.2674 | -739.0 | -554.5 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 12.69 | 265.42 | 5.33 | 330.90 | 0.1871 | -854.0 | -733.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.40 | 265.13 | 5.04 | 342.25 | 0.2743 | -826.0 | -625.7 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 17.40 | 263.56 | 3.47 | 346.64 | 0.2510 | -909.0 | -808.3 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.17 | 263.27 | 3.17 | 342.48 | 0.1799 | -1066.0 | -853.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.23 | 262.50 | 2.40 | 343.33 | 0.1440 | -927.0 | -747.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.38 | 262.37 | 2.28 | 344.43 | 0.1460 | -887.0 | -684.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.79 | 262.05 | 1.96 | 349.63 | 0.1853 | -942.0 | -763.1 | |
| 50.68 | 288.37 | 25.68 | 146.17 | 15.28 | 261.81 | 1.72 | 352.03 | 0.2100 | -1432.8 | -401.2 | |
| 4.18 | -10.00 | 2.11 | -10.00 | 14.66 | 261.62 | 1.53 | 352.52 | 0.1989 | -1151.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.09 | 261.48 | 1.38 | 351.19 | 0.1547 | -961.0 | -814.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 11.38 | 261.44 | 1.35 | 350.65 | 0.1425 | -715.0 | -610.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 11.85 | 261.29 | 1.19 | 352.15 | 0.1501 | -835.0 | -631.4 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 10.89 | 261.00 | 0.91 | 353.24 | 0.1330 | 1017.0 | 792.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.11 | 260.85 | 0.76 | 354.54 | 0.1365 | 919.0 | 731.3 | |
| 0.00 | 3.00 | 0.00 | 1.50 | 12.53 | 260.85 | 0.76 | 355.36 | 0.1609 | -902.0 | -818.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.99 | 260.45 | 0.36 | 357.93 | 0.1685 | -795.0 | -608.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 16.41 | 260.21 | 0.11 | 359.52 | 0.2272 | 704.0 | 515.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.71 | 260.20 | 0.11 | 359.37 | 0.1636 | -794.0 | -646.0 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.15 | 260.17 | 0.08 | 359.57 | 0.1711 | -897.0 | -711.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.57 | 259.95 | -0.14 | 0.65 | 0.2128 | 885.0 | 746.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.62 | 259.92 | -0.18 | 1.06 | 0.1621 | -965.0 | -810.7 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.72 | 259.79 | -0.30 | 1.35 | 0.2155 | 938.0 | 776.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.56 | 259.76 | -0.33 | 2.02 | 0.1611 | -898.0 | -704.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.91 | 259.73 | -0.36 | 1.75 | 0.2017 | -927.0 | -803.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.74 | 259.57 | -0.52 | 3.09 | 0.1644 | -897.0 | -713.3 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 12.78 | 258.95 | -1.14 | 6.77 | 0.1659 | -990.0 | -795.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.26 | 258.91 | -1.18 | 5.52 | 0.2084 | -697.0 | -566.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.46 | 258.38 | -1.71 | 9.38 | 0.1789 | -811.0 | -709.6 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 14.63 | 257.65 | -2.44 | 11.89 | 0.2011 | 706.0 | 730.9 | |
| 4.90 | 13.35 | 2.50 | 6.79 | 16.22 | 257.57 | -2.52 | 10.73 | 0.2280 | 997.7 | 788.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 16.75 | 257.40 | -2.69 | 10.95 | 0.2375 | 837.0 | 659.8 | |
| 2.00 | -32.00 | 1.02 | -32.00 | 16.16 | 257.38 | -2.71 | 11.57 | 0.2276 | 1128.8 | 999999 | |
| 1.36 | -32.00 | 0.69 | -32.00 | 16.16 | 257.22 | -2.87 | 12.23 | 0.2282 | 1025.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.53 | 256.87 | -3.23 | 13.29 | 0.2357 | 894.0 | 701.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.95 | 256.75 | -3.35 | 17.10 | 0.1936 | -937.0 | -737.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.76 | 256.45 | -3.64 | 17.23 | 0.2083 | 872.0 | 640.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.32 | 256.39 | -3.70 | 18.16 | 0.2015 | 826.0 | 645.7 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 13.22 | 253.30 | -6.79 | 33.80 | 0.2080 | 975.0 | 867.3 | |
| 0.00 | 4.63 | 0.00 | 2.33 | 10.48 | 253.24 | -6.85 | 43.25 | 0.1721 | 823.0 | 770.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.68 | 252.91 | -7.19 | 31.55 | 0.2323 | 767.0 | 525.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.59 | 252.94 | -7.15 | 48.30 | 0.1651 | 880.0 | 658.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 13.65 | 252.69 | -7.41 | 34.91 | 0.2199 | 861.0 | 722.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 10.04 | 252.12 | -7.97 | 49.32 | 0.1808 | 792.0 | 599.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.68 | 251.56 | -8.54 | 27.93 | 0.3015 | 971.0 | 775.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.58 | 251.61 | -8.48 | 45.11 | 0.2048 | 928.0 | 683.9 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 14.04 | 250.13 | -9.96 | 41.98 | 0.2520 | 840.0 | 542.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.39 | 250.03 | -10.06 | 44.11 | 0.2453 | 918.0 | 799.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 14.10 | 249.97 | -10.12 | 42.27 | 0.2546 | 727.0 | 584.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 13.91 | 249.82 | -10.27 | 43.20 | 0.2541 | 588.0 | 633.0 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 16.78 | 249.45 | -10.64 | 37.15 | 0.2940 | 724.0 | 508.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.03 | 249.14 | -10.95 | 44.66 | 0.2634 | 836.0 | 688.2 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 16.74 | 248.97 | -11.13 | 38.44 | 0.2985 | 784.0 | 640.4 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 16.52 | 248.88 | -11.21 | 39.13 | 0.2966 | 944.0 | 693.0 | |
| 0.00 | 2.82 | 0.00 | 1.47 | 15.93 | 246.48 | -13.61 | 45.86 | 0.3167 | 885.0 | 619.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
