SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 296.09 | 1273.66 | 161.27 | 693.10 | -7.41 | 238.19 | -21.90 | 116.55 | 0.4145 | -48.9 | 2.2 | |
|
previous
or next observation for the same group /

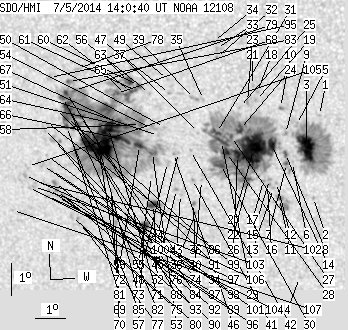

back to the solar disc SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.43 | -6.55 | 242.99 | -17.10 | 120.06 | 0.3391 | 912.0 | 649.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -9.10 | 242.68 | -17.41 | 125.76 | 0.3656 | 906.0 | 739.1 | |
| 32.06 | 144.23 | 16.97 | 76.26 | -7.55 | 242.53 | -17.56 | 121.89 | 0.3538 | 1261.3 | 560.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.62 | 242.08 | -18.02 | 130.12 | 0.3979 | 640.0 | 458.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -6.84 | 242.24 | -17.86 | 119.74 | 0.3521 | 848.0 | 627.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.02 | 242.06 | -18.04 | 122.34 | 0.3644 | 715.0 | 565.1 | |
| 0.82 | 394.46 | 0.44 | 211.43 | -8.06 | 241.86 | -18.23 | 122.14 | 0.3674 | 923.8 | 418.3 | |
| 1.27 | -7.00 | 0.68 | -7.00 | -7.75 | 241.84 | -18.25 | 121.39 | 0.3651 | 1064.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -7.12 | 241.87 | -18.22 | 119.94 | 0.3596 | 955.0 | 809.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -6.32 | 241.74 | -18.35 | 117.78 | 0.3552 | 677.0 | 593.3 | |
| 1.27 | 11.90 | 0.68 | 6.37 | -9.15 | 241.58 | -18.52 | 124.22 | 0.3808 | 953.8 | 756.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.65 | 241.50 | -18.59 | 123.01 | 0.3774 | 595.0 | 506.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -8.84 | 241.40 | -18.70 | 123.29 | 0.3805 | -14.0 | 157.3 | |
| 7.36 | -7.00 | 3.92 | -7.00 | -7.47 | 241.40 | -18.69 | 120.15 | 0.3690 | 1255.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -8.56 | 241.28 | -18.81 | 122.50 | 0.3797 | 753.0 | 656.8 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -8.75 | 241.21 | -18.89 | 122.82 | 0.3823 | 339.0 | 286.0 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -8.60 | 241.08 | -19.01 | 122.31 | 0.3827 | 561.0 | 486.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -5.84 | 241.01 | -19.08 | 115.68 | 0.3623 | 897.0 | 673.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.12 | 240.94 | -19.15 | 116.28 | 0.3654 | 1007.0 | 804.5 | |
| 53.13 | -7.00 | 28.42 | -7.00 | -7.64 | 240.81 | -19.29 | 119.76 | 0.3787 | 1202.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -5.66 | 240.86 | -19.23 | 115.04 | 0.3634 | 704.0 | 538.4 | |
| 1.54 | -7.00 | 0.83 | -7.00 | -8.58 | 240.60 | -19.50 | 121.61 | 0.3892 | 668.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -6.16 | 240.68 | -19.42 | 116.06 | 0.3695 | 802.0 | 736.6 | |
| 6.18 | -7.00 | 3.31 | -7.00 | -7.03 | 240.38 | -19.71 | 117.80 | 0.3801 | 851.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.35 | 240.41 | -19.68 | 116.22 | 0.3747 | 649.0 | 480.7 | |
| 6.90 | -7.00 | 3.71 | -7.00 | -7.84 | 240.27 | -19.82 | 119.55 | 0.3877 | 939.6 | 999999 | |
| 1.54 | -7.00 | 0.83 | -7.00 | -7.25 | 240.11 | -19.99 | 118.00 | 0.3856 | 918.8 | 999999 | |
| 4.27 | -7.00 | 2.30 | -7.00 | -7.75 | 239.92 | -20.17 | 118.92 | 0.3920 | 848.9 | 999999 | |
| 5.36 | -7.00 | 2.88 | -7.00 | -7.41 | 239.77 | -20.32 | 117.98 | 0.3916 | 682.8 | 999999 | |
| 8.27 | -7.00 | 4.46 | -7.00 | -8.13 | 239.70 | -20.39 | 119.50 | 0.3980 | -1.4 | 999999 | |
| 4.00 | -7.00 | 2.15 | -7.00 | -7.13 | 239.62 | -20.47 | 117.17 | 0.3917 | 831.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -4.82 | 239.72 | -20.38 | 111.72 | 0.3751 | 853.0 | 696.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -4.54 | 239.72 | -20.37 | 111.04 | 0.3733 | 864.0 | 699.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -4.33 | 239.63 | -20.46 | 110.41 | 0.3735 | 774.0 | 633.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.12 | 239.24 | -20.85 | 114.40 | 0.3903 | 637.0 | 513.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -8.64 | 239.05 | -21.05 | 119.84 | 0.4110 | -700.0 | -529.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.15 | 239.03 | -21.06 | 116.54 | 0.4003 | 440.0 | 335.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -9.64 | 238.78 | -21.31 | 121.63 | 0.4225 | -897.0 | -712.1 | |
| 0.00 | 3.54 | 0.00 | 1.91 | -6.10 | 238.95 | -21.15 | 114.04 | 0.3944 | 769.0 | 496.7 | |
| 0.36 | 1.73 | 0.20 | 0.94 | -9.36 | 238.74 | -21.36 | 121.00 | 0.4209 | -963.5 | -847.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.61 | 238.75 | -21.34 | 119.44 | 0.4149 | 499.0 | 441.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.71 | 238.74 | -21.36 | 117.48 | 0.4085 | 656.0 | 387.6 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -9.09 | 238.32 | -21.77 | 119.96 | 0.4245 | 710.0 | 582.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.78 | 238.34 | -21.76 | 117.20 | 0.4147 | -224.0 | -229.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.94 | 238.20 | -21.89 | 119.50 | 0.4250 | 896.0 | 726.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.82 | 238.17 | -21.93 | 117.10 | 0.4173 | -657.0 | -572.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.96 | 238.13 | -21.96 | 112.93 | 0.4056 | -793.0 | -618.7 | |
| 0.00 | 3.54 | 0.00 | 1.93 | -8.10 | 237.95 | -22.14 | 117.48 | 0.4223 | -65.0 | -142.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -5.53 | 238.08 | -22.01 | 111.89 | 0.4037 | 695.0 | 563.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.02 | 237.91 | -22.18 | 115.09 | 0.4155 | -746.0 | -573.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -7.27 | 237.70 | -22.39 | 115.43 | 0.4202 | -702.0 | -549.5 | |
| 5.99 | 8.90 | 3.30 | 4.90 | -9.42 | 237.40 | -22.69 | 119.62 | 0.4396 | 853.6 | 513.7 | |
| 2.63 | 598.81 | 1.44 | 330.76 | -7.80 | 237.47 | -22.62 | 116.35 | 0.4271 | -1028.9 | -376.9 | |
| 0.00 | 7.08 | 0.00 | 3.87 | -7.06 | 237.48 | -22.61 | 114.75 | 0.4220 | -289.0 | -459.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -8.55 | 237.39 | -22.70 | 117.83 | 0.4334 | -489.0 | -341.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.97 | 237.46 | -22.63 | 112.35 | 0.4155 | 633.0 | 380.5 | |
| 5.09 | 7.36 | 2.82 | 4.08 | -10.09 | 237.05 | -23.05 | 120.56 | 0.4494 | -1000.3 | -689.4 | |
| 1.54 | -53.00 | 0.84 | -53.00 | -6.94 | 237.12 | -22.98 | 114.16 | 0.4264 | -684.2 | 999999 | |
| 5.18 | -53.00 | 2.84 | -53.00 | -7.59 | 237.05 | -23.05 | 115.49 | 0.4317 | -1052.8 | 999999 | |
| 1.36 | -53.00 | 0.74 | -53.00 | -5.73 | 237.11 | -22.98 | 111.51 | 0.4193 | 1046.0 | 999999 | |
| 0.27 | -53.00 | 0.15 | -53.00 | -5.89 | 237.00 | -23.09 | 111.76 | 0.4218 | 944.3 | 999999 | |
| 0.91 | -53.00 | 0.50 | -53.00 | -5.93 | 236.83 | -23.26 | 111.70 | 0.4245 | 809.7 | 999999 | |
| 5.27 | -53.00 | 2.88 | -53.00 | -5.62 | 236.78 | -23.31 | 110.97 | 0.4235 | 854.4 | 999999 | |
| 4.36 | -53.00 | 2.39 | -53.00 | -7.01 | 236.65 | -23.45 | 113.89 | 0.4337 | -1201.5 | 999999 | |
| 0.82 | -53.00 | 0.45 | -53.00 | -6.02 | 236.66 | -23.43 | 111.76 | 0.4276 | 763.1 | 999999 | |
| 11.35 | -53.00 | 6.26 | -53.00 | -7.39 | 236.39 | -23.70 | 114.45 | 0.4398 | -1268.4 | 999999 | |
| 3.91 | -53.00 | 2.15 | -53.00 | -6.92 | 236.42 | -23.68 | 113.49 | 0.4365 | -1294.2 | 999999 | |
| 2.63 | -53.00 | 1.45 | -53.00 | -6.00 | 236.36 | -23.73 | 111.46 | 0.4318 | 587.6 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -10.01 | 236.07 | -24.02 | 119.41 | 0.4620 | -795.0 | -651.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.02 | 236.01 | -24.08 | 117.41 | 0.4558 | -632.0 | -401.5 | |
| 20.62 | -53.00 | 11.38 | -53.00 | -7.09 | 236.04 | -24.06 | 113.51 | 0.4429 | -1329.4 | 999999 | |
| 49.77 | -53.00 | 27.61 | -53.00 | -7.65 | 235.67 | -24.43 | 114.35 | 0.4517 | -1155.1 | 999999 | |
| 7.27 | -53.00 | 4.03 | -53.00 | -7.38 | 235.62 | -24.48 | 113.74 | 0.4507 | -1091.6 | 999999 | |
| 4.09 | -53.00 | 2.27 | -53.00 | -6.74 | 235.11 | -24.98 | 112.01 | 0.4542 | -1212.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -10.11 | 234.80 | -25.29 | 118.36 | 0.4799 | -621.0 | -530.8 | |
| 1.82 | -53.00 | 1.01 | -53.00 | -6.99 | 234.99 | -25.10 | 112.43 | 0.4573 | -1134.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -9.92 | 234.78 | -25.31 | 117.99 | 0.4788 | -923.0 | -810.1 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -5.26 | 235.08 | -25.01 | 108.89 | 0.4468 | -787.0 | -579.4 | |
| 1.27 | -53.00 | 0.71 | -53.00 | -5.94 | 234.95 | -25.14 | 110.23 | 0.4522 | -929.1 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -9.86 | 234.58 | -25.51 | 117.70 | 0.4811 | -738.0 | -588.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -7.34 | 234.74 | -25.36 | 112.93 | 0.4631 | -678.0 | -579.6 | |
| 13.81 | -53.00 | 7.69 | -53.00 | -6.53 | 234.75 | -25.34 | 111.30 | 0.4583 | -1137.4 | 999999 | |
| 0.82 | -53.00 | 0.45 | -53.00 | -5.67 | 234.76 | -25.33 | 109.52 | 0.4536 | -812.0 | 999999 | |
| 2.27 | -53.00 | 1.26 | -53.00 | -6.01 | 234.68 | -25.42 | 110.17 | 0.4566 | -1093.1 | 999999 | |
| 1.45 | -53.00 | 0.81 | -53.00 | -7.06 | 234.62 | -25.48 | 112.28 | 0.4632 | -764.7 | 999999 | |
| 4.45 | -53.00 | 2.48 | -53.00 | -6.78 | 234.63 | -25.46 | 111.72 | 0.4614 | -849.9 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -9.24 | 234.36 | -25.73 | 116.33 | 0.4801 | -899.0 | -782.3 | |
| 2.36 | -53.00 | 1.32 | -53.00 | -6.16 | 234.53 | -25.56 | 110.39 | 0.4595 | -869.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -9.25 | 234.15 | -25.94 | 116.16 | 0.4830 | -718.0 | -556.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -9.06 | 234.13 | -25.96 | 115.80 | 0.4820 | -996.0 | -875.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.54 | 234.27 | -25.82 | 110.97 | 0.4653 | -627.0 | -483.8 | |
| 0.45 | 2.36 | 0.26 | 1.33 | -8.81 | 234.09 | -26.01 | 115.28 | 0.4811 | -958.2 | -815.5 | |
| 0.00 | 5.72 | 0.00 | 3.21 | -7.47 | 234.18 | -25.91 | 112.76 | 0.4718 | -624.0 | -588.6 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -8.44 | 234.01 | -26.08 | 114.51 | 0.4799 | -826.0 | -618.3 | |
| 0.00 | 3.27 | 0.00 | 1.83 | -5.56 | 234.12 | -25.97 | 108.85 | 0.4625 | -795.0 | -587.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -9.04 | 233.86 | -26.23 | 115.52 | 0.4856 | -658.0 | -575.6 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -9.26 | 233.81 | -26.28 | 115.89 | 0.4878 | -661.0 | -524.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.98 | 233.87 | -26.22 | 113.50 | 0.4791 | -707.0 | -537.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -6.95 | 233.94 | -26.15 | 111.54 | 0.4723 | -661.0 | -506.2 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -7.14 | 233.86 | -26.23 | 111.86 | 0.4745 | -539.0 | -460.4 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -8.29 | 233.71 | -26.38 | 113.98 | 0.4832 | -768.0 | -636.0 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -8.83 | 233.46 | -26.63 | 114.80 | 0.4899 | -558.0 | -407.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -8.96 | 233.35 | -26.74 | 114.95 | 0.4922 | -662.0 | -593.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.99 | 233.17 | -26.92 | 114.87 | 0.4949 | -455.0 | -408.3 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -8.34 | 233.19 | -26.90 | 113.66 | 0.4907 | -362.0 | -466.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -8.62 | 233.07 | -27.03 | 114.09 | 0.4941 | -703.0 | -633.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.73 | 232.55 | -27.54 | 115.72 | 0.5078 | -686.0 | -515.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
