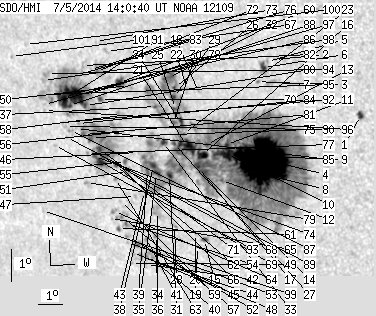

SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 335.13 | 1678.45 | 224.18 | 1124.12 | -7.71 | 219.36 | -40.73 | 105.45 | 0.6723 | 198.1 | 3.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 4.63 | 1.71 | 2.82 | -6.50 | 225.89 | -34.20 | 106.08 | 0.5833 | 867.3 | 603.3 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -4.88 | 222.76 | -37.33 | 102.24 | 0.6205 | -629.0 | -496.1 | |
| 0.00 | 5.36 | 0.00 | 3.39 | -5.60 | 222.59 | -37.50 | 103.31 | 0.6248 | -492.0 | -166.6 | |
| 130.15 | 1193.45 | 83.55 | 781.06 | -8.02 | 222.21 | -37.89 | 106.91 | 0.6378 | 1202.1 | 193.1 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -4.95 | 222.48 | -37.61 | 102.26 | 0.6244 | -537.0 | -494.9 | |
| 3.63 | 6.90 | 2.31 | 4.38 | -5.14 | 222.32 | -37.78 | 102.51 | 0.6272 | -691.8 | -513.6 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -5.58 | 222.05 | -38.04 | 103.11 | 0.6320 | 380.0 | 383.9 | |
| 17.35 | -4.00 | 11.28 | -4.00 | -8.36 | 221.38 | -38.71 | 107.08 | 0.6496 | 851.8 | 999999 | |
| 12.62 | -4.00 | 8.23 | -4.00 | -7.91 | 221.08 | -39.02 | 106.29 | 0.6519 | 828.2 | 999999 | |
| 9.63 | -4.00 | 6.31 | -4.00 | -7.89 | 220.64 | -39.45 | 106.10 | 0.6574 | 724.9 | 999999 | |
| 1.00 | -4.00 | 0.65 | -4.00 | -7.58 | 220.64 | -39.46 | 105.64 | 0.6564 | 695.5 | 999999 | |
| 0.91 | -4.00 | 0.60 | -4.00 | -8.71 | 220.30 | -39.80 | 107.17 | 0.6644 | 463.2 | 999999 | |
| 1.73 | -4.00 | 1.14 | -4.00 | -7.61 | 219.83 | -40.26 | 105.39 | 0.6667 | 383.4 | 999999 | |
| 6.45 | -4.00 | 4.30 | -4.00 | -8.52 | 219.64 | -40.46 | 106.64 | 0.6720 | -474.5 | 999999 | |
| 1.63 | 3.00 | 1.11 | 2.03 | -10.59 | 219.33 | -40.76 | 109.47 | 0.6830 | 614.6 | 488.5 | |
| 8.36 | -4.00 | 5.56 | -4.00 | -7.93 | 219.63 | -40.46 | 105.78 | 0.6702 | 740.9 | 999999 | |
| 1.18 | -4.00 | 0.79 | -4.00 | -8.34 | 219.41 | -40.68 | 106.30 | 0.6742 | -918.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -5.98 | 219.67 | -40.42 | 102.93 | 0.6639 | -480.0 | -434.7 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -10.83 | 219.00 | -41.09 | 109.66 | 0.6878 | 331.0 | 294.1 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -10.42 | 218.99 | -41.10 | 109.08 | 0.6865 | 370.0 | 331.1 | |
| 15.89 | -4.00 | 10.67 | -4.00 | -7.71 | 219.04 | -41.05 | 105.25 | 0.6768 | 730.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -5.93 | 219.23 | -40.86 | 102.73 | 0.6694 | -673.0 | -581.1 | |
| 0.36 | -4.00 | 0.24 | -4.00 | -7.31 | 218.93 | -41.17 | 104.63 | 0.6771 | 645.8 | 999999 | |
| 3.81 | -4.00 | 2.56 | -4.00 | -7.00 | 218.88 | -41.21 | 104.17 | 0.6768 | 724.7 | 999999 | |
| 2.09 | -4.00 | 1.40 | -4.00 | -6.54 | 218.68 | -41.41 | 103.45 | 0.6779 | 665.8 | 999999 | |
| 1.09 | -4.00 | 0.73 | -4.00 | -5.89 | 218.71 | -41.39 | 102.51 | 0.6759 | 563.1 | 999999 | |
| 1.45 | -4.00 | 0.98 | -4.00 | -7.63 | 218.52 | -41.57 | 104.96 | 0.6831 | 452.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.37 | -10.20 | 218.15 | -41.94 | 108.45 | 0.6957 | -18.0 | 70.0 | |
| 2.82 | -4.00 | 1.89 | -4.00 | -6.20 | 218.64 | -41.46 | 102.94 | 0.6776 | 778.4 | 999999 | |
| 1.36 | -4.00 | 0.92 | -4.00 | -6.98 | 218.55 | -41.54 | 104.04 | 0.6808 | 457.2 | 999999 | |
| 2.72 | -4.00 | 1.86 | -4.00 | -8.64 | 218.18 | -41.91 | 106.28 | 0.6903 | -865.9 | 999999 | |
| 8.36 | -4.00 | 5.61 | -4.00 | -5.59 | 218.49 | -41.61 | 102.01 | 0.6779 | -518.3 | 999999 | |
| 2.54 | -4.00 | 1.73 | -4.00 | -7.62 | 218.07 | -42.03 | 104.79 | 0.6886 | 640.8 | 999999 | |
| 0.00 | 11.72 | 0.00 | 8.12 | -9.79 | 217.51 | -42.59 | 107.63 | 0.7020 | -469.0 | -457.4 | |
| 3.36 | -4.00 | 2.31 | -4.00 | -8.60 | 217.64 | -42.45 | 106.03 | 0.6966 | -1060.6 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.22 | -10.55 | 217.34 | -42.76 | 108.61 | 0.7065 | -499.0 | -448.7 | |
| 0.91 | 45.32 | 0.62 | 30.82 | -6.51 | 217.86 | -42.23 | 103.15 | 0.6881 | 205.7 | -139.6 | |
| 3.63 | -4.00 | 2.50 | -4.00 | -8.35 | 217.55 | -42.54 | 105.66 | 0.6970 | -876.2 | 999999 | |
| 2.27 | -4.00 | 1.57 | -4.00 | -8.52 | 217.28 | -42.82 | 105.80 | 0.7008 | -859.4 | 999999 | |
| 0.54 | 6.18 | 0.39 | 4.35 | -11.20 | 216.79 | -43.30 | 109.29 | 0.7151 | -879.2 | -764.4 | |
| 0.00 | 2.18 | 0.00 | 1.53 | -10.66 | 216.89 | -43.20 | 108.60 | 0.7121 | -753.0 | -636.9 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -11.48 | 216.74 | -43.36 | 109.65 | 0.7167 | -262.0 | -291.9 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -9.18 | 217.05 | -43.04 | 106.64 | 0.7055 | -705.0 | -633.6 | |
| 0.00 | 2.72 | 0.00 | 1.93 | -11.24 | 216.53 | -43.57 | 109.24 | 0.7183 | -651.0 | -641.9 | |
| 1.73 | 4.18 | 1.22 | 2.96 | -10.86 | 216.47 | -43.63 | 108.72 | 0.7177 | -856.8 | -690.8 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -7.97 | 216.93 | -43.16 | 104.92 | 0.7034 | -571.0 | -546.6 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -9.36 | 216.64 | -43.45 | 106.73 | 0.7109 | -682.0 | -571.2 | |
| 0.00 | 2.45 | 0.00 | 1.75 | -11.13 | 216.20 | -43.89 | 108.97 | 0.7216 | -463.0 | -447.5 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -11.48 | 216.09 | -44.00 | 109.39 | 0.7240 | -491.0 | -416.3 | |
| 0.00 | 5.45 | 0.00 | 3.77 | -5.91 | 216.79 | -43.30 | 101.99 | 0.6997 | -665.0 | -615.6 | |
| 0.00 | 5.27 | 0.00 | 3.70 | -8.59 | 216.42 | -43.67 | 105.60 | 0.7112 | -641.0 | -616.1 | |
| 0.00 | 2.00 | 0.00 | 1.42 | -10.63 | 216.08 | -44.01 | 108.26 | 0.7214 | -692.0 | -563.0 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -10.82 | 216.04 | -44.05 | 108.50 | 0.7224 | -471.0 | -397.3 | |
| 0.64 | 3.54 | 0.45 | 2.52 | -10.22 | 216.11 | -43.98 | 107.72 | 0.7198 | -798.3 | -701.6 | |
| 1.27 | 2.72 | 0.89 | 1.91 | -8.28 | 216.38 | -43.72 | 105.16 | 0.7108 | -814.3 | -705.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -7.34 | 216.42 | -43.68 | 103.89 | 0.7078 | 318.0 | 245.1 | |
| 0.00 | 6.18 | 0.00 | 4.40 | -10.01 | 215.93 | -44.16 | 107.37 | 0.7212 | -820.0 | -617.9 | |
| 0.00 | 5.90 | 0.00 | 4.12 | -6.85 | 216.39 | -43.70 | 103.20 | 0.7069 | -600.0 | -568.4 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -9.51 | 215.97 | -44.12 | 106.71 | 0.7192 | -327.0 | -319.2 | |
| 5.90 | 8.72 | 4.11 | 6.06 | -5.83 | 216.42 | -43.68 | 101.78 | 0.7041 | -878.4 | -708.4 | |
| 1.00 | 2.27 | 0.72 | 1.63 | -10.39 | 215.73 | -44.36 | 107.82 | 0.7246 | -566.5 | -448.4 | |
| 1.27 | 123.89 | 0.90 | 88.21 | -8.42 | 215.93 | -44.17 | 105.22 | 0.7166 | -698.7 | -528.9 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -8.83 | 215.87 | -44.23 | 105.75 | 0.7184 | -723.0 | -623.8 | |
| 0.00 | 3.18 | 0.00 | 2.28 | -9.86 | 215.65 | -44.44 | 107.08 | 0.7239 | -558.0 | -463.6 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -10.09 | 215.44 | -44.65 | 107.31 | 0.7271 | -214.0 | -224.5 | |
| 0.27 | -62.00 | 0.19 | -62.00 | -8.09 | 215.63 | -44.46 | 104.68 | 0.7192 | -1006.0 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.90 | -4.89 | 215.95 | -44.14 | 100.35 | 0.7077 | -620.0 | -617.1 | |
| 1.82 | -62.00 | 1.30 | -62.00 | -8.19 | 215.40 | -44.70 | 104.74 | 0.7222 | -933.2 | 999999 | |
| 5.90 | -62.00 | 4.22 | -62.00 | -8.32 | 215.29 | -44.80 | 104.89 | 0.7237 | -753.4 | 999999 | |
| 2.00 | 5.09 | 1.41 | 3.59 | -6.39 | 215.54 | -44.55 | 102.32 | 0.7159 | -845.7 | -649.1 | |
| 3.63 | -62.00 | 2.60 | -62.00 | -7.95 | 215.30 | -44.79 | 104.38 | 0.7226 | -935.6 | 999999 | |
| 1.09 | 14.08 | 0.77 | 9.92 | -5.53 | 215.46 | -44.63 | 101.12 | 0.7149 | -919.2 | -596.5 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -4.60 | 215.50 | -44.59 | 99.84 | 0.7125 | -514.0 | -436.4 | |
| 1.00 | -62.00 | 0.72 | -62.00 | -8.17 | 215.05 | -45.04 | 104.62 | 0.7262 | -553.8 | 999999 | |
| 4.00 | -62.00 | 2.87 | -62.00 | -7.59 | 215.00 | -45.09 | 103.81 | 0.7252 | -927.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -5.48 | 215.21 | -44.89 | 100.98 | 0.7179 | -714.0 | -581.0 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -8.09 | 214.76 | -45.34 | 104.42 | 0.7294 | -389.0 | -303.4 | |
| 2.36 | 129.43 | 1.69 | 93.38 | -6.26 | 214.95 | -45.14 | 101.99 | 0.7227 | -983.4 | -488.7 | |
| 0.00 | 1.91 | 0.00 | 1.39 | -9.00 | 214.57 | -45.52 | 105.58 | 0.7339 | -611.0 | -509.9 | |
| 2.18 | -78.00 | 1.56 | -78.00 | -6.60 | 214.87 | -45.23 | 102.44 | 0.7244 | -879.0 | 999999 | |
| 2.09 | -62.00 | 1.51 | -62.00 | -7.51 | 214.66 | -45.43 | 103.61 | 0.7290 | -748.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.36 | -5.37 | 214.87 | -45.22 | 100.75 | 0.7217 | -525.0 | -496.8 | |
| 0.00 | 1.63 | 0.00 | 1.17 | -5.61 | 214.84 | -45.25 | 101.09 | 0.7225 | -735.0 | -604.6 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -7.17 | 214.49 | -45.61 | 103.11 | 0.7302 | -770.0 | -721.1 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -7.33 | 214.38 | -45.72 | 103.29 | 0.7319 | -541.0 | -575.2 | |
| 29.88 | -78.00 | 21.56 | -78.00 | -6.25 | 214.38 | -45.71 | 101.84 | 0.7293 | -908.7 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.52 | -7.41 | 214.10 | -45.99 | 103.32 | 0.7352 | -578.0 | -544.4 | |
| 2.27 | -78.00 | 1.65 | -78.00 | -6.63 | 214.16 | -45.93 | 102.29 | 0.7328 | -771.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -7.63 | 213.89 | -46.20 | 103.56 | 0.7382 | -462.0 | -398.7 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -7.29 | 213.89 | -46.20 | 103.11 | 0.7373 | -434.0 | -334.3 | |
| 14.17 | -78.00 | 10.32 | -78.00 | -6.46 | 213.91 | -46.18 | 101.99 | 0.7352 | -566.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -7.17 | 213.78 | -46.32 | 102.92 | 0.7384 | -408.0 | -332.9 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -7.91 | 213.31 | -46.78 | 103.76 | 0.7454 | -365.0 | -311.8 | |
| 0.00 | 4.54 | 0.00 | 3.34 | -5.68 | 213.29 | -46.81 | 100.81 | 0.7408 | 64.0 | 52.5 | |
| 0.00 | 17.44 | 0.00 | 12.87 | -6.33 | 213.17 | -46.93 | 101.65 | 0.7436 | 47.0 | -19.9 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -6.83 | 213.01 | -47.08 | 102.27 | 0.7464 | -194.0 | -138.9 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -6.65 | 213.04 | -47.06 | 102.03 | 0.7457 | 212.0 | 208.2 | |
| 0.00 | 2.45 | 0.00 | 1.81 | -5.90 | 213.08 | -47.01 | 101.06 | 0.7437 | 218.0 | 150.7 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -9.97 | 212.41 | -47.69 | 106.19 | 0.7606 | -335.0 | -401.7 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -4.82 | 212.38 | -47.72 | 99.47 | 0.7497 | -526.0 | -435.8 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -5.22 | 211.69 | -48.40 | 99.86 | 0.7581 | -333.0 | -265.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
