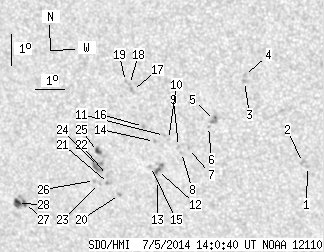

SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.99 | 72.28 | 5.42 | 42.29 | -15.62 | 233.94 | -26.15 | 127.06 | 0.5328 | 138.6 | -52.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.81 | -15.70 | 240.13 | -19.96 | 134.49 | 0.4626 | 732.0 | 600.1 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -15.58 | 239.98 | -20.12 | 134.07 | 0.4630 | 793.0 | 612.3 | |
| 0.00 | 2.36 | 0.00 | 1.31 | -13.02 | 238.28 | -21.82 | 127.48 | 0.4581 | 690.0 | 568.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -12.83 | 238.29 | -21.80 | 127.16 | 0.4562 | 850.0 | 748.6 | |
| 0.00 | 4.18 | 0.00 | 2.36 | -14.29 | 237.13 | -22.97 | 128.28 | 0.4836 | 753.0 | 637.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -14.49 | 236.90 | -23.19 | 128.34 | 0.4881 | 525.0 | 414.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.21 | 236.13 | -23.97 | 128.63 | 0.5038 | 867.0 | 717.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -15.34 | 235.87 | -24.23 | 128.56 | 0.5080 | 711.0 | 551.7 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -15.15 | 235.79 | -24.31 | 128.16 | 0.5073 | 799.0 | 596.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.94 | 235.47 | -24.63 | 127.46 | 0.5092 | 839.0 | 550.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.81 | 235.34 | -24.75 | 127.12 | 0.5096 | 850.0 | 594.8 | |
| 1.54 | 5.90 | 0.90 | 3.43 | -15.95 | 234.95 | -25.14 | 128.50 | 0.5240 | 705.7 | 635.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -16.27 | 234.91 | -25.19 | 128.96 | 0.5274 | 430.0 | 363.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -15.01 | 234.97 | -25.12 | 127.05 | 0.5158 | 661.0 | 578.6 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -15.82 | 234.72 | -25.37 | 128.07 | 0.5256 | -214.0 | -174.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.54 | 234.65 | -25.45 | 125.94 | 0.5157 | 763.0 | 614.4 | |
| 0.00 | 2.63 | 0.00 | 1.51 | -13.40 | 234.40 | -25.69 | 123.80 | 0.5095 | 703.0 | 606.0 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -13.21 | 234.32 | -25.77 | 123.40 | 0.5091 | 840.0 | 675.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -13.12 | 234.19 | -25.90 | 123.12 | 0.5100 | 669.0 | 495.0 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -16.76 | 233.49 | -26.60 | 128.23 | 0.5479 | -904.0 | -756.8 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -16.41 | 233.15 | -26.94 | 127.37 | 0.5489 | -850.0 | -682.9 | |
| 0.00 | 2.63 | 0.00 | 1.56 | -16.15 | 233.15 | -26.94 | 126.98 | 0.5468 | -849.0 | -527.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -16.42 | 232.83 | -27.26 | 127.06 | 0.5528 | -776.0 | -604.9 | |
| 0.00 | 9.90 | 0.00 | 5.85 | -15.87 | 232.88 | -27.22 | 126.27 | 0.5478 | -962.0 | -873.0 | |
| 2.27 | 5.18 | 1.34 | 3.05 | -15.39 | 232.91 | -27.18 | 125.56 | 0.5435 | -967.4 | -731.0 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -16.33 | 232.66 | -27.43 | 126.76 | 0.5539 | -592.0 | -495.9 | |
| 1.18 | 11.99 | 0.72 | 7.36 | -17.15 | 229.98 | -30.11 | 125.54 | 0.5914 | -869.3 | -632.2 | |
| 4.00 | -27.00 | 2.46 | -27.00 | -17.16 | 229.72 | -30.37 | 125.33 | 0.5944 | -798.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
