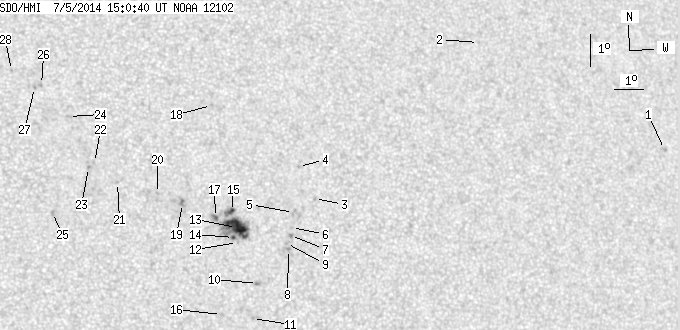

SDO HMI 2014-07-05 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.25 | 95.99 | 13.98 | 51.25 | 11.34 | 279.81 | 20.27 | 293.16 | 0.3709 | -581.4 | -497.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.29 | 12.90 | 295.30 | 35.76 | 287.23 | 0.5986 | -650.0 | -542.8 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 16.43 | 288.92 | 29.38 | 296.41 | 0.5275 | -584.0 | -408.8 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 11.75 | 282.58 | 23.04 | 291.48 | 0.4135 | -722.0 | -567.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 12.75 | 282.13 | 22.59 | 294.13 | 0.4123 | -743.0 | -576.6 | |
| 0.00 | 2.72 | 0.00 | 1.47 | 11.33 | 281.83 | 22.29 | 291.07 | 0.4003 | -774.0 | -667.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 10.88 | 281.73 | 22.19 | 290.05 | 0.3965 | -848.0 | -696.0 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 10.63 | 281.68 | 22.14 | 289.49 | 0.3945 | -1024.0 | -785.7 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 10.20 | 281.58 | 22.04 | 288.51 | 0.3911 | -854.0 | -749.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 10.39 | 281.52 | 21.98 | 289.01 | 0.3911 | -1040.0 | -791.3 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 9.18 | 280.48 | 20.94 | 286.66 | 0.3698 | -1046.0 | -839.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.12 | 280.25 | 20.71 | 283.95 | 0.3623 | -797.0 | -695.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 10.45 | 279.90 | 20.36 | 290.43 | 0.3667 | -515.0 | -455.1 | |
| 22.98 | 46.50 | 12.24 | 24.76 | 10.92 | 279.90 | 20.36 | 291.62 | 0.3690 | -1106.4 | -699.1 | |
| 0.91 | -13.00 | 0.48 | -13.00 | 10.61 | 279.78 | 20.24 | 290.93 | 0.3656 | -1023.4 | 999999 | |
| 2.36 | 6.63 | 1.26 | 3.53 | 11.41 | 279.77 | 20.23 | 293.00 | 0.3698 | -868.3 | -775.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 8.26 | 279.24 | 19.70 | 284.96 | 0.3468 | -497.0 | -587.6 | |
| 0.00 | 5.36 | 0.00 | 2.84 | 11.24 | 279.23 | 19.69 | 293.07 | 0.3607 | -1104.0 | -927.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 14.70 | 279.39 | 19.85 | 301.38 | 0.3863 | -678.0 | -686.2 | |
| 0.00 | 3.63 | 0.00 | 1.92 | 11.69 | 278.17 | 18.63 | 295.34 | 0.3477 | -1037.0 | -842.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.01 | 277.38 | 17.84 | 297.13 | 0.3381 | -644.0 | -532.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 12.38 | 276.10 | 16.56 | 299.80 | 0.3221 | 487.0 | 361.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.01 | 275.39 | 15.85 | 302.58 | 0.3172 | 890.0 | 703.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 12.85 | 275.18 | 15.65 | 302.48 | 0.3130 | 958.0 | 867.2 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 14.44 | 274.64 | 15.10 | 307.63 | 0.3200 | 831.0 | 669.4 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 11.49 | 273.94 | 14.40 | 300.48 | 0.2841 | 930.0 | 698.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.45 | 273.83 | 14.29 | 311.64 | 0.3198 | 763.0 | 600.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.36 | 273.60 | 14.06 | 311.87 | 0.3160 | 897.0 | 844.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 15.90 | 272.89 | 13.35 | 314.61 | 0.3132 | 708.0 | 612.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
