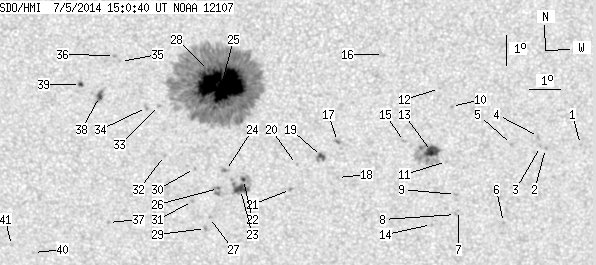

SDO HMI 2014-07-05 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.51 | 713.73 | 64.85 | 384.10 | -19.26 | 256.47 | -3.07 | 172.39 | 0.3908 | 808.2 | 348.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.84 | 267.59 | 8.05 | 197.74 | 0.4312 | 674.0 | 635.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.96 | 266.44 | 6.90 | 195.27 | 0.4280 | 848.0 | 712.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.89 | 266.28 | 6.74 | 194.96 | 0.4262 | 773.0 | 584.7 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -20.56 | 266.20 | 6.66 | 195.01 | 0.4208 | 854.0 | 719.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.82 | 265.32 | 5.78 | 192.97 | 0.4214 | 877.0 | 737.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.45 | 265.16 | 5.62 | 191.28 | 0.4613 | 712.0 | 555.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -23.03 | 263.65 | 4.11 | 188.45 | 0.4508 | 722.0 | 595.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.17 | 263.55 | 4.01 | 188.21 | 0.4527 | 765.0 | 593.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.49 | 263.53 | 3.99 | 188.41 | 0.4421 | 903.0 | 753.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.54 | 263.33 | 3.79 | 189.10 | 0.3953 | 779.0 | 682.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.37 | 263.21 | 3.67 | 188.11 | 0.4240 | 729.0 | 481.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -18.94 | 262.93 | 3.39 | 188.39 | 0.3848 | 709.0 | 546.5 | |
| 9.90 | 40.23 | 5.39 | 21.94 | -21.04 | 262.71 | 3.17 | 187.13 | 0.4176 | 1046.8 | 336.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.51 | 262.76 | 3.22 | 186.52 | 0.4563 | -752.0 | -598.8 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -20.70 | 261.82 | 2.28 | 185.23 | 0.4107 | 975.0 | 640.4 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -17.82 | 261.11 | 1.57 | 184.14 | 0.3635 | 725.0 | 557.2 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -20.69 | 259.64 | 0.10 | 180.23 | 0.4090 | -973.0 | -813.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.90 | 259.64 | 0.10 | 180.22 | 0.4282 | 848.0 | 645.7 | |
| 2.54 | 5.36 | 1.38 | 2.92 | -21.19 | 259.12 | -0.42 | 179.05 | 0.4170 | 964.2 | 705.5 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -21.46 | 258.30 | -1.24 | 177.24 | 0.4217 | -651.0 | -596.4 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -22.30 | 258.09 | -1.45 | 176.90 | 0.4352 | -860.0 | -711.2 | |
| 1.27 | 24.34 | 0.70 | 13.38 | -21.97 | 256.55 | -2.99 | 173.54 | 0.4319 | -954.9 | -617.7 | |
| 7.27 | -22.00 | 4.00 | -22.00 | -22.31 | 256.44 | -3.10 | 173.41 | 0.4374 | -980.2 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.69 | -21.67 | 255.96 | -3.58 | 172.19 | 0.4284 | -336.0 | -237.7 | |
| 94.36 | 582.31 | 50.58 | 312.22 | -18.80 | 255.90 | -3.64 | 170.95 | 0.3832 | 1458.9 | 430.7 | |
| 0.45 | 6.90 | 0.25 | 3.80 | -22.27 | 255.72 | -3.82 | 171.88 | 0.4384 | -977.0 | -750.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.26 | 255.39 | -4.15 | 171.55 | 0.4544 | -851.0 | -707.1 | |
| 1.27 | -25.00 | 0.68 | -25.00 | -18.35 | 255.50 | -4.04 | 169.73 | 0.3770 | 1347.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -23.64 | 255.24 | -4.30 | 171.39 | 0.4605 | -823.0 | -653.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.60 | 254.95 | -4.59 | 169.98 | 0.4298 | 670.0 | 557.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.72 | 254.84 | -4.70 | 170.24 | 0.4474 | -891.0 | -639.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.17 | 253.98 | -5.56 | 167.70 | 0.4261 | 698.0 | 569.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -19.51 | 253.88 | -5.66 | 166.52 | 0.4007 | 693.0 | 572.6 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -19.57 | 253.45 | -6.09 | 165.59 | 0.4034 | 699.0 | 594.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -18.06 | 252.67 | -6.87 | 162.67 | 0.3835 | -559.0 | -475.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -17.87 | 252.48 | -7.06 | 162.07 | 0.3814 | -918.0 | -821.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -23.45 | 252.01 | -7.53 | 165.05 | 0.4679 | -677.0 | -569.2 | |
| 2.18 | 7.45 | 1.18 | 4.03 | -19.22 | 251.94 | -7.60 | 161.94 | 0.4047 | -956.2 | -678.8 | |
| 1.27 | 2.82 | 0.69 | 1.52 | -18.83 | 251.34 | -8.20 | 160.28 | 0.4019 | -849.1 | -695.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.50 | 249.40 | -10.14 | 161.04 | 0.4949 | -714.0 | -612.1 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -24.27 | 248.67 | -10.87 | 159.61 | 0.4953 | -722.0 | -536.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
