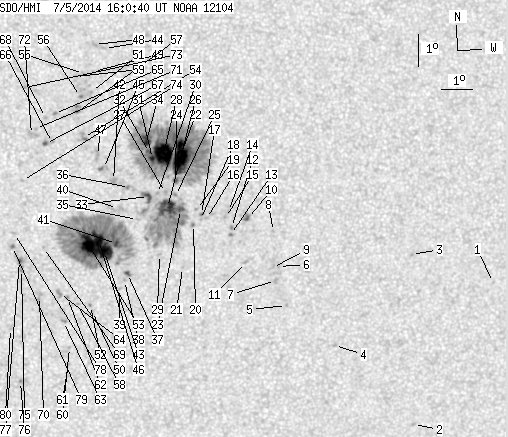

SDO HMI 2014-07-05 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156.19 | 979.28 | 81.25 | 509.59 | -11.67 | 268.35 | 9.36 | 211.76 | 0.3060 | 337.0 | 115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -14.55 | 279.99 | 21.01 | 228.83 | 0.4629 | 676.0 | 543.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -19.11 | 277.78 | 18.79 | 218.77 | 0.4880 | 914.0 | 710.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.60 | 277.17 | 18.19 | 226.44 | 0.4204 | 608.0 | 584.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -16.47 | 274.86 | 15.88 | 217.91 | 0.4288 | 672.0 | 571.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.15 | 273.19 | 14.20 | 216.89 | 0.3962 | 798.0 | 600.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.90 | 272.85 | 13.86 | 218.28 | 0.3771 | 767.0 | 672.2 | |
| 0.00 | 2.82 | 0.00 | 1.51 | -14.35 | 272.78 | 13.79 | 217.39 | 0.3820 | 825.0 | 640.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -12.78 | 272.62 | 13.64 | 219.78 | 0.3609 | 774.0 | 596.7 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -13.93 | 272.66 | 13.67 | 217.84 | 0.3755 | 734.0 | 686.5 | |
| 1.09 | 4.72 | 0.58 | 2.49 | -12.36 | 271.77 | 12.78 | 218.76 | 0.3467 | 996.7 | 842.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.76 | 271.78 | 12.79 | 216.31 | 0.3647 | 837.0 | 600.8 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -12.64 | 271.27 | 12.28 | 217.15 | 0.3452 | 1037.0 | 885.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -12.86 | 271.25 | 12.26 | 216.71 | 0.3479 | 890.0 | 739.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.13 | 271.15 | 12.17 | 217.81 | 0.3375 | 722.0 | 686.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -12.32 | 271.06 | 12.08 | 217.27 | 0.3391 | 828.0 | 697.0 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -12.34 | 270.46 | 11.47 | 215.82 | 0.3334 | 820.0 | 685.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -12.21 | 270.29 | 11.31 | 215.67 | 0.3301 | 972.0 | 795.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -12.37 | 270.27 | 11.28 | 215.32 | 0.3320 | 586.0 | 569.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.05 | 270.13 | 11.14 | 215.56 | 0.3264 | 754.0 | 564.2 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -12.52 | 270.05 | 11.07 | 214.53 | 0.3320 | 865.0 | 728.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -13.89 | 269.76 | 10.78 | 211.59 | 0.3481 | -726.0 | -551.9 | |
| 27.24 | 388.11 | 14.13 | 201.07 | -10.34 | 269.56 | 10.57 | 217.45 | 0.2982 | 1359.8 | 452.4 | |
| 2.54 | 158.91 | 1.33 | 83.12 | -12.04 | 269.62 | 10.64 | 214.32 | 0.3215 | 969.8 | 269.3 | |
| 1.36 | -22.00 | 0.71 | -22.00 | -11.13 | 269.43 | 10.44 | 215.54 | 0.3073 | 881.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -11.60 | 269.45 | 10.46 | 214.69 | 0.3138 | 897.0 | 694.3 | |
| 17.62 | -23.00 | 9.20 | -23.00 | -11.98 | 269.21 | 10.22 | 213.39 | 0.3167 | 1071.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -11.50 | 269.13 | 10.14 | 214.05 | 0.3095 | 971.0 | 825.6 | |
| 32.42 | -22.00 | 16.79 | -22.00 | -10.28 | 269.02 | 10.04 | 216.17 | 0.2918 | 1456.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -13.46 | 269.01 | 10.03 | 210.42 | 0.3358 | -878.0 | -705.7 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -11.53 | 268.87 | 9.89 | 213.33 | 0.3076 | 1035.0 | 780.3 | |
| 2.82 | -22.00 | 1.46 | -22.00 | -10.43 | 268.68 | 9.70 | 214.92 | 0.2906 | 1255.8 | 999999 | |
| 1.09 | -22.00 | 0.56 | -22.00 | -10.24 | 268.58 | 9.60 | 215.03 | 0.2871 | 1175.6 | 999999 | |
| 3.45 | -23.00 | 1.80 | -23.00 | -11.62 | 268.59 | 9.61 | 212.42 | 0.3063 | 1115.0 | 999999 | |
| 8.72 | -22.00 | 4.50 | -22.00 | -9.86 | 268.48 | 9.49 | 215.51 | 0.2809 | 1313.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.35 | 268.27 | 9.29 | 210.31 | 0.3137 | 91.0 | 28.6 | |
| 0.00 | 3.18 | 0.00 | 1.65 | -11.33 | 267.99 | 9.00 | 211.26 | 0.2968 | 729.0 | 645.7 | |
| 1.18 | 3.00 | 0.62 | 1.58 | -14.06 | 268.02 | 9.03 | 207.04 | 0.3364 | -959.7 | -752.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.28 | 267.93 | 8.94 | 206.51 | 0.3391 | -815.0 | -672.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.54 | 267.78 | 8.80 | 205.79 | 0.3417 | -804.0 | -599.6 | |
| 0.00 | 8.26 | 0.00 | 4.29 | -11.99 | 267.63 | 8.64 | 209.13 | 0.3033 | -270.0 | -336.3 | |
| 2.27 | 292.31 | 1.19 | 152.40 | -13.10 | 267.63 | 8.65 | 207.41 | 0.3195 | -1218.6 | -513.8 | |
| 0.00 | 4.90 | 0.00 | 2.54 | -11.11 | 267.48 | 8.49 | 210.20 | 0.2893 | 791.0 | 691.2 | |
| 18.98 | -41.00 | 9.92 | -41.00 | -13.35 | 267.26 | 8.28 | 206.04 | 0.3204 | -1180.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.98 | 267.10 | 8.12 | 218.11 | 0.2281 | 819.0 | 695.3 | |
| 0.00 | 4.09 | 0.00 | 2.11 | -10.73 | 267.15 | 8.17 | 209.92 | 0.2810 | 887.0 | 741.7 | |
| 11.35 | -41.00 | 5.92 | -41.00 | -12.97 | 267.06 | 8.07 | 206.03 | 0.3133 | -1603.8 | 999999 | |
| 0.00 | 4.99 | 0.00 | 2.57 | -10.32 | 266.95 | 7.97 | 210.07 | 0.2734 | 927.0 | 727.5 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -6.86 | 266.79 | 7.81 | 217.37 | 0.2232 | 919.0 | 771.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -7.69 | 266.77 | 7.79 | 215.13 | 0.2345 | 794.0 | 562.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.27 | 266.95 | 7.96 | 202.76 | 0.3470 | -497.0 | -300.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.31 | 266.72 | 7.74 | 213.47 | 0.2427 | 803.0 | 614.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.07 | 266.88 | 7.89 | 202.80 | 0.3436 | -699.0 | -546.1 | |
| 21.52 | -41.00 | 11.22 | -41.00 | -13.12 | 266.75 | 7.76 | 204.94 | 0.3134 | -1359.8 | 999999 | |
| 0.00 | 5.90 | 0.00 | 3.03 | -9.75 | 266.50 | 7.52 | 209.71 | 0.2614 | 928.0 | 771.9 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -7.75 | 266.47 | 7.48 | 213.90 | 0.2323 | 953.0 | 697.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.47 | 266.38 | 7.40 | 211.96 | 0.2417 | 1108.0 | 962.6 | |
| 0.54 | 4.45 | 0.28 | 2.27 | -8.93 | 266.30 | 7.31 | 210.66 | 0.2477 | 1123.7 | 919.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.00 | 266.46 | 7.48 | 201.79 | 0.3400 | -778.0 | -566.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.84 | 266.22 | 7.23 | 212.80 | 0.2313 | 914.0 | 784.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -16.42 | 266.26 | 7.27 | 199.77 | 0.3604 | -1042.0 | -853.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -16.94 | 266.24 | 7.26 | 199.24 | 0.3683 | -430.0 | -417.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.81 | 266.14 | 7.15 | 201.15 | 0.3350 | -852.0 | -655.5 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -15.58 | 266.03 | 7.05 | 200.05 | 0.3463 | -1006.0 | -840.5 | |
| 0.00 | 3.81 | 0.00 | 2.00 | -14.68 | 265.88 | 6.89 | 200.59 | 0.3315 | -1161.0 | -880.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -8.99 | 265.59 | 6.60 | 208.04 | 0.2426 | 988.0 | 851.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.90 | 265.54 | 6.56 | 206.19 | 0.2559 | 686.0 | 512.0 | |
| 0.91 | 2.36 | 0.47 | 1.21 | -9.93 | 265.32 | 6.34 | 205.38 | 0.2548 | 1008.6 | 807.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -9.11 | 265.31 | 6.32 | 206.79 | 0.2423 | 840.0 | 650.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.21 | 265.33 | 6.35 | 200.72 | 0.3055 | -761.0 | -554.9 | |
| 0.00 | 3.09 | 0.00 | 1.62 | -14.77 | 265.25 | 6.26 | 198.76 | 0.3294 | -775.0 | -694.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.45 | 265.00 | 6.02 | 205.06 | 0.2453 | 693.0 | 672.1 | |
| 0.00 | 7.81 | 0.00 | 3.99 | -9.64 | 264.88 | 5.90 | 204.30 | 0.2473 | 731.0 | 560.7 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.17 | 264.64 | 5.66 | 206.08 | 0.2230 | 967.0 | 865.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.08 | 264.63 | 5.64 | 201.19 | 0.2681 | 811.0 | 606.3 | |
| 0.00 | 2.91 | 0.00 | 1.51 | -13.90 | 264.66 | 5.67 | 197.94 | 0.3127 | -727.0 | -661.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.51 | 264.72 | 5.74 | 195.00 | 0.3699 | -832.0 | -736.1 | |
| 1.09 | 1.73 | 0.57 | 0.90 | -13.61 | 264.59 | 5.60 | 198.03 | 0.3078 | -998.1 | -757.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -12.75 | 264.41 | 5.42 | 198.41 | 0.2932 | -856.0 | -524.9 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -13.17 | 264.36 | 5.37 | 197.79 | 0.2995 | -1143.0 | -932.5 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.79 | 264.35 | 5.37 | 195.37 | 0.3412 | -619.0 | -626.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
