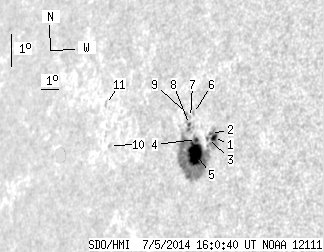

SDO HMI 2014-07-05 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.42 | 129.12 | 25.48 | 112.52 | 6.27 | 203.62 | -55.37 | 84.69 | 0.8235 | -651.6 | -158.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 115.60 | 2.39 | 100.27 | 6.60 | 204.56 | -54.43 | 84.27 | 0.8142 | -857.5 | -165.8 | |
| 0.27 | -1.00 | 0.23 | -1.00 | 6.71 | 204.38 | -54.61 | 84.13 | 0.8160 | -623.3 | 999999 | |
| 0.45 | -1.00 | 0.39 | -1.00 | 6.55 | 204.25 | -54.74 | 84.33 | 0.8173 | -545.4 | 999999 | |
| 1.63 | -1.00 | 1.42 | -1.00 | 6.50 | 203.66 | -55.32 | 84.41 | 0.8231 | -563.8 | 999999 | |
| 23.52 | -1.00 | 20.41 | -1.00 | 6.07 | 203.68 | -55.31 | 84.93 | 0.8230 | -797.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.27 | 7.28 | 203.36 | -55.62 | 83.46 | 0.8262 | -455.0 | -374.1 | |
| 0.00 | 0.64 | 0.00 | 0.56 | 7.15 | 203.22 | -55.76 | 83.62 | 0.8275 | -273.0 | -267.4 | |
| 0.73 | 6.90 | 0.64 | 6.06 | 6.94 | 203.20 | -55.78 | 83.88 | 0.8277 | -331.8 | -258.4 | |
| 0.00 | 1.63 | 0.00 | 1.44 | 7.26 | 202.98 | -56.01 | 83.49 | 0.8299 | -331.0 | -236.7 | |
| 0.00 | 1.36 | 0.00 | 1.36 | 6.07 | 198.69 | -60.30 | 84.91 | 0.8691 | 287.0 | 309.7 | |
| 0.00 | 1.54 | 0.00 | 1.56 | 7.31 | 198.18 | -60.80 | 83.49 | 0.8734 | 463.0 | 415.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
