SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.64 | 389.53 | 36.85 | 197.71 | 15.12 | 260.54 | 2.11 | 343.15 | 0.2153 | -300.3 | -217.6 | |
|
previous
or next observation for the same group /

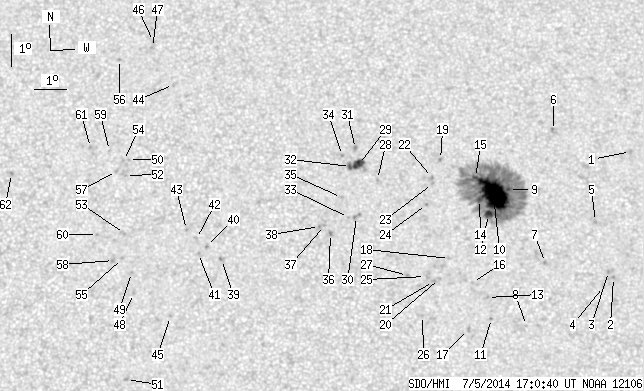

back to the solar disc SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.03 | 16.60 | 266.17 | 7.74 | 330.68 | 0.2646 | -817.0 | -691.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.69 | 265.49 | 7.06 | 323.62 | 0.2030 | -998.0 | -884.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.87 | 265.34 | 6.91 | 324.76 | 0.2040 | -968.0 | -816.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.41 | 265.17 | 6.74 | 324.05 | 0.1960 | -852.0 | -635.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.42 | 264.97 | 6.54 | 330.18 | 0.2229 | -1009.0 | -821.7 | |
| 0.00 | 2.72 | 0.00 | 1.40 | 17.27 | 263.72 | 5.29 | 339.92 | 0.2577 | -698.0 | -727.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.16 | 263.36 | 4.93 | 333.88 | 0.1910 | -1011.0 | -777.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 11.23 | 262.73 | 4.30 | 331.81 | 0.1564 | -885.0 | -610.8 | |
| 1.27 | 299.91 | 0.65 | 152.19 | 15.44 | 262.24 | 3.81 | 343.00 | 0.2201 | -837.2 | -375.5 | |
| 56.11 | -9.00 | 28.46 | -9.00 | 15.28 | 261.77 | 3.33 | 344.83 | 0.2154 | -1449.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.45 | 261.65 | 3.21 | 338.70 | 0.1520 | -925.0 | -712.8 | |
| 4.72 | -9.00 | 2.39 | -9.00 | 14.66 | 261.60 | 3.17 | 344.77 | 0.2044 | -1151.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.09 | 261.53 | 3.10 | 340.84 | 0.1618 | -980.0 | -801.2 | |
| 1.91 | -9.00 | 0.97 | -9.00 | 15.13 | 261.32 | 2.89 | 346.60 | 0.2109 | -854.3 | 999999 | |
| 1.09 | -9.00 | 0.55 | -9.00 | 15.82 | 261.20 | 2.77 | 347.84 | 0.2219 | -904.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.56 | 261.07 | 2.64 | 344.34 | 0.1671 | -864.0 | -639.2 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.11 | 260.93 | 2.50 | 342.46 | 0.1424 | 887.0 | 595.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.30 | 260.35 | 1.92 | 349.30 | 0.1768 | -669.0 | -459.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.38 | 260.10 | 1.67 | 352.94 | 0.2283 | 887.0 | 634.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.69 | 260.04 | 1.61 | 350.44 | 0.1653 | -1017.0 | -815.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.59 | 259.85 | 1.42 | 351.45 | 0.1632 | -905.0 | -848.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.82 | 259.84 | 1.41 | 353.74 | 0.2183 | 898.0 | 726.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.63 | 259.84 | 1.41 | 353.65 | 0.2151 | 901.0 | 733.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.98 | 259.65 | 1.21 | 354.20 | 0.2036 | -964.0 | -784.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.75 | 259.60 | 1.17 | 353.05 | 0.1653 | -557.0 | -592.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.55 | 259.50 | 1.07 | 352.70 | 0.1444 | -838.0 | -624.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.78 | 259.04 | 0.61 | 356.39 | 0.1650 | -1030.0 | -778.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.76 | 258.10 | -0.33 | 1.48 | 0.2160 | 810.0 | 652.8 | |
| 6.27 | 14.16 | 3.18 | 7.20 | 16.23 | 257.50 | -0.93 | 4.01 | 0.2245 | 1121.6 | 795.9 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 14.61 | 257.44 | -0.99 | 4.90 | 0.1969 | 766.0 | 630.8 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 16.73 | 257.40 | -1.03 | 4.26 | 0.2332 | 946.0 | 754.2 | |
| 1.27 | -29.00 | 0.65 | -29.00 | 16.17 | 257.24 | -1.19 | 5.13 | 0.2238 | 1061.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 14.58 | 257.19 | -1.24 | 6.15 | 0.1968 | 839.0 | 723.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.51 | 256.99 | -1.44 | 6.05 | 0.2301 | 906.0 | 708.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.20 | 256.96 | -1.47 | 6.86 | 0.2078 | 803.0 | 616.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 14.08 | 256.62 | -1.81 | 9.32 | 0.1896 | -895.0 | -737.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.33 | 256.43 | -2.00 | 10.05 | 0.1944 | 864.0 | 737.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.30 | 256.28 | -2.15 | 10.85 | 0.1944 | 968.0 | 804.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.27 | 253.21 | -5.22 | 27.17 | 0.1948 | 978.0 | 744.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.67 | 252.73 | -5.70 | 28.27 | 0.2047 | 927.0 | 767.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.45 | 252.48 | -5.95 | 29.83 | 0.2035 | 945.0 | 786.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.92 | 252.41 | -6.02 | 29.00 | 0.2110 | 869.0 | 660.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.19 | 252.09 | -6.35 | 29.61 | 0.2178 | 913.0 | 709.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.73 | 251.52 | -6.91 | 23.22 | 0.2903 | 841.0 | 490.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.50 | 251.65 | -6.78 | 39.12 | 0.1842 | 925.0 | 662.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 20.09 | 250.81 | -7.62 | 23.35 | 0.3157 | 700.0 | 578.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.90 | 250.78 | -7.65 | 23.68 | 0.3129 | 761.0 | 569.5 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 12.20 | 250.47 | -7.96 | 41.22 | 0.2063 | 718.0 | 438.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.85 | 250.39 | -8.04 | 39.47 | 0.2156 | 956.0 | 783.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.36 | 250.16 | -8.27 | 31.42 | 0.2658 | 757.0 | 538.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.56 | 250.32 | -8.11 | 51.98 | 0.1774 | 874.0 | 715.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.86 | 250.09 | -8.34 | 32.71 | 0.2594 | 874.0 | 749.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.06 | 250.13 | -8.30 | 36.93 | 0.2343 | 918.0 | 755.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.33 | 250.01 | -8.43 | 31.97 | 0.2667 | 852.0 | 724.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.28 | 250.09 | -8.34 | 39.20 | 0.2244 | 976.0 | 767.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.51 | 249.72 | -8.71 | 27.09 | 0.3147 | 819.0 | 606.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.98 | 249.80 | -8.63 | 33.34 | 0.2638 | 824.0 | 619.1 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 13.22 | 249.81 | -8.62 | 40.31 | 0.2267 | 758.0 | 631.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 16.64 | 249.54 | -8.89 | 32.70 | 0.2752 | 755.0 | 533.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.02 | 249.27 | -9.16 | 39.72 | 0.2428 | 864.0 | 618.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.73 | 248.93 | -9.51 | 34.26 | 0.2822 | 771.0 | 612.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 15.89 | 246.42 | -12.01 | 42.50 | 0.2976 | 848.0 | 772.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
