SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.41 | 707.44 | 63.08 | 380.51 | -19.33 | 256.37 | -2.06 | 174.84 | 0.3902 | 750.9 | 326.8 | |
|
previous
or next observation for the same group /

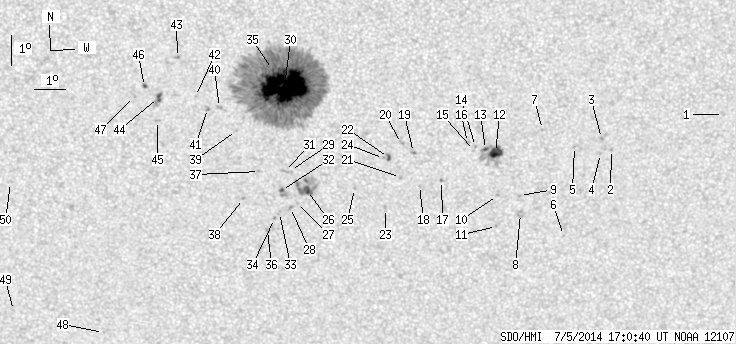

back to the solar disc SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.15 | -19.84 | 270.15 | 11.72 | 205.95 | 0.4384 | 632.0 | 627.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.96 | 266.52 | 8.09 | 197.73 | 0.4334 | 815.0 | 720.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.59 | 266.17 | 7.74 | 197.29 | 0.4262 | 940.0 | 813.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.10 | 266.17 | 7.74 | 196.90 | 0.4337 | 739.0 | 656.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.85 | 265.30 | 6.87 | 195.26 | 0.4263 | 749.0 | 605.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.86 | 265.08 | 6.65 | 193.04 | 0.4709 | 682.0 | 603.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.28 | 264.23 | 5.80 | 193.31 | 0.4132 | 441.0 | 411.8 | |
| 0.00 | 4.81 | 0.00 | 2.67 | -23.10 | 263.61 | 5.18 | 190.56 | 0.4547 | 642.0 | 563.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.49 | 263.55 | 5.12 | 190.72 | 0.4451 | 826.0 | 647.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.48 | 262.82 | 4.39 | 189.23 | 0.4431 | 765.0 | 644.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.54 | 262.82 | 4.39 | 188.83 | 0.4594 | -818.0 | -656.9 | |
| 9.81 | 35.32 | 5.35 | 19.28 | -21.04 | 262.72 | 4.28 | 189.59 | 0.4203 | 1025.2 | 364.8 | |
| 1.00 | -12.00 | 0.54 | -12.00 | -20.93 | 262.39 | 3.95 | 188.91 | 0.4178 | 986.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -20.83 | 262.06 | 3.63 | 188.21 | 0.4154 | 733.0 | 562.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.96 | 262.03 | 3.60 | 188.10 | 0.4175 | 475.0 | 401.0 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -20.70 | 261.79 | 3.36 | 187.67 | 0.4127 | 840.0 | 692.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.97 | 260.96 | 2.53 | 185.48 | 0.4313 | -970.0 | -753.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.13 | 260.24 | 1.81 | 183.89 | 0.4330 | -598.0 | -563.6 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -21.02 | 260.03 | 1.60 | 183.62 | 0.4152 | -835.0 | -658.0 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -20.72 | 259.64 | 1.21 | 182.77 | 0.4100 | -914.0 | -699.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -21.86 | 259.62 | 1.18 | 182.58 | 0.4281 | 705.0 | 559.1 | |
| 1.09 | 3.27 | 0.59 | 1.78 | -21.19 | 259.22 | 0.79 | 181.77 | 0.4172 | 967.0 | 857.8 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -22.91 | 259.13 | 0.70 | 181.45 | 0.4444 | -711.0 | -601.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -21.22 | 259.05 | 0.62 | 181.40 | 0.4176 | 638.0 | 548.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.23 | 258.10 | -0.33 | 179.30 | 0.4336 | -757.0 | -585.8 | |
| 3.90 | 25.61 | 2.15 | 14.06 | -22.30 | 256.55 | -1.88 | 176.00 | 0.4356 | -1069.4 | -665.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.71 | 256.22 | -2.21 | 175.36 | 0.4424 | -295.0 | -336.0 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -22.88 | 255.98 | -2.45 | 174.91 | 0.4454 | -781.0 | -538.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.62 | 256.01 | -2.42 | 174.68 | 0.4257 | -256.0 | -319.2 | |
| 97.25 | 572.58 | 52.08 | 306.68 | -18.83 | 255.86 | -2.57 | 173.58 | 0.3814 | 1485.7 | 435.9 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -21.66 | 255.81 | -2.62 | 174.26 | 0.4265 | -287.0 | -233.9 | |
| 1.09 | 5.08 | 0.60 | 2.80 | -22.30 | 255.70 | -2.73 | 174.18 | 0.4368 | -973.1 | -803.6 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -23.05 | 255.62 | -2.82 | 174.19 | 0.4486 | -806.0 | -597.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -23.25 | 255.44 | -2.99 | 173.90 | 0.4521 | -885.0 | -763.1 | |
| 0.27 | -30.00 | 0.15 | -30.00 | -18.27 | 255.48 | -2.95 | 172.45 | 0.3731 | 1366.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -23.66 | 255.20 | -3.23 | 173.52 | 0.4588 | -808.0 | -709.8 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -21.66 | 254.99 | -3.44 | 172.48 | 0.4281 | 676.0 | 513.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.57 | 254.44 | -4.00 | 171.62 | 0.4435 | -846.0 | -660.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -20.29 | 254.27 | -4.16 | 170.37 | 0.4082 | 648.0 | 526.0 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -19.53 | 253.74 | -4.69 | 168.79 | 0.3978 | 762.0 | 577.0 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -19.56 | 253.35 | -5.08 | 167.90 | 0.3996 | 798.0 | 586.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.17 | 252.98 | -5.45 | 166.79 | 0.3947 | 671.0 | 495.5 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -17.89 | 252.44 | -5.99 | 164.65 | 0.3769 | -910.0 | -786.1 | |
| 2.18 | 7.81 | 1.18 | 4.22 | -19.21 | 251.77 | -6.66 | 164.06 | 0.4002 | -1014.7 | -744.3 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -19.97 | 251.71 | -6.72 | 164.45 | 0.4122 | -805.0 | -640.0 | |
| 0.82 | 1.73 | 0.44 | 0.93 | -18.85 | 251.33 | -7.10 | 162.78 | 0.3967 | -977.2 | -865.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.18 | 250.99 | -7.44 | 162.28 | 0.4034 | -663.0 | -430.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -27.25 | 249.44 | -8.99 | 164.71 | 0.5290 | -644.0 | -516.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -26.50 | 246.38 | -12.05 | 159.38 | 0.5326 | -507.0 | -428.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -22.09 | 246.71 | -11.72 | 156.27 | 0.4698 | -468.0 | -479.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
