SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 36.24 | 2.71 | 18.85 | -13.76 | 254.14 | -4.29 | 166.48 | 0.3060 | 467.0 | 339.6 | |
|
previous
or next observation for the same group /

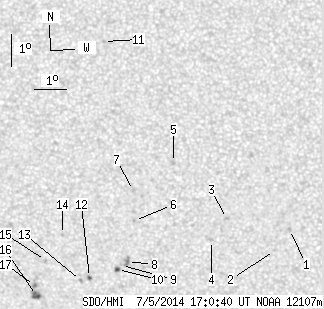

back to the solar disc SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 0.98 | -13.05 | 259.57 | 1.14 | 183.92 | 0.2841 | 843.0 | 694.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -13.71 | 259.10 | 0.67 | 182.22 | 0.2949 | 747.0 | 538.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -12.70 | 257.60 | -0.83 | 177.07 | 0.2779 | 970.0 | 837.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.39 | 257.13 | -1.30 | 175.61 | 0.2901 | 789.0 | 722.6 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -10.93 | 255.96 | -2.47 | 170.27 | 0.2512 | 751.0 | 544.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.76 | 254.72 | -3.71 | 167.19 | 0.2857 | 743.0 | 610.8 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -11.81 | 254.71 | -3.72 | 166.33 | 0.2702 | 790.0 | 630.2 | |
| 0.00 | 4.00 | 0.00 | 2.08 | -14.07 | 254.48 | -3.95 | 167.41 | 0.3079 | 1113.0 | 862.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -14.20 | 254.29 | -4.14 | 166.92 | 0.3106 | 710.0 | 636.8 | |
| 1.27 | 2.54 | 0.66 | 1.33 | -14.32 | 254.16 | -4.27 | 166.63 | 0.3132 | 939.5 | 823.1 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -7.16 | 253.84 | -4.59 | 156.44 | 0.1996 | 843.0 | 777.5 | |
| 0.82 | 2.09 | 0.43 | 1.09 | -14.58 | 253.27 | -5.16 | 164.20 | 0.3211 | 861.3 | 712.6 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -14.68 | 252.98 | -5.45 | 163.46 | 0.3240 | 722.0 | 549.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.22 | 252.45 | -5.98 | 160.41 | 0.3036 | 781.0 | 653.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.05 | 251.90 | -6.54 | 159.70 | 0.3197 | -776.0 | -607.3 | |
| 3.09 | 6.72 | 1.62 | 3.54 | -15.17 | 251.57 | -6.86 | 160.03 | 0.3389 | -969.8 | -759.8 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -14.85 | 251.52 | -6.91 | 159.55 | 0.3343 | -1037.0 | -898.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
