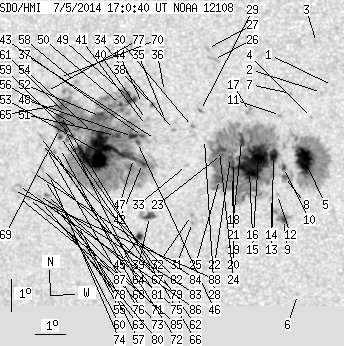

SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 306.51 | 1346.21 | 164.83 | 723.97 | -7.37 | 238.31 | -20.12 | 118.52 | 0.3890 | -56.8 | -16.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.24 | 243.54 | -14.89 | 119.93 | 0.2966 | 743.0 | 608.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.46 | 243.18 | -15.25 | 119.99 | 0.3036 | -863.0 | -660.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -3.92 | 243.06 | -15.37 | 115.21 | 0.2935 | 291.0 | 332.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.24 | 242.84 | -15.59 | 121.60 | 0.3150 | 619.0 | 413.9 | |
| 33.05 | 159.17 | 17.34 | 83.45 | -7.54 | 242.57 | -15.86 | 124.58 | 0.3304 | 1333.7 | 552.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -11.77 | 242.13 | -16.30 | 133.26 | 0.3788 | 688.0 | 515.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.51 | 242.20 | -16.23 | 118.58 | 0.3183 | -791.0 | -636.6 | |
| 1.36 | 425.67 | 0.72 | 225.65 | -8.08 | 241.91 | -16.52 | 124.81 | 0.3444 | 903.4 | 427.2 | |
| 3.36 | 11.99 | 1.78 | 6.36 | -9.42 | 241.81 | -16.62 | 127.77 | 0.3584 | 946.4 | 751.1 | |
| 2.00 | -8.00 | 1.05 | -8.00 | -7.80 | 241.89 | -16.54 | 124.10 | 0.3421 | 1021.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -6.19 | 241.86 | -16.58 | 119.93 | 0.3287 | 566.0 | 532.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.64 | 241.66 | -16.77 | 125.74 | 0.3530 | 654.0 | 498.3 | |
| 8.35 | -8.00 | 4.40 | -8.00 | -7.43 | 241.58 | -16.85 | 122.71 | 0.3430 | 1358.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.77 | 241.46 | -16.97 | 125.72 | 0.3568 | 767.0 | 637.5 | |
| 38.77 | -8.00 | 20.50 | -8.00 | -7.47 | 241.10 | -17.33 | 122.07 | 0.3500 | 1306.2 | 999999 | |
| 28.24 | -8.00 | 14.98 | -8.00 | -7.91 | 240.79 | -17.64 | 122.68 | 0.3581 | 1115.0 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.15 | -6.08 | 240.86 | -17.57 | 118.23 | 0.3421 | 849.0 | 793.4 | |
| 5.99 | -8.00 | 3.17 | -8.00 | -6.99 | 240.57 | -17.86 | 120.12 | 0.3534 | 916.0 | 999999 | |
| 3.90 | -8.00 | 2.08 | -8.00 | -7.83 | 240.28 | -18.15 | 121.74 | 0.3645 | 983.7 | 999999 | |
| 1.82 | -8.00 | 0.96 | -8.00 | -7.67 | 240.28 | -18.15 | 121.38 | 0.3631 | 943.6 | 999999 | |
| 1.36 | -8.00 | 0.73 | -8.00 | -8.11 | 240.23 | -18.20 | 122.33 | 0.3675 | 504.0 | 999999 | |
| 1.18 | -8.00 | 0.63 | -8.00 | -7.52 | 240.19 | -18.24 | 120.89 | 0.3631 | 892.3 | 999999 | |
| 1.27 | -8.00 | 0.68 | -8.00 | -7.43 | 239.91 | -18.52 | 120.29 | 0.3664 | 481.3 | 999999 | |
| 8.08 | -8.00 | 4.30 | -8.00 | -7.31 | 239.85 | -18.58 | 119.91 | 0.3662 | 527.5 | 999999 | |
| 6.99 | -8.00 | 3.73 | -8.00 | -8.21 | 239.80 | -18.63 | 121.97 | 0.3742 | 71.3 | 999999 | |
| 0.00 | 4.72 | 0.00 | 2.49 | -4.50 | 239.76 | -18.68 | 112.69 | 0.3475 | 833.0 | 735.8 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -4.17 | 239.57 | -18.86 | 111.59 | 0.3482 | 866.0 | 674.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -6.98 | 239.38 | -19.06 | 118.51 | 0.3704 | 503.0 | 417.7 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -6.08 | 239.28 | -19.15 | 116.21 | 0.3651 | 926.0 | 739.5 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -6.58 | 239.00 | -19.43 | 117.10 | 0.3728 | 728.0 | 525.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -9.57 | 238.85 | -19.58 | 123.67 | 0.3988 | -891.0 | -768.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.35 | 238.83 | -19.60 | 123.18 | 0.3972 | -985.0 | -807.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -7.79 | 238.75 | -19.68 | 119.64 | 0.3855 | 711.0 | 470.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -6.68 | 238.38 | -20.05 | 116.62 | 0.3825 | 719.0 | 494.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.41 | 238.13 | -20.30 | 115.69 | 0.3843 | -780.0 | -540.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.52 | 238.13 | -20.30 | 113.54 | 0.3783 | 636.0 | 507.3 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -7.01 | 237.77 | -20.66 | 116.68 | 0.3935 | -400.0 | -240.8 | |
| 0.73 | 1.73 | 0.39 | 0.93 | -5.93 | 237.72 | -20.71 | 114.11 | 0.3869 | -935.0 | -799.3 | |
| 4.99 | 10.35 | 2.72 | 5.64 | -9.41 | 237.44 | -20.99 | 121.54 | 0.4164 | 812.9 | 162.0 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -6.39 | 237.51 | -20.92 | 114.98 | 0.3932 | -497.0 | -444.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.58 | 237.50 | -20.93 | 115.40 | 0.3946 | -303.0 | -296.2 | |
| 3.18 | 642.68 | 1.72 | 350.48 | -7.76 | 237.31 | -21.12 | 117.86 | 0.4056 | -1032.0 | -413.6 | |
| 1.27 | -42.00 | 0.69 | -42.00 | -6.92 | 237.35 | -21.08 | 116.03 | 0.3990 | -1086.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -5.90 | 237.40 | -21.03 | 113.71 | 0.3916 | 378.0 | 339.8 | |
| 3.63 | 5.45 | 1.99 | 2.98 | -10.04 | 237.06 | -21.37 | 122.39 | 0.4266 | -1017.8 | -773.7 | |
| 1.54 | -42.00 | 0.83 | -42.00 | -7.11 | 237.18 | -21.25 | 116.27 | 0.4029 | -672.8 | 999999 | |
| 1.54 | -42.00 | 0.84 | -42.00 | -7.61 | 237.02 | -21.41 | 117.21 | 0.4086 | -1055.7 | 999999 | |
| 4.09 | -42.00 | 2.21 | -42.00 | -6.93 | 237.02 | -21.41 | 115.70 | 0.4038 | -1140.2 | 999999 | |
| 9.62 | -42.00 | 5.19 | -42.00 | -5.72 | 236.94 | -21.49 | 112.86 | 0.3972 | 976.3 | 999999 | |
| 1.27 | -42.00 | 0.69 | -42.00 | -5.95 | 236.67 | -21.76 | 113.11 | 0.4026 | 673.6 | 999999 | |
| 4.81 | -42.00 | 2.61 | -42.00 | -6.91 | 236.46 | -21.97 | 115.08 | 0.4118 | -1283.6 | 999999 | |
| 8.44 | -42.00 | 4.59 | -42.00 | -6.33 | 235.99 | -22.44 | 113.34 | 0.4149 | -31.4 | 999999 | |
| 89.26 | -42.00 | 48.77 | -42.00 | -7.45 | 235.90 | -22.53 | 115.70 | 0.4234 | -1307.7 | 999999 | |
| 1.00 | -42.00 | 0.55 | -42.00 | -6.83 | 235.70 | -22.73 | 114.18 | 0.4223 | -1057.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -10.24 | 235.21 | -23.22 | 120.68 | 0.4530 | -727.0 | -542.6 | |
| 1.09 | -42.00 | 0.60 | -42.00 | -6.69 | 235.24 | -23.19 | 113.44 | 0.4281 | -1148.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.74 | 235.04 | -23.39 | 119.54 | 0.4515 | -848.0 | -708.0 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -5.30 | 235.24 | -23.19 | 110.37 | 0.4201 | -779.0 | -601.0 | |
| 1.82 | -42.00 | 1.00 | -42.00 | -6.97 | 235.02 | -23.41 | 113.85 | 0.4329 | -1118.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.90 | 234.80 | -23.63 | 119.60 | 0.4561 | -1010.0 | -857.6 | |
| 1.27 | -42.00 | 0.70 | -42.00 | -6.30 | 234.86 | -23.57 | 112.25 | 0.4313 | -1034.1 | 999999 | |
| 0.54 | -42.00 | 0.30 | -42.00 | -7.07 | 234.82 | -23.61 | 113.87 | 0.4365 | -914.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.84 | 234.63 | -23.80 | 119.32 | 0.4579 | -795.0 | -646.2 | |
| 8.90 | -42.00 | 4.89 | -42.00 | -6.61 | 234.71 | -23.72 | 112.80 | 0.4353 | -1125.7 | 999999 | |
| 1.09 | -42.00 | 0.60 | -42.00 | -5.99 | 234.74 | -23.69 | 111.49 | 0.4312 | -1150.2 | 999999 | |
| 3.72 | -42.00 | 2.05 | -42.00 | -6.33 | 234.66 | -23.77 | 112.16 | 0.4344 | -1060.3 | 999999 | |
| 1.73 | -42.00 | 0.95 | -42.00 | -6.98 | 234.62 | -23.81 | 113.51 | 0.4388 | -830.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.35 | 234.60 | -23.83 | 114.28 | 0.4414 | -461.0 | -398.8 | |
| 4.81 | -42.00 | 2.65 | -42.00 | -6.73 | 234.60 | -23.83 | 112.97 | 0.4376 | -896.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -5.16 | 234.68 | -23.75 | 109.61 | 0.4277 | -775.0 | -581.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -9.23 | 234.34 | -24.09 | 117.83 | 0.4574 | -927.0 | -736.6 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -7.45 | 234.39 | -24.04 | 114.29 | 0.4450 | -913.0 | -656.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.04 | 234.15 | -24.28 | 117.28 | 0.4588 | -992.0 | -877.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.20 | 234.18 | -24.25 | 115.63 | 0.4528 | -838.0 | -692.1 | |
| 0.45 | 2.91 | 0.25 | 1.62 | -8.83 | 234.03 | -24.40 | 116.75 | 0.4590 | -986.6 | -815.0 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -7.36 | 234.13 | -24.30 | 113.88 | 0.4482 | -654.0 | -561.2 | |
| 0.00 | 6.17 | 0.00 | 3.40 | -5.60 | 234.22 | -24.21 | 110.23 | 0.4367 | -414.0 | -454.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.33 | 234.00 | -24.43 | 115.73 | 0.4562 | -870.0 | -729.5 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -8.02 | 233.92 | -24.51 | 115.04 | 0.4553 | -758.0 | -629.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -9.02 | 233.85 | -24.58 | 116.95 | 0.4628 | -733.0 | -615.8 | |
| 0.00 | 3.00 | 0.00 | 1.66 | -7.00 | 233.95 | -24.48 | 112.97 | 0.4486 | -593.0 | -513.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -7.24 | 233.93 | -24.50 | 113.47 | 0.4503 | -573.0 | -455.2 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -8.83 | 233.76 | -24.67 | 116.51 | 0.4628 | -723.0 | -620.5 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -8.12 | 233.61 | -24.83 | 114.96 | 0.4603 | -629.0 | -431.2 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -8.94 | 233.41 | -25.02 | 116.39 | 0.4683 | -711.0 | -616.3 | |
| 0.00 | 3.09 | 0.00 | 1.73 | -8.54 | 233.10 | -25.33 | 115.34 | 0.4701 | -708.0 | -636.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.91 | 233.07 | -25.36 | 116.05 | 0.4728 | -565.0 | -414.3 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -8.70 | 232.92 | -25.51 | 115.50 | 0.4736 | -510.0 | -467.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
