SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.72 | 67.40 | 6.35 | 38.91 | -15.75 | 233.98 | -24.45 | 129.13 | 0.5142 | 30.1 | -39.6 | |
|
previous
or next observation for the same group /

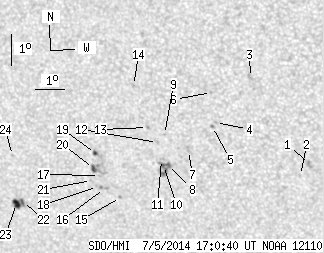

back to the solar disc SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.36 | 0.00 | 1.86 | -15.63 | 240.12 | -18.31 | 136.82 | 0.4439 | 742.0 | 707.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -15.99 | 239.79 | -18.64 | 136.88 | 0.4514 | 461.0 | 389.0 | |
| 0.00 | 3.00 | 0.00 | 1.65 | -12.88 | 238.41 | -20.02 | 129.59 | 0.4349 | 366.0 | 461.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -14.34 | 237.10 | -21.33 | 130.40 | 0.4647 | 728.0 | 557.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -14.47 | 236.98 | -21.45 | 130.47 | 0.4673 | 599.0 | 442.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -13.39 | 237.06 | -21.38 | 128.69 | 0.4561 | 653.0 | 526.9 | |
| 0.00 | 3.45 | 0.00 | 1.95 | -15.26 | 236.08 | -22.35 | 130.64 | 0.4854 | 716.0 | 582.9 | |
| 1.00 | 13.08 | 0.57 | 7.48 | -15.73 | 235.34 | -23.09 | 130.49 | 0.4984 | 923.4 | 511.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -14.76 | 235.31 | -23.12 | 128.90 | 0.4898 | 804.0 | 690.5 | |
| 0.82 | -8.00 | 0.47 | -8.00 | -15.76 | 235.16 | -23.27 | 130.33 | 0.5007 | 717.9 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -15.57 | 235.12 | -23.31 | 129.97 | 0.4995 | 528.0 | 431.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -15.03 | 235.04 | -23.39 | 129.01 | 0.4954 | 716.0 | 517.9 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -14.55 | 234.75 | -23.68 | 127.90 | 0.4945 | 787.0 | 673.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.22 | 234.42 | -24.01 | 125.28 | 0.4871 | 864.0 | 647.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -16.84 | 233.52 | -24.91 | 130.13 | 0.5293 | -834.0 | -709.7 | |
| 0.00 | 2.63 | 0.00 | 1.54 | -16.56 | 233.00 | -25.43 | 129.14 | 0.5328 | -852.0 | -782.2 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -16.14 | 232.88 | -25.55 | 128.38 | 0.5305 | -618.0 | -565.1 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -16.50 | 232.76 | -25.67 | 128.80 | 0.5350 | -563.0 | -586.0 | |
| 1.18 | 4.00 | 0.69 | 2.32 | -15.43 | 232.84 | -25.59 | 127.23 | 0.5250 | -911.2 | -779.8 | |
| 1.91 | 11.44 | 1.11 | 6.67 | -15.92 | 232.70 | -25.73 | 127.85 | 0.5308 | -976.0 | -795.8 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -16.31 | 232.58 | -25.86 | 128.32 | 0.5356 | -602.0 | -602.2 | |
| 1.00 | 9.99 | 0.60 | 6.03 | -17.06 | 229.99 | -28.44 | 126.91 | 0.5716 | -938.1 | -701.5 | |
| 4.81 | -22.00 | 2.91 | -22.00 | -17.13 | 229.76 | -28.67 | 126.80 | 0.5748 | -828.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.58 | 229.87 | -28.57 | 124.58 | 0.5615 | -628.0 | -463.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
