SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.79 | 128.21 | 21.18 | 110.38 | 6.23 | 203.51 | -54.93 | 84.73 | 0.8190 | -495.5 | -186.1 | |
|
previous
or next observation for the same group /

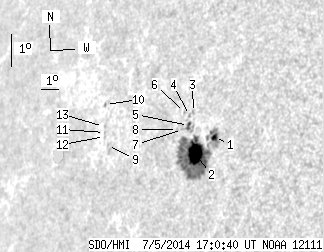

back to the solar disc SDO HMI 2014-07-05 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 113.05 | 2.51 | 96.71 | 6.60 | 204.59 | -53.84 | 84.27 | 0.8083 | -883.5 | -212.7 | |
| 20.34 | -1.00 | 17.41 | -1.00 | 6.07 | 203.67 | -54.77 | 84.93 | 0.8176 | -840.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.25 | 7.31 | 203.35 | -55.08 | 83.42 | 0.8208 | -451.0 | -371.5 | |
| 0.00 | 1.18 | 0.00 | 1.02 | 7.21 | 203.15 | -55.28 | 83.55 | 0.8228 | -288.0 | -272.1 | |
| 1.45 | 5.99 | 1.26 | 5.18 | 6.90 | 203.15 | -55.28 | 83.92 | 0.8227 | -379.9 | -377.1 | |
| 0.00 | 0.82 | 0.00 | 0.71 | 7.29 | 202.87 | -55.56 | 83.46 | 0.8256 | -283.0 | -213.1 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 6.76 | 202.85 | -55.58 | 84.09 | 0.8257 | 331.0 | 323.0 | |
| 0.00 | 1.00 | 0.00 | 0.88 | 6.75 | 202.58 | -55.85 | 84.11 | 0.8283 | 252.0 | 208.1 | |
| 0.00 | 0.64 | 0.00 | 0.62 | 6.07 | 198.64 | -59.79 | 84.92 | 0.8648 | 510.0 | 494.1 | |
| 0.00 | 1.36 | 0.00 | 1.35 | 7.31 | 198.26 | -60.17 | 83.49 | 0.8680 | 495.0 | 438.2 | |
| 0.00 | 0.27 | 0.00 | 0.27 | 6.46 | 198.38 | -60.05 | 84.48 | 0.8670 | 395.0 | 405.0 | |
| 0.00 | 1.27 | 0.00 | 1.25 | 6.33 | 198.40 | -60.03 | 84.62 | 0.8668 | 500.0 | 384.8 | |
| 0.00 | 0.91 | 0.00 | 0.90 | 6.63 | 198.28 | -60.15 | 84.27 | 0.8678 | 419.0 | 388.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
