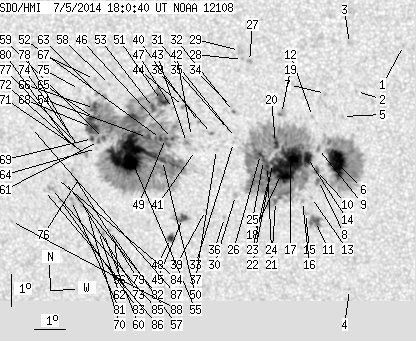

SDO HMI 2014-07-05 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 275.21 | 1375.19 | 147.36 | 736.72 | -7.34 | 238.34 | -19.53 | 119.21 | 0.3807 | -1.9 | -29.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | -3.92 | 244.78 | -13.10 | 118.94 | 0.2595 | 692.0 | 569.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.35 | 243.27 | -14.61 | 120.76 | 0.2935 | -756.0 | -574.2 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -3.88 | 243.08 | -14.80 | 115.94 | 0.2846 | 560.0 | 355.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -11.53 | 242.79 | -15.09 | 134.97 | 0.3620 | 738.0 | 604.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.13 | 242.80 | -15.08 | 122.19 | 0.3069 | 498.0 | 316.9 | |
| 35.50 | 160.52 | 18.58 | 83.91 | -7.56 | 242.59 | -15.28 | 125.62 | 0.3229 | 1335.8 | 544.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.43 | 242.28 | -15.60 | 119.35 | 0.3084 | -586.0 | -610.5 | |
| 0.82 | 433.64 | 0.43 | 229.11 | -8.13 | 241.96 | -15.91 | 125.94 | 0.3367 | 906.1 | 421.4 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -7.13 | 242.00 | -15.87 | 123.52 | 0.3269 | 1081.0 | 876.3 | |
| 2.18 | -8.00 | 1.14 | -8.00 | -7.82 | 241.91 | -15.96 | 125.10 | 0.3345 | 1029.5 | 999999 | |
| 5.54 | 11.17 | 2.93 | 5.91 | -9.41 | 241.81 | -16.07 | 128.68 | 0.3513 | 989.3 | 678.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.15 | 241.84 | -16.03 | 120.66 | 0.3206 | 720.0 | 557.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -8.66 | 241.71 | -16.16 | 126.80 | 0.3451 | 510.0 | 428.5 | |
| 8.90 | -8.00 | 4.68 | -8.00 | -7.42 | 241.64 | -16.24 | 123.65 | 0.3345 | 1351.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.16 | 241.50 | -16.38 | 127.60 | 0.3528 | 725.0 | 632.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -8.79 | 241.42 | -16.46 | 126.61 | 0.3502 | 801.0 | 645.6 | |
| 40.68 | -8.00 | 21.44 | -8.00 | -7.46 | 241.09 | -16.78 | 122.88 | 0.3424 | 1301.7 | 999999 | |
| 25.97 | -8.00 | 13.73 | -8.00 | -7.93 | 240.78 | -17.09 | 123.55 | 0.3508 | 1139.6 | 999999 | |
| 0.00 | 4.63 | 0.00 | 2.43 | -6.07 | 240.86 | -17.02 | 118.97 | 0.3341 | 928.0 | 843.1 | |
| 5.99 | -8.00 | 3.16 | -8.00 | -6.97 | 240.63 | -17.24 | 120.96 | 0.3447 | 946.2 | 999999 | |
| 1.18 | -8.00 | 0.63 | -8.00 | -8.80 | 240.55 | -17.33 | 125.24 | 0.3619 | 599.6 | 999999 | |
| 1.82 | -8.00 | 0.96 | -8.00 | -7.62 | 240.51 | -17.37 | 122.39 | 0.3519 | 889.8 | 999999 | |
| 2.09 | -8.00 | 1.11 | -8.00 | -8.12 | 240.36 | -17.52 | 123.36 | 0.3584 | 580.3 | 999999 | |
| 1.27 | -8.00 | 0.67 | -8.00 | -7.72 | 240.34 | -17.53 | 122.38 | 0.3550 | 952.9 | 999999 | |
| 0.27 | -8.00 | 0.14 | -8.00 | -7.54 | 240.22 | -17.65 | 121.76 | 0.3551 | 898.0 | 999999 | |
| 1.91 | -8.00 | 1.01 | -8.00 | -7.35 | 240.13 | -17.74 | 121.18 | 0.3548 | 960.3 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.29 | -4.48 | 239.88 | -18.00 | 113.43 | 0.3372 | 1013.0 | 869.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -4.43 | 239.65 | -18.22 | 113.01 | 0.3402 | 836.0 | 724.9 | |
| 0.00 | 4.99 | 0.00 | 2.63 | -4.15 | 239.56 | -18.31 | 112.16 | 0.3398 | 554.0 | 607.2 | |
| 0.00 | 3.00 | 0.00 | 1.60 | -8.64 | 239.26 | -18.62 | 122.97 | 0.3778 | -200.0 | -54.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.84 | 239.35 | -18.53 | 118.86 | 0.3618 | 461.0 | 280.6 | |
| 0.45 | 1.36 | 0.24 | 0.72 | -6.03 | 239.31 | -18.56 | 116.82 | 0.3563 | 767.2 | 630.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.99 | 239.27 | -18.60 | 119.14 | 0.3641 | 500.0 | 356.1 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -5.88 | 239.25 | -18.62 | 116.36 | 0.3560 | 674.0 | 530.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.59 | 239.13 | -18.75 | 117.98 | 0.3631 | 756.0 | 530.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.33 | 238.86 | -19.01 | 123.95 | 0.3892 | -928.0 | -731.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.22 | 238.71 | -19.16 | 118.96 | 0.3738 | -472.0 | -350.3 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -6.73 | 238.57 | -19.30 | 117.61 | 0.3721 | 703.0 | 481.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -9.13 | 238.25 | -19.62 | 122.68 | 0.3956 | 761.0 | 568.6 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -6.39 | 238.19 | -19.68 | 116.36 | 0.3751 | -894.0 | -635.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -7.26 | 238.02 | -19.85 | 118.22 | 0.3839 | -153.0 | -142.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.83 | 237.91 | -19.96 | 117.08 | 0.3823 | -172.0 | -146.9 | |
| 0.00 | 3.09 | 0.00 | 1.66 | -7.02 | 237.74 | -20.13 | 117.33 | 0.3862 | -638.0 | -384.9 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -5.91 | 237.69 | -20.18 | 114.63 | 0.3792 | -961.0 | -798.9 | |
| 4.54 | 10.99 | 2.46 | 5.96 | -9.39 | 237.48 | -20.39 | 122.25 | 0.4082 | 864.8 | 249.3 | |
| 1.36 | 650.91 | 0.73 | 353.49 | -6.91 | 237.29 | -20.59 | 116.54 | 0.3918 | -1136.6 | -432.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -5.98 | 237.33 | -20.55 | 114.41 | 0.3849 | 30.0 | 41.1 | |
| 3.54 | 5.90 | 1.93 | 3.22 | -10.02 | 237.04 | -20.83 | 123.02 | 0.4194 | -1019.5 | -740.9 | |
| 1.18 | -46.00 | 0.64 | -46.00 | -6.91 | 237.06 | -20.82 | 116.30 | 0.3952 | -1346.5 | 999999 | |
| 3.00 | -46.00 | 1.62 | -46.00 | -7.60 | 236.93 | -20.95 | 117.70 | 0.4020 | -1198.6 | 999999 | |
| 9.62 | -46.00 | 5.17 | -46.00 | -5.74 | 236.98 | -20.90 | 113.48 | 0.3886 | 1038.9 | 999999 | |
| 1.63 | -46.00 | 0.88 | -46.00 | -6.92 | 236.89 | -20.98 | 116.13 | 0.3976 | -1261.9 | 999999 | |
| 3.09 | -46.00 | 1.66 | -46.00 | -5.96 | 236.71 | -21.17 | 113.73 | 0.3940 | 570.2 | 999999 | |
| 4.27 | -46.00 | 2.31 | -46.00 | -6.89 | 236.47 | -21.41 | 115.63 | 0.4036 | -1273.9 | 999999 | |
| 78.45 | -46.00 | 42.71 | -46.00 | -7.43 | 235.84 | -22.03 | 116.18 | 0.4162 | -1370.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -10.13 | 235.17 | -22.71 | 121.03 | 0.4453 | -605.0 | -582.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.82 | 235.02 | -22.85 | 120.26 | 0.4449 | -814.0 | -694.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.28 | 235.28 | -22.59 | 110.84 | 0.4110 | -931.0 | -720.8 | |
| 1.63 | -46.00 | 0.89 | -46.00 | -6.96 | 235.00 | -22.87 | 114.32 | 0.4251 | -1120.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -9.92 | 234.81 | -23.06 | 120.23 | 0.4485 | -810.0 | -728.3 | |
| 1.00 | -46.00 | 0.55 | -46.00 | -7.05 | 234.83 | -23.04 | 114.37 | 0.4282 | -932.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.86 | 234.65 | -23.23 | 119.94 | 0.4502 | -853.0 | -634.1 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -5.57 | 234.87 | -23.00 | 111.14 | 0.4188 | -980.0 | -836.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.27 | 234.75 | -23.12 | 114.76 | 0.4307 | -674.0 | -471.5 | |
| 6.72 | -46.00 | 3.67 | -46.00 | -6.34 | 234.74 | -23.14 | 112.74 | 0.4252 | -1012.9 | 999999 | |
| 5.45 | -46.00 | 2.98 | -46.00 | -6.03 | 234.75 | -23.12 | 112.07 | 0.4232 | -1147.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -5.14 | 234.79 | -23.09 | 110.11 | 0.4176 | -810.0 | -628.2 | |
| 13.62 | -46.00 | 7.46 | -46.00 | -6.62 | 234.66 | -23.22 | 113.28 | 0.4281 | -1033.8 | 999999 | |
| 1.54 | -46.00 | 0.85 | -46.00 | -6.96 | 234.64 | -23.24 | 114.00 | 0.4305 | -821.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.24 | 234.33 | -23.55 | 118.39 | 0.4501 | -877.0 | -760.0 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -7.46 | 234.41 | -23.47 | 114.85 | 0.4369 | -901.0 | -662.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.41 | 234.24 | -23.63 | 114.57 | 0.4389 | -665.0 | -569.1 | |
| 0.00 | 5.18 | 0.00 | 2.87 | -8.90 | 234.11 | -23.76 | 117.51 | 0.4507 | -887.0 | -846.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.25 | 234.19 | -23.69 | 114.20 | 0.4388 | -703.0 | -622.6 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -5.46 | 234.28 | -23.60 | 110.41 | 0.4270 | -761.0 | -593.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -8.18 | 234.13 | -23.75 | 116.08 | 0.4456 | -838.0 | -720.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.10 | 234.06 | -23.82 | 113.77 | 0.4396 | -684.0 | -560.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.98 | 233.97 | -23.91 | 113.43 | 0.4402 | -646.0 | -523.1 | |
| 0.00 | 3.81 | 0.00 | 2.11 | -8.07 | 233.90 | -23.98 | 115.62 | 0.4480 | -725.0 | -639.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.26 | 233.95 | -23.93 | 114.00 | 0.4422 | -709.0 | -560.7 | |
| 0.00 | 4.27 | 0.00 | 2.37 | -8.91 | 233.81 | -24.07 | 117.23 | 0.4549 | -663.0 | -646.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -8.32 | 233.61 | -24.26 | 115.87 | 0.4537 | -666.0 | -620.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -8.92 | 233.44 | -24.44 | 116.89 | 0.4602 | -734.0 | -616.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.23 | 233.35 | -24.53 | 115.46 | 0.4569 | -471.0 | -424.0 | |
| 0.00 | 4.18 | 0.00 | 2.33 | -8.55 | 233.16 | -24.72 | 115.91 | 0.4616 | -764.0 | -682.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -8.62 | 232.91 | -24.96 | 115.83 | 0.4654 | -511.0 | -422.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -6.67 | 232.60 | -25.28 | 111.66 | 0.4582 | -599.0 | -526.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -9.61 | 231.71 | -26.17 | 116.67 | 0.4886 | -590.0 | -524.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
