SDO HMI 2014-07-05 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.43 | 111.86 | 12.66 | 60.29 | 11.42 | 279.11 | 21.79 | 291.90 | 0.3942 | -488.3 | -418.0 | |
|
previous
or next observation for the same group /

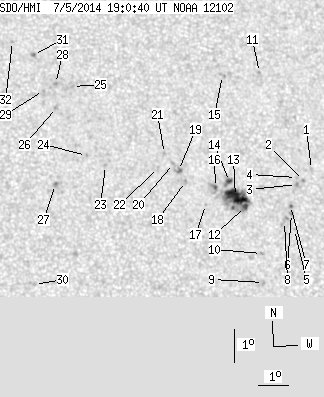

back to the solar disc SDO HMI 2014-07-05 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.00 | 11.71 | 282.50 | 25.18 | 289.88 | 0.4449 | -705.0 | -556.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 11.38 | 282.20 | 24.88 | 289.35 | 0.4389 | -784.0 | -680.1 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 11.26 | 281.95 | 24.63 | 289.25 | 0.4347 | -926.0 | -748.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 11.47 | 281.97 | 24.65 | 289.71 | 0.4359 | -866.0 | -743.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 9.88 | 281.76 | 24.44 | 286.25 | 0.4263 | -602.0 | -478.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 10.37 | 281.70 | 24.38 | 287.41 | 0.4273 | -941.0 | -756.4 | |
| 0.36 | 1.36 | 0.20 | 0.75 | 10.62 | 281.68 | 24.36 | 287.97 | 0.4280 | -907.8 | -810.9 | |
| 0.00 | 4.45 | 0.00 | 2.43 | 10.13 | 281.44 | 24.12 | 287.01 | 0.4224 | -855.0 | -723.7 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 8.28 | 280.60 | 23.28 | 283.04 | 0.4031 | -676.0 | -647.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 9.17 | 280.59 | 23.27 | 285.21 | 0.4059 | -1046.0 | -873.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 14.75 | 281.04 | 23.72 | 297.47 | 0.4403 | -684.0 | -575.7 | |
| 2.09 | 52.11 | 1.13 | 28.17 | 10.62 | 280.16 | 22.84 | 288.95 | 0.4051 | -829.3 | -647.7 | |
| 18.52 | -12.00 | 10.01 | -12.00 | 10.94 | 279.85 | 22.53 | 289.92 | 0.4018 | -1120.4 | 999999 | |
| 1.73 | 6.36 | 0.93 | 3.43 | 11.40 | 279.69 | 22.37 | 291.15 | 0.4017 | -875.2 | -760.0 | |
| 0.00 | 2.72 | 0.00 | 1.49 | 14.68 | 279.77 | 22.45 | 298.52 | 0.4222 | -503.0 | -587.8 | |
| 0.73 | 4.27 | 0.39 | 2.30 | 11.23 | 279.20 | 21.88 | 291.11 | 0.3935 | -1102.6 | -755.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 10.72 | 278.83 | 21.51 | 290.14 | 0.3853 | -739.0 | -571.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 11.44 | 278.22 | 20.90 | 292.44 | 0.3798 | -904.0 | -723.8 | |
| 0.00 | 3.99 | 0.00 | 2.14 | 11.78 | 278.01 | 20.69 | 293.47 | 0.3787 | -842.0 | -724.5 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 12.00 | 277.86 | 20.54 | 294.16 | 0.3778 | -715.0 | -522.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 12.31 | 277.59 | 20.27 | 295.20 | 0.3756 | -619.0 | -457.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.89 | 277.36 | 20.04 | 294.36 | 0.3696 | -697.0 | -540.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.98 | 275.61 | 18.29 | 296.47 | 0.3445 | 815.0 | 594.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.30 | 275.01 | 17.69 | 298.05 | 0.3379 | 792.0 | 708.9 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 14.45 | 274.72 | 17.40 | 303.95 | 0.3506 | 860.0 | 701.0 | |
| 0.00 | 2.45 | 0.00 | 1.29 | 13.80 | 274.14 | 16.82 | 303.18 | 0.3372 | 782.0 | 639.8 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 11.43 | 273.95 | 16.63 | 296.99 | 0.3161 | 968.0 | 885.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 14.55 | 274.17 | 16.85 | 305.02 | 0.3440 | 932.0 | 803.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.34 | 273.76 | 16.44 | 305.12 | 0.3366 | 703.0 | 581.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 8.37 | 273.11 | 15.79 | 288.42 | 0.2850 | 800.0 | 612.2 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 15.46 | 273.52 | 16.20 | 308.26 | 0.3438 | 960.0 | 762.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.88 | 272.86 | 15.54 | 310.35 | 0.3396 | 739.0 | 619.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
