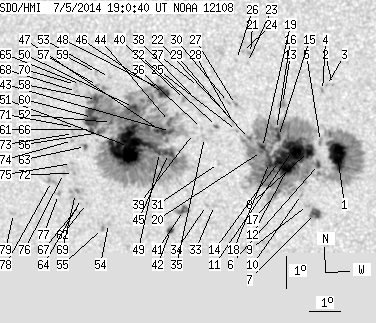

SDO HMI 2014-07-05 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 289.18 | 1404.73 | 154.42 | 750.15 | -7.34 | 238.31 | -19.01 | 119.90 | 0.3734 | 3.2 | -26.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.32 | 601.40 | 16.87 | 315.90 | -7.58 | 242.58 | -14.74 | 126.67 | 0.3158 | 1382.5 | 467.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.39 | 242.49 | -14.83 | 120.49 | 0.2970 | -841.0 | -609.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.42 | 242.30 | -15.02 | 120.26 | 0.3001 | -927.0 | -706.8 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -5.58 | 242.17 | -15.15 | 120.49 | 0.3033 | -727.0 | -594.1 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -7.15 | 242.05 | -15.27 | 124.61 | 0.3189 | 1062.0 | 884.5 | |
| 2.36 | -1.00 | 1.24 | -1.00 | -7.87 | 241.96 | -15.36 | 126.28 | 0.3269 | 1048.0 | 999999 | |
| 6.17 | 9.81 | 3.26 | 5.17 | -9.40 | 241.80 | -15.52 | 129.63 | 0.3443 | 1021.6 | 753.1 | |
| 10.08 | -1.00 | 5.28 | -1.00 | -7.47 | 241.66 | -15.66 | 124.75 | 0.3272 | 1371.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -9.15 | 241.55 | -15.77 | 128.63 | 0.3449 | 610.0 | 662.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.81 | 241.38 | -15.94 | 127.53 | 0.3438 | 730.0 | 549.8 | |
| 42.76 | -1.00 | 22.47 | -1.00 | -7.45 | 241.15 | -16.17 | 123.83 | 0.3339 | 1303.4 | 999999 | |
| 17.34 | -1.00 | 9.14 | -1.00 | -8.01 | 240.96 | -16.36 | 124.92 | 0.3416 | 1174.0 | 999999 | |
| 0.00 | 5.27 | 0.00 | 2.76 | -6.00 | 240.88 | -16.44 | 119.63 | 0.3252 | 918.0 | 794.7 | |
| 8.26 | -1.00 | 4.36 | -1.00 | -7.79 | 240.68 | -16.64 | 123.95 | 0.3434 | 1068.7 | 999999 | |
| 3.27 | -1.00 | 1.72 | -1.00 | -7.02 | 240.72 | -16.60 | 122.06 | 0.3361 | 1041.1 | 999999 | |
| 0.82 | -1.00 | 0.43 | -1.00 | -6.80 | 240.66 | -16.66 | 121.43 | 0.3351 | 883.2 | 999999 | |
| 0.91 | -1.00 | 0.48 | -1.00 | -8.82 | 240.54 | -16.78 | 126.16 | 0.3549 | 645.3 | 999999 | |
| 8.08 | -1.00 | 4.27 | -1.00 | -7.83 | 240.39 | -16.93 | 123.58 | 0.3477 | 987.4 | 999999 | |
| 2.09 | -1.00 | 1.10 | -1.00 | -7.37 | 240.19 | -17.13 | 122.13 | 0.3465 | 915.2 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | -7.49 | 240.15 | -17.17 | 122.39 | 0.3481 | 805.3 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -4.47 | 239.90 | -17.42 | 114.10 | 0.3284 | 1048.0 | 887.1 | |
| 1.00 | -1.00 | 0.53 | -1.00 | -7.10 | 239.78 | -17.54 | 120.86 | 0.3499 | 740.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -4.75 | 239.80 | -17.52 | 114.74 | 0.3318 | 783.0 | 573.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -4.41 | 239.65 | -17.67 | 113.63 | 0.3318 | 792.0 | 641.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.86 | 239.37 | -17.95 | 119.69 | 0.3537 | 700.0 | 552.2 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -4.66 | 239.45 | -17.87 | 114.08 | 0.3365 | 570.0 | 544.5 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -6.05 | 239.37 | -17.95 | 117.66 | 0.3475 | 783.0 | 676.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -6.61 | 239.28 | -18.04 | 118.96 | 0.3530 | 449.0 | 425.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -6.49 | 239.19 | -18.13 | 118.53 | 0.3534 | 714.0 | 537.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -5.99 | 239.15 | -18.17 | 117.22 | 0.3503 | 436.0 | 355.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -7.89 | 238.74 | -18.58 | 121.32 | 0.3710 | 668.0 | 462.6 | |
| 0.64 | 2.00 | 0.34 | 1.06 | -6.74 | 238.73 | -18.59 | 118.56 | 0.3620 | 727.3 | 498.6 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -9.20 | 238.54 | -18.78 | 124.00 | 0.3849 | 330.0 | 276.6 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -9.21 | 238.28 | -19.04 | 123.65 | 0.3884 | 728.0 | 615.3 | |
| 0.00 | 3.09 | 0.00 | 1.65 | -7.09 | 238.33 | -18.99 | 118.88 | 0.3704 | -142.0 | -148.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -6.81 | 238.24 | -19.08 | 118.11 | 0.3695 | 566.0 | 339.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.52 | 238.19 | -19.13 | 114.85 | 0.3609 | 754.0 | 616.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -5.89 | 238.08 | -19.24 | 115.65 | 0.3651 | -666.0 | -492.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.97 | 237.97 | -19.35 | 118.16 | 0.3746 | -141.0 | -157.9 | |
| 0.00 | 3.63 | 0.00 | 1.94 | -5.93 | 237.72 | -19.60 | 115.33 | 0.3707 | -873.0 | -778.9 | |
| 4.18 | 8.26 | 2.26 | 4.46 | -9.38 | 237.52 | -19.80 | 122.99 | 0.4002 | 889.3 | 528.3 | |
| 2.91 | 4.36 | 1.58 | 2.37 | -10.01 | 237.05 | -20.27 | 123.71 | 0.4118 | -1068.4 | -811.6 | |
| 2.91 | 686.11 | 1.56 | 371.12 | -6.93 | 237.22 | -20.10 | 117.15 | 0.3849 | -968.5 | -426.8 | |
| 2.36 | -43.00 | 1.27 | -43.00 | -6.62 | 237.21 | -20.11 | 116.41 | 0.3830 | -1113.3 | 999999 | |
| 6.63 | -43.00 | 3.57 | -43.00 | -7.61 | 237.13 | -20.19 | 118.61 | 0.3914 | -1079.2 | 999999 | |
| 6.99 | -43.00 | 3.74 | -43.00 | -5.75 | 237.05 | -20.27 | 114.17 | 0.3795 | 1047.6 | 999999 | |
| 7.08 | -43.00 | 3.81 | -43.00 | -6.93 | 236.93 | -20.39 | 116.83 | 0.3892 | -1189.2 | 999999 | |
| 3.45 | -43.00 | 1.85 | -43.00 | -5.60 | 236.92 | -20.40 | 113.67 | 0.3804 | 1007.1 | 999999 | |
| 1.45 | -43.00 | 0.78 | -43.00 | -7.58 | 236.83 | -20.49 | 118.21 | 0.3954 | -1107.4 | 999999 | |
| 4.72 | -43.00 | 2.55 | -43.00 | -6.21 | 236.04 | -21.28 | 114.21 | 0.3972 | 413.0 | 999999 | |
| 80.80 | -43.00 | 43.83 | -43.00 | -7.42 | 235.82 | -21.50 | 116.71 | 0.4086 | -1383.2 | 999999 | |
| 1.45 | -43.00 | 0.79 | -43.00 | -6.69 | 235.29 | -22.03 | 114.55 | 0.4112 | -1113.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -5.30 | 235.29 | -22.03 | 111.38 | 0.4028 | -912.0 | -762.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.83 | 235.00 | -22.32 | 120.89 | 0.4378 | -813.0 | -697.3 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -9.99 | 234.79 | -22.53 | 120.98 | 0.4419 | -734.0 | -698.2 | |
| 2.09 | -43.00 | 1.14 | -43.00 | -7.00 | 234.88 | -22.44 | 114.85 | 0.4193 | -997.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -5.55 | 234.88 | -22.44 | 111.60 | 0.4103 | -947.0 | -814.6 | |
| 3.18 | -43.00 | 1.73 | -43.00 | -5.99 | 234.83 | -22.49 | 112.54 | 0.4136 | -1232.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -5.15 | 234.87 | -22.45 | 110.67 | 0.4083 | -760.0 | -664.8 | |
| 19.52 | -43.00 | 10.64 | -43.00 | -6.55 | 234.67 | -22.65 | 113.64 | 0.4194 | -1044.4 | 999999 | |
| 2.18 | -43.00 | 1.19 | -43.00 | -6.92 | 234.62 | -22.70 | 114.41 | 0.4225 | -846.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.22 | 234.31 | -23.01 | 118.92 | 0.4426 | -902.0 | -759.4 | |
| 0.91 | 3.54 | 0.50 | 1.94 | -7.45 | 234.39 | -22.93 | 115.33 | 0.4292 | -823.5 | -642.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.07 | 234.15 | -23.17 | 118.46 | 0.4437 | -940.0 | -766.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -5.53 | 234.32 | -23.00 | 111.08 | 0.4186 | -823.0 | -696.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -6.93 | 234.25 | -23.07 | 114.08 | 0.4278 | -621.0 | -440.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.23 | 234.11 | -23.21 | 118.72 | 0.4454 | -637.0 | -501.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -5.75 | 234.18 | -23.14 | 111.45 | 0.4219 | -647.0 | -554.0 | |
| 0.00 | 9.17 | 0.00 | 5.07 | -8.92 | 233.96 | -23.36 | 117.96 | 0.4453 | -319.0 | -687.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -5.54 | 234.15 | -23.17 | 110.95 | 0.4211 | -601.0 | -511.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -6.87 | 234.09 | -23.23 | 113.81 | 0.4298 | -709.0 | -569.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -8.30 | 233.94 | -23.38 | 116.67 | 0.4413 | -808.0 | -676.6 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -7.05 | 234.01 | -23.31 | 114.14 | 0.4321 | -506.0 | -491.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.27 | 233.96 | -23.35 | 114.56 | 0.4341 | -739.0 | -582.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -7.99 | 233.89 | -23.43 | 115.98 | 0.4399 | -701.0 | -537.1 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -8.31 | 233.60 | -23.72 | 116.36 | 0.4461 | -806.0 | -612.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.96 | 233.39 | -23.93 | 117.48 | 0.4535 | -606.0 | -566.8 | |
| 0.00 | 4.81 | 0.00 | 2.67 | -8.56 | 233.18 | -24.14 | 116.48 | 0.4537 | -755.0 | -662.2 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -9.60 | 231.81 | -25.51 | 117.22 | 0.4795 | -628.0 | -552.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
