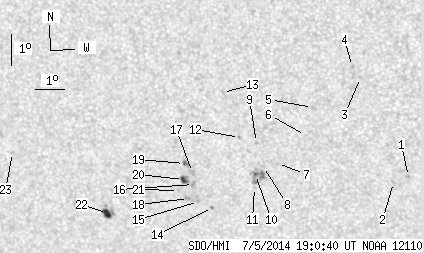

SDO HMI 2014-07-05 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.18 | 58.72 | 5.98 | 33.85 | -15.86 | 233.34 | -23.98 | 129.87 | 0.5097 | -82.6 | -151.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.70 | 240.34 | -16.98 | 139.04 | 0.4307 | 858.0 | 653.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -15.90 | 239.82 | -17.50 | 138.53 | 0.4384 | 744.0 | 505.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -12.56 | 239.01 | -18.31 | 131.50 | 0.4111 | 784.0 | 668.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -12.21 | 238.77 | -18.55 | 130.49 | 0.4105 | 776.0 | 593.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -13.54 | 237.34 | -19.98 | 130.84 | 0.4410 | 808.0 | 650.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -14.44 | 237.02 | -20.30 | 131.96 | 0.4537 | 681.0 | 556.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.36 | 235.98 | -21.34 | 132.09 | 0.4748 | 843.0 | 628.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -15.47 | 235.49 | -21.83 | 131.64 | 0.4814 | 704.0 | 545.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -14.70 | 235.34 | -21.98 | 130.19 | 0.4758 | 626.0 | 558.8 | |
| 0.73 | 9.81 | 0.41 | 5.56 | -15.73 | 235.19 | -22.13 | 131.68 | 0.4874 | 676.9 | 494.5 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -16.15 | 235.11 | -22.21 | 132.24 | 0.4925 | 465.0 | 383.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -14.55 | 234.78 | -22.54 | 129.25 | 0.4811 | 715.0 | 535.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -13.13 | 234.35 | -22.97 | 126.30 | 0.4735 | 757.0 | 568.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -16.83 | 233.57 | -23.75 | 131.44 | 0.5163 | -839.0 | -701.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -16.65 | 233.10 | -24.22 | 130.63 | 0.5198 | -846.0 | -769.9 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -16.10 | 233.00 | -24.32 | 129.67 | 0.5160 | -876.0 | -737.9 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -15.72 | 233.02 | -24.30 | 129.08 | 0.5124 | -896.0 | -844.8 | |
| 0.00 | 3.90 | 0.00 | 2.27 | -16.56 | 232.77 | -24.55 | 130.12 | 0.5229 | -984.0 | -645.0 | |
| 0.82 | 3.45 | 0.47 | 1.99 | -15.43 | 232.78 | -24.54 | 128.37 | 0.5127 | -1009.4 | -815.9 | |
| 3.09 | 5.99 | 1.79 | 3.47 | -15.95 | 232.67 | -24.65 | 129.07 | 0.5185 | -974.9 | -826.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -16.31 | 232.45 | -24.87 | 129.38 | 0.5242 | -636.0 | -556.5 | |
| 5.54 | 11.98 | 3.31 | 7.16 | -17.12 | 229.81 | -27.51 | 127.89 | 0.5615 | -879.0 | -701.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -15.24 | 226.66 | -30.66 | 122.30 | 0.5843 | -729.0 | -571.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
