SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.79 | 104.88 | 13.99 | 57.00 | 11.10 | 279.70 | 22.94 | 290.26 | 0.4093 | -582.1 | -444.4 | |
|
previous
or next observation for the same group /

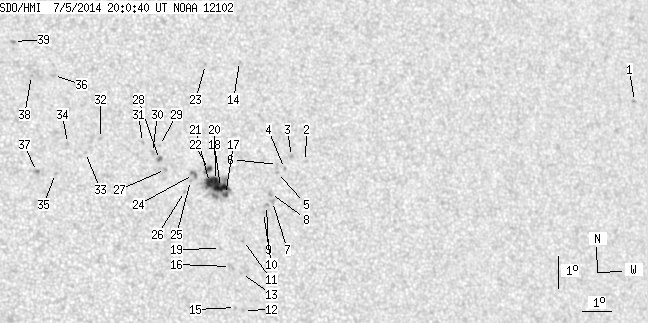

back to the solar disc SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.05 | 13.02 | 295.38 | 38.62 | 286.52 | 0.6365 | -650.0 | -525.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.56 | 282.97 | 26.21 | 288.95 | 0.4593 | -677.0 | -514.9 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 11.73 | 282.51 | 25.74 | 289.58 | 0.4532 | -758.0 | -628.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 11.37 | 282.23 | 25.46 | 288.96 | 0.4475 | -673.0 | -555.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 11.25 | 281.98 | 25.21 | 288.86 | 0.4433 | -843.0 | -685.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 11.50 | 282.00 | 25.23 | 289.38 | 0.4447 | -823.0 | -666.0 | |
| 0.00 | 2.36 | 0.00 | 1.30 | 10.36 | 281.72 | 24.96 | 287.05 | 0.4360 | -821.0 | -584.8 | |
| 0.00 | 2.36 | 0.00 | 1.30 | 10.61 | 281.68 | 24.91 | 287.63 | 0.4362 | -940.0 | -746.2 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 10.25 | 281.51 | 24.74 | 286.90 | 0.4323 | -793.0 | -780.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 10.03 | 281.39 | 24.62 | 286.49 | 0.4297 | -898.0 | -804.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 9.19 | 280.64 | 23.88 | 284.93 | 0.4153 | -994.0 | -773.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 7.05 | 280.51 | 23.74 | 279.84 | 0.4072 | -653.0 | -550.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 8.19 | 280.51 | 23.74 | 282.59 | 0.4101 | -819.0 | -676.7 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 14.71 | 281.04 | 24.27 | 296.91 | 0.4477 | -606.0 | -586.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 7.15 | 280.24 | 23.48 | 280.17 | 0.4033 | -762.0 | -541.3 | |
| 0.00 | 3.27 | 0.00 | 1.77 | 8.41 | 280.15 | 23.39 | 283.29 | 0.4052 | -683.0 | -535.8 | |
| 2.09 | 47.94 | 1.14 | 26.02 | 10.62 | 280.15 | 23.38 | 288.57 | 0.4132 | -814.1 | -588.0 | |
| 10.35 | -17.00 | 5.62 | -17.00 | 10.84 | 280.00 | 23.23 | 289.18 | 0.4119 | -1052.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 8.97 | 279.85 | 23.09 | 284.80 | 0.4023 | -765.0 | -581.7 | |
| 3.36 | -17.00 | 1.82 | -17.00 | 11.06 | 279.85 | 23.08 | 289.80 | 0.4106 | -983.0 | 999999 | |
| 6.45 | -17.00 | 3.49 | -17.00 | 11.00 | 279.64 | 22.87 | 289.81 | 0.4073 | -1197.5 | 999999 | |
| 2.72 | 4.45 | 1.48 | 2.41 | 11.40 | 279.64 | 22.87 | 290.75 | 0.4092 | -904.6 | -791.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 14.64 | 279.86 | 23.10 | 297.81 | 0.4309 | -735.0 | -632.9 | |
| 0.00 | 3.63 | 0.00 | 1.96 | 11.26 | 279.12 | 22.36 | 290.80 | 0.4007 | -878.0 | -903.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 11.08 | 279.01 | 22.24 | 290.45 | 0.3981 | -835.0 | -667.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 10.74 | 278.78 | 22.01 | 289.81 | 0.3931 | -806.0 | -708.2 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 11.43 | 278.20 | 21.43 | 291.95 | 0.3878 | -931.0 | -790.9 | |
| 0.82 | 2.45 | 0.44 | 1.32 | 11.74 | 278.02 | 21.26 | 292.86 | 0.3869 | -939.4 | -772.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 12.18 | 278.06 | 21.29 | 293.88 | 0.3899 | -708.0 | -541.8 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 11.96 | 277.81 | 21.04 | 293.59 | 0.3849 | -654.0 | -554.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 12.28 | 277.50 | 20.74 | 294.65 | 0.3822 | -567.0 | -500.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 12.43 | 276.12 | 19.35 | 296.44 | 0.3629 | 827.0 | 604.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.01 | 275.59 | 18.82 | 295.93 | 0.3524 | 694.0 | 579.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 12.30 | 275.02 | 18.25 | 297.34 | 0.3460 | 862.0 | 627.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.38 | 274.56 | 17.80 | 295.40 | 0.3331 | 664.0 | 584.6 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 14.41 | 274.72 | 17.96 | 303.06 | 0.3579 | 904.0 | 736.7 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 11.46 | 273.95 | 17.18 | 296.34 | 0.3245 | 1008.0 | 806.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.42 | 274.00 | 17.23 | 304.12 | 0.3481 | 885.0 | 729.8 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 15.49 | 273.49 | 16.73 | 307.46 | 0.3510 | 996.0 | 806.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
