SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 19.05 | 0.23 | 9.70 | 4.06 | 262.57 | 5.81 | 215.07 | 0.2014 | 460.6 | 358.0 | |
|
previous
or next observation for the same group /

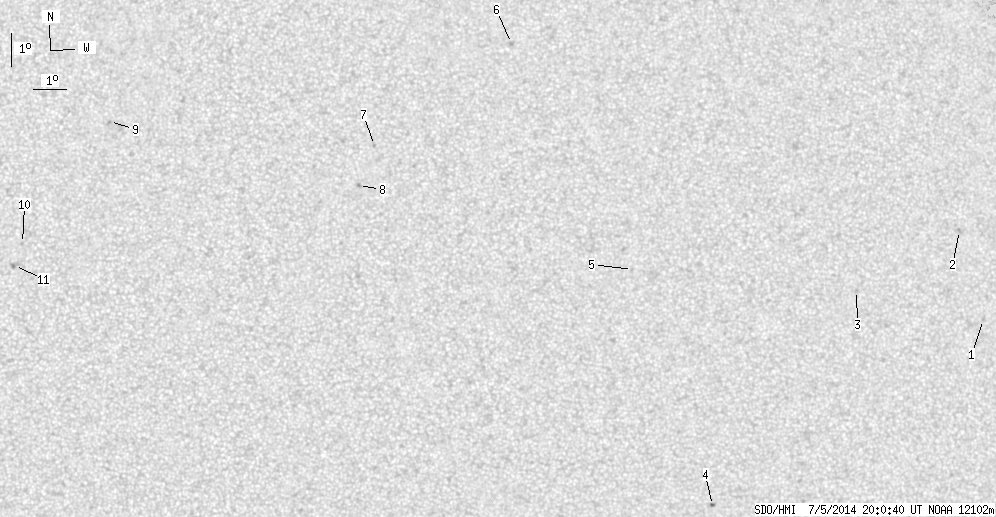

back to the solar disc SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.83 | 1.54 | 278.83 | 22.06 | 265.82 | 0.3781 | -819.0 | -592.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 4.27 | 278.10 | 21.33 | 273.14 | 0.3649 | -807.0 | -700.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 2.52 | 274.72 | 17.95 | 267.78 | 0.3095 | -767.0 | -582.5 | |
| 0.45 | 2.00 | 0.23 | 1.03 | -3.98 | 270.17 | 13.40 | 241.38 | 0.2646 | 932.8 | 802.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 3.27 | 267.67 | 10.90 | 269.81 | 0.1897 | 776.0 | 577.7 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 10.21 | 264.04 | 7.28 | 313.83 | 0.1735 | 1040.0 | 763.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.11 | 259.75 | 2.99 | 321.69 | 0.0838 | 845.0 | 694.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 5.89 | 259.25 | 2.49 | 315.68 | 0.0621 | 1037.0 | 862.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.85 | 251.60 | -5.16 | 48.66 | 0.1193 | 881.0 | 758.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.11 | 248.96 | -7.81 | 84.26 | 0.1368 | 894.0 | 574.2 | |
| 0.00 | 3.90 | 0.00 | 1.95 | 3.44 | 248.72 | -8.05 | 89.21 | 0.1404 | 945.0 | 589.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
