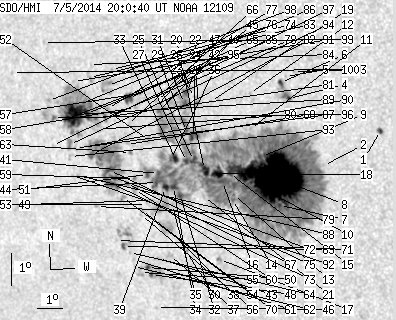

SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 350.35 | 1730.86 | 222.51 | 1103.48 | -7.81 | 219.63 | -37.14 | 107.01 | 0.6270 | 381.5 | 20.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 3.09 | 1.17 | 1.81 | -6.44 | 225.97 | -30.79 | 107.67 | 0.5360 | 832.6 | 642.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.59 | 223.82 | -32.95 | 108.52 | 0.5707 | 367.0 | 328.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -4.71 | 222.92 | -33.84 | 103.24 | 0.5723 | -658.0 | -490.1 | |
| 1.36 | 15.16 | 0.83 | 9.20 | -5.55 | 222.68 | -34.08 | 104.57 | 0.5784 | 316.5 | -427.9 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -4.88 | 222.62 | -34.15 | 103.40 | 0.5771 | -664.0 | -541.4 | |
| 2.00 | -4.00 | 1.21 | -4.00 | -5.07 | 222.42 | -34.34 | 103.65 | 0.5805 | -766.8 | 999999 | |
| 1.45 | 1258.36 | 0.90 | 787.60 | -8.89 | 222.05 | -34.71 | 109.74 | 0.5999 | 816.2 | 215.7 | |
| 192.66 | -7.00 | 118.83 | -7.00 | -8.02 | 221.96 | -34.81 | 108.30 | 0.5976 | 1401.8 | 999999 | |
| 3.54 | -7.00 | 2.19 | -7.00 | -7.38 | 221.53 | -35.24 | 107.08 | 0.6008 | 502.6 | 999999 | |
| 0.27 | -7.00 | 0.17 | -7.00 | -8.21 | 221.07 | -35.70 | 108.18 | 0.6101 | 680.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -6.53 | 221.19 | -35.58 | 105.56 | 0.6022 | 243.0 | 228.4 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -5.45 | 221.23 | -35.53 | 103.82 | 0.5979 | 743.0 | 619.4 | |
| 0.54 | -7.00 | 0.34 | -7.00 | -8.61 | 220.34 | -36.43 | 108.46 | 0.6212 | 606.0 | 999999 | |
| 1.27 | -7.00 | 0.80 | -7.00 | -8.76 | 220.28 | -36.48 | 108.68 | 0.6226 | 507.6 | 999999 | |
| 0.27 | -7.00 | 0.17 | -7.00 | -7.96 | 220.25 | -36.51 | 107.42 | 0.6198 | 708.7 | 999999 | |
| 3.09 | -7.00 | 1.95 | -7.00 | -8.21 | 219.96 | -36.81 | 107.69 | 0.6246 | -315.9 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.64 | -10.66 | 219.53 | -37.24 | 111.20 | 0.6401 | 881.0 | 621.2 | |
| 9.53 | -7.00 | 6.04 | -7.00 | -7.97 | 219.79 | -36.97 | 107.24 | 0.6259 | 801.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -5.75 | 219.73 | -37.04 | 103.74 | 0.6192 | -624.0 | -448.7 | |
| 8.44 | -7.00 | 5.38 | -7.00 | -7.86 | 219.30 | -37.47 | 106.87 | 0.6319 | 825.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.11 | -8.71 | 219.16 | -37.60 | 108.10 | 0.6368 | -538.0 | -418.9 | |
| 0.54 | 3.45 | 0.35 | 2.19 | -5.79 | 219.22 | -37.54 | 103.63 | 0.6260 | -534.0 | -200.5 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -5.64 | 219.16 | -37.61 | 103.37 | 0.6265 | -670.0 | -459.1 | |
| 5.90 | -7.00 | 3.77 | -7.00 | -6.85 | 218.97 | -37.79 | 105.19 | 0.6327 | 504.5 | 999999 | |
| 4.36 | -7.00 | 2.79 | -7.00 | -7.60 | 218.90 | -37.87 | 106.30 | 0.6362 | 827.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -5.40 | 219.02 | -37.74 | 102.95 | 0.6276 | -543.0 | -318.5 | |
| 2.18 | -7.00 | 1.40 | -7.00 | -7.64 | 218.62 | -38.14 | 106.25 | 0.6399 | 616.6 | 999999 | |
| 2.91 | 32.32 | 1.85 | 20.66 | -5.50 | 218.82 | -37.95 | 103.04 | 0.6305 | -487.0 | 63.4 | |
| 1.18 | -7.00 | 0.76 | -7.00 | -6.71 | 218.71 | -38.05 | 104.87 | 0.6356 | 695.3 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -10.46 | 218.26 | -38.51 | 110.29 | 0.6550 | 493.0 | 364.6 | |
| 3.36 | -28.00 | 2.14 | -28.00 | -5.84 | 218.71 | -38.05 | 103.53 | 0.6329 | 793.0 | 999999 | |
| 3.27 | -7.00 | 2.12 | -7.00 | -8.71 | 218.26 | -38.50 | 107.71 | 0.6483 | -897.5 | 999999 | |
| 4.09 | -7.00 | 2.64 | -7.00 | -7.56 | 218.20 | -38.57 | 105.97 | 0.6451 | 665.2 | 999999 | |
| 4.18 | -7.00 | 2.72 | -7.00 | -8.44 | 218.02 | -38.75 | 107.21 | 0.6504 | -1089.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -9.00 | 217.91 | -38.86 | 108.00 | 0.6538 | -850.0 | -686.2 | |
| 1.45 | -7.00 | 0.94 | -7.00 | -7.60 | 217.99 | -38.77 | 105.95 | 0.6478 | 466.2 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.70 | -10.61 | 217.56 | -39.21 | 110.19 | 0.6643 | -403.0 | -343.8 | |
| 0.00 | 14.62 | 0.00 | 9.62 | -9.73 | 217.57 | -39.20 | 108.93 | 0.6608 | -406.0 | -333.2 | |
| 3.63 | -7.00 | 2.37 | -7.00 | -8.48 | 217.69 | -39.07 | 107.14 | 0.6546 | -1036.6 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.88 | -5.94 | 217.84 | -38.92 | 103.38 | 0.6446 | 72.0 | 58.5 | |
| 2.09 | -7.00 | 1.37 | -7.00 | -8.06 | 217.47 | -39.30 | 106.42 | 0.6560 | -461.9 | 999999 | |
| 1.18 | -7.00 | 0.77 | -7.00 | -6.13 | 217.67 | -39.10 | 103.61 | 0.6474 | -510.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -10.72 | 217.10 | -39.67 | 110.14 | 0.6703 | -823.0 | -676.9 | |
| 5.08 | -7.00 | 3.34 | -7.00 | -8.34 | 217.39 | -39.37 | 106.81 | 0.6579 | -933.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -5.79 | 217.62 | -39.15 | 103.08 | 0.6471 | -131.0 | -184.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -12.28 | 216.75 | -40.02 | 112.18 | 0.6808 | -704.0 | -589.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -5.98 | 217.60 | -39.16 | 103.36 | 0.6478 | -242.0 | -191.8 | |
| 1.63 | 16.25 | 1.10 | 10.87 | -11.24 | 216.73 | -40.04 | 110.71 | 0.6768 | -715.2 | -600.8 | |
| 0.00 | 1.73 | 0.00 | 1.14 | -8.91 | 217.08 | -39.69 | 107.52 | 0.6638 | -690.0 | -657.4 | |
| 1.63 | -48.00 | 1.10 | -48.00 | -11.02 | 216.60 | -40.16 | 110.35 | 0.6775 | -948.7 | 999999 | |
| 2.09 | -7.00 | 1.38 | -7.00 | -8.10 | 217.02 | -39.74 | 106.32 | 0.6618 | -773.0 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.38 | -7.01 | 217.14 | -39.62 | 104.76 | 0.6568 | -426.0 | -335.7 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -9.04 | 216.86 | -39.90 | 107.63 | 0.6670 | -610.0 | -552.1 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -9.24 | 216.63 | -40.13 | 107.82 | 0.6706 | -686.0 | -600.9 | |
| 0.00 | 4.90 | 0.00 | 3.31 | -11.19 | 216.29 | -40.48 | 110.45 | 0.6820 | -522.0 | -531.7 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -9.37 | 216.57 | -40.19 | 107.98 | 0.6717 | -499.0 | -511.9 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -5.60 | 216.96 | -39.81 | 102.58 | 0.6551 | -789.0 | -727.8 | |
| 0.00 | 1.73 | 0.00 | 1.13 | -6.04 | 216.76 | -40.01 | 103.18 | 0.6589 | -505.0 | -443.9 | |
| 0.54 | 2.09 | 0.36 | 1.39 | -8.25 | 216.48 | -40.29 | 106.33 | 0.6691 | -830.0 | -741.1 | |
| 0.00 | 3.09 | 0.00 | 2.06 | -8.59 | 216.43 | -40.33 | 106.81 | 0.6708 | -740.0 | -671.1 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -10.79 | 216.07 | -40.70 | 109.80 | 0.6831 | -722.0 | -613.3 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -11.01 | 216.03 | -40.74 | 110.09 | 0.6844 | -370.0 | -378.6 | |
| 0.45 | 1.91 | 0.30 | 1.26 | -7.44 | 216.41 | -40.35 | 105.13 | 0.6674 | 382.6 | 244.6 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -10.58 | 215.94 | -40.83 | 109.44 | 0.6838 | -550.0 | -434.1 | |
| 6.36 | 8.53 | 4.19 | 5.62 | -5.77 | 216.50 | -40.26 | 102.70 | 0.6614 | -898.7 | -641.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -6.58 | 216.38 | -40.38 | 103.85 | 0.6652 | -651.0 | -572.1 | |
| 0.91 | 2.54 | 0.61 | 1.70 | -8.42 | 216.13 | -40.63 | 106.44 | 0.6739 | -799.5 | -660.9 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -7.20 | 216.28 | -40.49 | 104.73 | 0.6683 | -209.0 | -237.5 | |
| 1.54 | 16.61 | 1.05 | 11.24 | -10.40 | 215.72 | -41.04 | 109.10 | 0.6858 | -616.6 | -595.9 | |
| 0.00 | 3.18 | 0.00 | 2.14 | -8.86 | 215.91 | -40.85 | 107.00 | 0.6782 | -720.0 | -592.0 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -10.22 | 215.46 | -41.30 | 108.75 | 0.6883 | -220.0 | -160.8 | |
| 2.18 | 115.03 | 1.47 | 77.54 | -8.25 | 215.62 | -41.14 | 106.02 | 0.6797 | -1005.6 | -657.0 | |
| 7.63 | -72.00 | 5.15 | -72.00 | -8.44 | 215.52 | -41.25 | 106.25 | 0.6816 | -739.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -4.90 | 215.88 | -40.88 | 101.23 | 0.6671 | -801.0 | -679.7 | |
| 7.99 | -72.00 | 5.39 | -72.00 | -8.04 | 215.49 | -41.28 | 105.67 | 0.6807 | -897.9 | 999999 | |
| 0.00 | 14.80 | 0.00 | 9.86 | -5.40 | 215.68 | -41.08 | 101.91 | 0.6709 | -538.0 | -550.0 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -6.11 | 215.62 | -41.15 | 102.93 | 0.6736 | -767.0 | -685.8 | |
| 1.36 | 3.54 | 0.91 | 2.37 | -6.39 | 215.51 | -41.26 | 103.31 | 0.6757 | -915.0 | -765.3 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -9.18 | 214.79 | -41.97 | 107.04 | 0.6928 | -589.0 | -539.9 | |
| 0.00 | 3.72 | 0.00 | 2.51 | -6.78 | 215.10 | -41.67 | 103.74 | 0.6819 | -274.0 | -376.7 | |
| 1.00 | 125.75 | 0.67 | 85.77 | -6.44 | 215.09 | -41.67 | 103.25 | 0.6810 | -901.1 | -482.6 | |
| 3.63 | -72.00 | 2.47 | -72.00 | -7.57 | 214.80 | -41.96 | 104.76 | 0.6878 | -846.9 | 999999 | |
| 0.00 | 4.45 | 0.00 | 3.00 | -5.18 | 214.96 | -41.80 | 101.39 | 0.6794 | -675.0 | -557.7 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -4.78 | 214.99 | -41.77 | 100.81 | 0.6781 | -424.0 | -464.0 | |
| 5.36 | -81.00 | 3.63 | -81.00 | -6.30 | 214.74 | -42.03 | 102.94 | 0.6851 | -1112.8 | 999999 | |
| 1.82 | -81.00 | 1.23 | -81.00 | -5.97 | 214.64 | -42.12 | 102.43 | 0.6854 | -895.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -7.37 | 214.37 | -42.40 | 104.34 | 0.6925 | -626.0 | -578.7 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -8.25 | 214.13 | -42.64 | 105.50 | 0.6979 | -639.0 | -482.8 | |
| 26.15 | -81.00 | 17.87 | -81.00 | -6.35 | 214.27 | -42.49 | 102.87 | 0.6909 | -950.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -7.41 | 214.15 | -42.61 | 104.33 | 0.6952 | -591.0 | -562.5 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -5.33 | 214.29 | -42.48 | 101.42 | 0.6882 | -223.0 | -195.8 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -8.25 | 213.92 | -42.85 | 105.44 | 0.7005 | -496.0 | -425.5 | |
| 0.00 | 2.81 | 0.00 | 1.94 | -7.66 | 213.91 | -42.85 | 104.61 | 0.6989 | -509.0 | -449.0 | |
| 0.00 | 5.54 | 0.00 | 3.82 | -7.29 | 213.91 | -42.85 | 104.09 | 0.6978 | -633.0 | -512.9 | |
| 5.08 | -81.00 | 3.50 | -81.00 | -6.49 | 213.92 | -42.84 | 102.96 | 0.6956 | -665.9 | 999999 | |
| 1.18 | 12.89 | 0.82 | 8.98 | -6.48 | 213.33 | -43.43 | 102.78 | 0.7027 | -633.2 | -6.2 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -7.35 | 213.19 | -43.58 | 103.96 | 0.7067 | -357.0 | -208.3 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -5.96 | 213.18 | -43.59 | 102.01 | 0.7034 | 195.0 | 148.9 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -4.18 | 213.12 | -43.64 | 99.49 | 0.7002 | -446.0 | -372.0 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -5.16 | 211.71 | -45.06 | 100.53 | 0.7193 | -416.0 | -326.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
