SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.71 | 63.85 | 7.93 | 36.62 | -16.09 | 233.53 | -23.24 | 131.18 | 0.5041 | -1.3 | -120.4 | |
|
previous
or next observation for the same group /

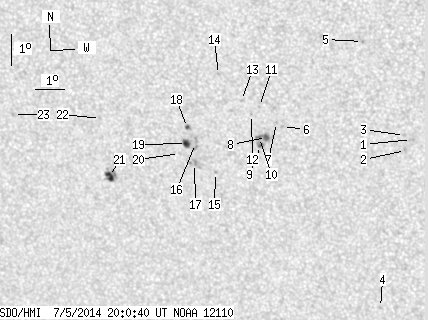

back to the solar disc SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.09 | -15.68 | 240.31 | -16.45 | 139.92 | 0.4252 | 756.0 | 662.0 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -16.04 | 240.09 | -16.68 | 140.09 | 0.4317 | 487.0 | 476.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.55 | 240.09 | -16.67 | 139.35 | 0.4260 | 763.0 | 567.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.22 | 238.68 | -18.08 | 145.01 | 0.5065 | 525.0 | 519.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -12.57 | 238.95 | -17.82 | 132.31 | 0.4055 | 938.0 | 817.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.34 | 236.04 | -20.72 | 132.89 | 0.4677 | 835.0 | 694.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.21 | 235.85 | -20.91 | 132.43 | 0.4686 | 864.0 | 663.0 | |
| 2.00 | 13.62 | 1.13 | 7.68 | -15.71 | 235.46 | -21.31 | 132.70 | 0.4779 | 957.2 | 479.8 | |
| 1.00 | -8.00 | 0.56 | -8.00 | -15.97 | 235.22 | -21.54 | 132.82 | 0.4832 | 466.2 | 999999 | |
| 0.91 | -8.00 | 0.51 | -8.00 | -15.71 | 235.22 | -21.55 | 132.40 | 0.4807 | 659.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.71 | 235.33 | -21.44 | 130.91 | 0.4696 | 576.0 | 553.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -14.98 | 235.03 | -21.74 | 130.96 | 0.4757 | 599.0 | 500.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -14.53 | 234.74 | -22.03 | 129.86 | 0.4749 | 755.0 | 610.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.72 | 234.04 | -22.72 | 127.63 | 0.4758 | 584.0 | 387.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -16.88 | 233.56 | -23.20 | 132.17 | 0.5106 | -806.0 | -678.6 | |
| 0.00 | 4.90 | 0.00 | 2.82 | -15.95 | 232.99 | -23.77 | 130.07 | 0.5085 | -750.0 | -734.6 | |
| 0.00 | 6.63 | 0.00 | 3.83 | -16.60 | 232.87 | -23.89 | 130.94 | 0.5158 | -742.0 | -678.6 | |
| 1.00 | 2.36 | 0.57 | 1.35 | -15.44 | 232.78 | -23.99 | 129.02 | 0.5063 | -938.9 | -763.7 | |
| 3.99 | 5.90 | 2.30 | 3.40 | -15.96 | 232.68 | -24.09 | 129.72 | 0.5121 | -1009.1 | -751.9 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -16.29 | 232.39 | -24.37 | 129.91 | 0.5184 | -692.0 | -595.8 | |
| 4.81 | 12.08 | 2.86 | 7.18 | -17.10 | 229.80 | -26.97 | 128.40 | 0.5552 | -919.3 | -699.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -15.23 | 229.76 | -27.01 | 125.51 | 0.5404 | -366.0 | -364.2 | |
| 0.00 | 2.00 | 0.00 | 1.21 | -15.19 | 226.63 | -30.13 | 122.66 | 0.5776 | -552.0 | -492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
