SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.32 | 148.34 | 24.05 | 123.23 | 6.35 | 203.36 | -53.41 | 84.58 | 0.8035 | -517.2 | -129.9 | |
|
previous
or next observation for the same group /

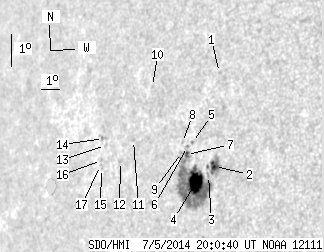

back to the solar disc SDO HMI 2014-07-05 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.03 | 9.53 | 204.29 | -52.47 | 80.56 | 0.7951 | -319.0 | -215.4 | |
| 5.08 | 16.98 | 4.10 | 13.68 | 6.65 | 204.56 | -52.20 | 84.18 | 0.7911 | -889.5 | -541.1 | |
| 0.00 | 1.54 | 0.00 | 1.25 | 6.36 | 204.30 | -52.46 | 84.55 | 0.7938 | -554.0 | -608.3 | |
| 22.88 | 112.94 | 18.81 | 93.25 | 6.12 | 203.68 | -53.09 | 84.87 | 0.8004 | -907.3 | -135.6 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 7.33 | 203.33 | -53.43 | 83.36 | 0.8042 | -407.0 | -376.0 | |
| 0.00 | 1.00 | 0.00 | 0.83 | 7.20 | 203.09 | -53.67 | 83.53 | 0.8066 | -347.0 | -270.2 | |
| 1.36 | -4.00 | 1.14 | -4.00 | 6.95 | 203.08 | -53.68 | 83.84 | 0.8066 | -461.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.76 | 7.31 | 202.81 | -53.95 | 83.40 | 0.8095 | -145.0 | -87.9 | |
| 0.00 | 1.54 | 0.00 | 1.30 | 7.00 | 202.81 | -53.95 | 83.78 | 0.8094 | 276.0 | 219.1 | |
| 0.00 | 0.82 | 0.00 | 0.72 | 8.94 | 200.87 | -55.90 | 81.48 | 0.8293 | 347.0 | 319.4 | |
| 0.00 | 1.36 | 0.00 | 1.22 | 7.24 | 200.16 | -56.60 | 83.53 | 0.8356 | 149.0 | 90.9 | |
| 0.00 | 1.63 | 0.00 | 1.49 | 6.57 | 199.55 | -57.21 | 84.35 | 0.8413 | 171.0 | 242.6 | |
| 0.00 | 1.63 | 0.00 | 1.53 | 7.02 | 198.60 | -58.16 | 83.83 | 0.8502 | 481.0 | 412.8 | |
| 0.00 | 2.45 | 0.00 | 2.30 | 7.22 | 198.44 | -58.32 | 83.58 | 0.8516 | 524.0 | 498.4 | |
| 0.00 | 0.73 | 0.00 | 0.68 | 6.31 | 198.50 | -58.27 | 84.66 | 0.8511 | 512.0 | 450.4 | |
| 0.00 | 1.63 | 0.00 | 1.54 | 6.55 | 198.46 | -58.31 | 84.38 | 0.8515 | 430.0 | 378.2 | |
| 0.00 | 0.64 | 0.00 | 0.60 | 6.39 | 198.42 | -58.34 | 84.56 | 0.8518 | 441.0 | 435.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
