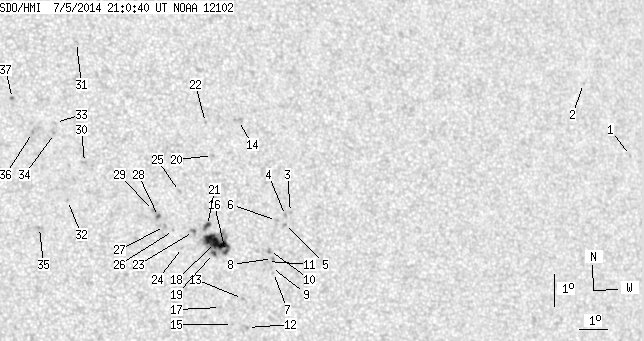

SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.23 | 100.44 | 13.75 | 54.83 | 11.51 | 279.74 | 23.53 | 290.72 | 0.4202 | -572.3 | -428.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.47 | 13.10 | 295.36 | 39.15 | 286.48 | 0.6436 | -646.0 | -558.0 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.40 | 293.94 | 37.73 | 290.48 | 0.6320 | -525.0 | -472.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 11.75 | 282.51 | 26.30 | 289.28 | 0.4614 | -726.0 | -556.9 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 11.66 | 282.32 | 26.11 | 289.21 | 0.4583 | -833.0 | -694.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 11.39 | 282.26 | 26.05 | 288.66 | 0.4563 | -743.0 | -583.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 11.52 | 282.00 | 25.79 | 289.09 | 0.4529 | -755.0 | -630.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 9.93 | 281.75 | 25.54 | 285.76 | 0.4430 | -619.0 | -448.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 10.36 | 281.75 | 25.54 | 286.71 | 0.4446 | -759.0 | -654.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 10.08 | 281.69 | 25.48 | 286.13 | 0.4428 | -660.0 | -566.2 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 10.60 | 281.67 | 25.46 | 287.29 | 0.4444 | -917.0 | -728.1 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 10.27 | 281.57 | 25.36 | 286.61 | 0.4416 | -891.0 | -761.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 8.27 | 280.73 | 24.52 | 282.44 | 0.4224 | -733.0 | -639.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 9.16 | 280.63 | 24.42 | 284.56 | 0.4234 | -905.0 | -744.7 | |
| 0.00 | 3.90 | 0.00 | 2.17 | 14.64 | 281.03 | 24.82 | 296.30 | 0.4549 | -699.0 | -584.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 8.37 | 280.23 | 24.02 | 282.90 | 0.4149 | -837.0 | -740.9 | |
| 1.54 | 47.58 | 0.84 | 25.93 | 10.61 | 280.17 | 23.96 | 288.18 | 0.4218 | -723.3 | -556.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 8.90 | 279.86 | 23.66 | 284.33 | 0.4108 | -810.0 | -613.5 | |
| 19.52 | -16.00 | 10.64 | -16.00 | 10.90 | 279.85 | 23.64 | 289.03 | 0.4183 | -1073.4 | 999999 | |
| 1.54 | -16.00 | 0.84 | -16.00 | 10.56 | 279.75 | 23.55 | 288.31 | 0.4154 | -1003.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 13.58 | 280.01 | 23.80 | 294.90 | 0.4343 | -587.0 | -418.3 | |
| 2.09 | 4.09 | 1.14 | 2.22 | 11.42 | 279.63 | 23.42 | 290.40 | 0.4174 | -909.9 | -849.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 14.61 | 279.88 | 23.67 | 297.20 | 0.4387 | -702.0 | -584.0 | |
| 0.00 | 3.54 | 0.00 | 1.92 | 11.25 | 279.14 | 22.93 | 290.35 | 0.4092 | -1118.0 | -906.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 10.77 | 278.73 | 22.52 | 289.50 | 0.4008 | -843.0 | -667.1 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 12.49 | 278.78 | 22.57 | 293.51 | 0.4103 | -596.0 | -416.3 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 11.30 | 278.47 | 22.26 | 290.95 | 0.3994 | -743.0 | -559.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 11.43 | 278.18 | 21.97 | 291.49 | 0.3957 | -853.0 | -802.8 | |
| 0.54 | 2.00 | 0.29 | 1.08 | 11.74 | 278.00 | 21.79 | 292.38 | 0.3948 | -1018.8 | -901.1 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 11.93 | 277.85 | 21.64 | 292.96 | 0.3935 | -794.0 | -653.0 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 13.46 | 275.68 | 19.47 | 298.83 | 0.3716 | 802.0 | 653.9 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 17.20 | 275.78 | 19.57 | 307.13 | 0.4031 | 769.0 | 545.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.30 | 275.02 | 18.81 | 296.67 | 0.3541 | 899.0 | 654.3 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 14.72 | 274.82 | 18.62 | 302.90 | 0.3693 | 610.0 | 515.0 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 14.38 | 274.76 | 18.55 | 302.17 | 0.3657 | 837.0 | 755.8 | |
| 0.00 | 2.91 | 0.00 | 1.53 | 11.48 | 274.04 | 17.83 | 295.62 | 0.3343 | 1006.0 | 754.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 14.42 | 274.04 | 17.83 | 303.26 | 0.3561 | 883.0 | 796.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 15.49 | 273.47 | 17.26 | 306.63 | 0.3578 | 958.0 | 773.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
