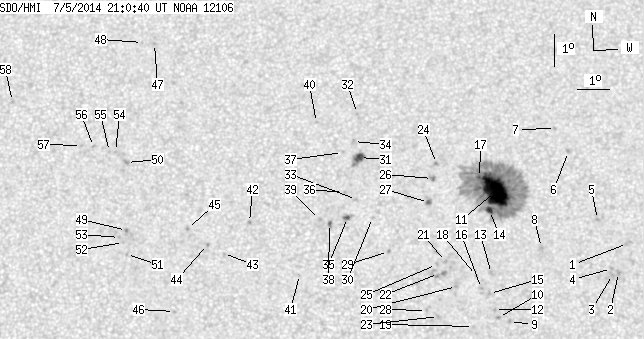

SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.82 | 390.59 | 31.94 | 198.58 | 15.03 | 260.81 | 4.60 | 339.25 | 0.2232 | -449.0 | -303.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.63 | 0.00 | 1.85 | 13.61 | 265.93 | 9.72 | 317.44 | 0.2436 | -861.0 | -667.9 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 12.72 | 265.60 | 9.39 | 315.71 | 0.2290 | -969.0 | -788.4 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 12.66 | 265.41 | 9.20 | 316.10 | 0.2260 | -1018.0 | -775.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.84 | 265.39 | 9.18 | 316.75 | 0.2280 | -945.0 | -731.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.36 | 265.00 | 8.79 | 322.27 | 0.2431 | -1104.0 | -868.8 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 16.49 | 264.17 | 7.96 | 329.75 | 0.2646 | -916.0 | -700.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.22 | 263.78 | 7.57 | 332.31 | 0.2720 | -1059.0 | -727.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.51 | 263.20 | 6.99 | 326.17 | 0.2135 | -863.0 | -707.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.24 | 262.13 | 5.92 | 323.58 | 0.1713 | -859.0 | -553.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.36 | 261.79 | 5.58 | 325.61 | 0.1696 | -885.0 | -654.2 | |
| 50.75 | 287.72 | 25.82 | 146.41 | 15.26 | 261.79 | 5.58 | 335.54 | 0.2277 | -1492.7 | -411.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.61 | 261.67 | 5.46 | 327.00 | 0.1720 | -1017.0 | -789.6 | |
| 0.00 | 2.81 | 0.00 | 1.42 | 12.72 | 261.60 | 5.39 | 330.60 | 0.1876 | -810.0 | -617.0 | |
| 3.54 | -11.00 | 1.80 | -11.00 | 14.67 | 261.59 | 5.38 | 335.20 | 0.2172 | -1203.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.10 | 261.53 | 5.32 | 329.22 | 0.1779 | -977.0 | -780.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.26 | 261.28 | 5.07 | 330.84 | 0.1780 | -854.0 | -714.7 | |
| 0.27 | -11.00 | 0.14 | -11.00 | 15.70 | 261.30 | 5.09 | 338.23 | 0.2313 | -1007.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.66 | 261.13 | 4.92 | 332.63 | 0.1829 | -925.0 | -712.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.09 | 261.01 | 4.80 | 328.62 | 0.1584 | 791.0 | 536.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.33 | 260.50 | 4.29 | 334.88 | 0.1729 | -993.0 | -852.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.10 | 260.17 | 3.96 | 338.32 | 0.1829 | -975.0 | -843.1 | |
| 0.00 | 7.26 | 0.00 | 3.65 | 12.73 | 259.94 | 3.73 | 338.68 | 0.1755 | -699.0 | -840.8 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.40 | 259.92 | 3.71 | 335.59 | 0.1543 | -923.0 | -622.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 16.15 | 259.94 | 3.73 | 344.22 | 0.2310 | 479.0 | 411.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.01 | 259.88 | 3.68 | 339.56 | 0.1796 | -801.0 | -713.5 | |
| 0.00 | 2.91 | 0.00 | 1.48 | 15.68 | 259.81 | 3.60 | 344.19 | 0.2227 | 1150.0 | 895.2 | |
| 0.91 | 2.72 | 0.46 | 1.38 | 14.93 | 259.67 | 3.46 | 343.80 | 0.2098 | -1203.0 | -916.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.59 | 259.55 | 3.34 | 338.24 | 0.1548 | -726.0 | -610.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.42 | 258.39 | 2.18 | 348.04 | 0.1792 | -952.0 | -775.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.47 | 257.89 | 1.68 | 351.59 | 0.1956 | -806.0 | -609.1 | |
| 5.36 | 11.26 | 2.72 | 5.72 | 16.34 | 257.50 | 1.29 | 354.51 | 0.2266 | 1112.5 | 909.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.72 | 257.45 | 1.24 | 355.26 | 0.2499 | 815.0 | 636.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.03 | 257.39 | 1.18 | 354.36 | 0.2041 | 757.0 | 529.9 | |
| 0.00 | 2.91 | 0.00 | 1.48 | 16.84 | 257.31 | 1.10 | 355.48 | 0.2348 | 720.0 | 604.5 | |
| 1.45 | 4.27 | 0.73 | 2.15 | 14.47 | 257.11 | 0.90 | 355.50 | 0.1941 | 845.6 | 519.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.25 | 257.02 | 0.81 | 356.22 | 0.2073 | 846.0 | 655.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.50 | 256.96 | 0.75 | 356.84 | 0.2285 | 530.0 | 474.2 | |
| 0.54 | 2.09 | 0.27 | 1.05 | 14.29 | 256.54 | 0.33 | 358.31 | 0.1904 | 1021.8 | 839.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 14.41 | 256.22 | 0.01 | 359.93 | 0.1924 | 766.0 | 678.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.44 | 256.13 | -0.07 | 0.29 | 0.2442 | 806.0 | 694.7 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 12.71 | 255.60 | -0.61 | 3.66 | 0.1634 | 684.0 | 549.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.32 | 254.02 | -2.18 | 11.00 | 0.1944 | -800.0 | -602.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.36 | 253.22 | -2.99 | 16.31 | 0.1816 | 691.0 | 550.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.64 | 252.71 | -3.50 | 18.38 | 0.1888 | 904.0 | 729.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 14.13 | 252.08 | -4.13 | 20.51 | 0.2004 | 1061.0 | 828.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.56 | 251.71 | -4.50 | 28.30 | 0.1629 | 870.0 | 679.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.93 | 250.88 | -5.33 | 17.02 | 0.2997 | 806.0 | 626.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 19.96 | 250.49 | -5.72 | 18.15 | 0.3021 | 715.0 | 587.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.06 | 250.15 | -6.06 | 28.84 | 0.2131 | 937.0 | 785.5 | |
| 0.00 | 2.91 | 0.00 | 1.48 | 16.18 | 250.10 | -6.11 | 24.74 | 0.2455 | 996.0 | 773.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.32 | 250.17 | -6.04 | 30.60 | 0.2020 | 834.0 | 557.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.69 | 250.07 | -6.14 | 30.08 | 0.2083 | 721.0 | 609.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.84 | 249.94 | -6.27 | 30.21 | 0.2117 | 886.0 | 706.6 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 16.52 | 249.73 | -6.48 | 25.39 | 0.2533 | 915.0 | 773.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.52 | 249.54 | -6.67 | 26.04 | 0.2547 | 807.0 | 643.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.67 | 249.02 | -7.19 | 27.46 | 0.2610 | 775.0 | 657.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.70 | 248.64 | -7.57 | 28.64 | 0.2645 | 730.0 | 526.0 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 18.07 | 246.34 | -9.86 | 32.62 | 0.3035 | 830.0 | 631.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
