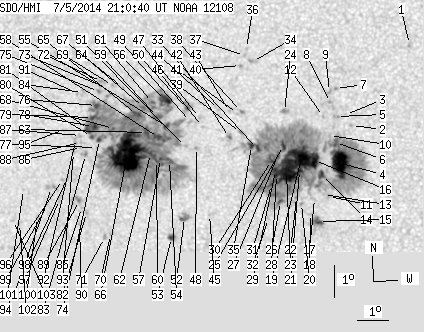

SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 304.61 | 1471.39 | 161.41 | 780.30 | -7.29 | 238.41 | -17.80 | 121.51 | 0.3562 | -0.8 | -33.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.16 | -3.88 | 244.86 | -11.35 | 122.50 | 0.2338 | 829.0 | 621.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.40 | 242.99 | -13.22 | 126.50 | 0.2839 | 462.0 | 430.6 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -6.06 | 242.81 | -13.40 | 125.16 | 0.2830 | 602.0 | 469.2 | |
| 30.69 | 631.55 | 15.94 | 329.84 | -7.58 | 242.61 | -13.60 | 128.94 | 0.3010 | 1399.4 | 468.8 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -6.13 | 242.53 | -13.68 | 124.78 | 0.2876 | 823.0 | 694.7 | |
| 3.09 | -4.00 | 1.60 | -4.00 | -6.93 | 242.47 | -13.74 | 126.92 | 0.2962 | 873.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.26 | 242.52 | -13.69 | 122.20 | 0.2798 | -1008.0 | -836.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -5.70 | 242.35 | -13.86 | 123.18 | 0.2860 | -831.0 | -661.1 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -5.36 | 242.33 | -13.88 | 122.13 | 0.2833 | -859.0 | -729.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.72 | 242.29 | -13.92 | 125.98 | 0.2965 | 336.0 | 278.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.61 | 242.19 | -14.02 | 130.68 | 0.3172 | 59.0 | 93.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.13 | 242.12 | -14.09 | 124.00 | 0.2933 | 740.0 | 595.4 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -8.55 | 242.04 | -14.17 | 130.22 | 0.3185 | 680.0 | 557.3 | |
| 4.18 | -4.00 | 2.18 | -4.00 | -7.93 | 242.00 | -14.21 | 128.60 | 0.3126 | 950.3 | 999999 | |
| 3.45 | 11.62 | 1.81 | 6.10 | -9.40 | 241.84 | -14.37 | 131.83 | 0.3300 | 1086.8 | 649.4 | |
| 10.35 | -4.00 | 5.39 | -4.00 | -7.50 | 241.79 | -14.42 | 127.10 | 0.3109 | 1348.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -8.68 | 241.74 | -14.47 | 129.96 | 0.3236 | 436.0 | 296.3 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -9.15 | 241.60 | -14.61 | 130.79 | 0.3304 | 714.0 | 555.2 | |
| 34.32 | -4.00 | 17.91 | -4.00 | -7.41 | 241.38 | -14.83 | 126.10 | 0.3155 | 1403.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.84 | 241.32 | -14.89 | 129.54 | 0.3306 | 661.0 | 542.8 | |
| 3.18 | -4.00 | 1.66 | -4.00 | -7.82 | 241.30 | -14.91 | 126.99 | 0.3205 | 1177.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -8.66 | 241.17 | -15.04 | 128.82 | 0.3307 | 790.0 | 637.2 | |
| 36.50 | -4.00 | 19.12 | -4.00 | -7.85 | 240.88 | -15.32 | 126.33 | 0.3264 | 1120.0 | 999999 | |
| 0.00 | 4.27 | 0.00 | 2.22 | -6.00 | 240.89 | -15.32 | 121.43 | 0.3094 | 920.0 | 782.0 | |
| 3.54 | -4.00 | 1.85 | -4.00 | -7.05 | 240.82 | -15.39 | 124.16 | 0.3197 | 1065.1 | 999999 | |
| 2.00 | -4.00 | 1.05 | -4.00 | -8.79 | 240.65 | -15.56 | 128.19 | 0.3387 | 685.0 | 999999 | |
| 2.09 | -4.00 | 1.09 | -4.00 | -7.36 | 240.62 | -15.59 | 124.62 | 0.3253 | 1019.1 | 999999 | |
| 2.81 | -4.00 | 1.48 | -4.00 | -7.95 | 240.56 | -15.65 | 126.01 | 0.3317 | 1043.0 | 999999 | |
| 3.27 | -4.00 | 1.72 | -4.00 | -7.83 | 240.53 | -15.67 | 125.65 | 0.3308 | 1023.8 | 999999 | |
| 1.91 | -4.00 | 1.00 | -4.00 | -7.52 | 240.42 | -15.79 | 124.68 | 0.3295 | 945.0 | 999999 | |
| 2.09 | -4.00 | 1.10 | -4.00 | -8.27 | 240.39 | -15.82 | 126.47 | 0.3370 | 446.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.33 | 240.24 | -15.97 | 128.71 | 0.3493 | 477.0 | 400.1 | |
| 2.91 | -4.00 | 1.53 | -4.00 | -7.15 | 239.99 | -16.22 | 123.04 | 0.3321 | 858.7 | 999999 | |
| 0.00 | 4.27 | 0.00 | 2.22 | -4.47 | 239.91 | -16.30 | 115.59 | 0.3116 | 967.0 | 710.1 | |
| 2.63 | -4.00 | 1.38 | -4.00 | -7.06 | 239.80 | -16.41 | 122.51 | 0.3339 | 870.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -4.07 | 239.73 | -16.48 | 114.19 | 0.3116 | 841.0 | 684.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -4.29 | 239.66 | -16.55 | 114.73 | 0.3141 | 824.0 | 696.2 | |
| 0.36 | 1.91 | 0.19 | 1.00 | -6.02 | 239.51 | -16.70 | 119.34 | 0.3292 | 1026.2 | 779.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.67 | 239.46 | -16.75 | 120.97 | 0.3353 | 784.0 | 573.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -4.60 | 239.52 | -16.69 | 115.44 | 0.3183 | 833.0 | 719.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.08 | 239.38 | -16.83 | 119.32 | 0.3316 | 189.0 | 231.9 | |
| 0.64 | 3.99 | 0.33 | 2.10 | -6.83 | 239.10 | -17.11 | 120.84 | 0.3417 | 740.9 | 401.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.02 | 239.13 | -17.08 | 118.80 | 0.3348 | 620.0 | 389.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -5.97 | 238.78 | -17.43 | 118.17 | 0.3394 | 595.0 | 306.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -9.23 | 238.34 | -17.87 | 125.42 | 0.3732 | 772.0 | 552.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -6.50 | 238.24 | -17.97 | 118.81 | 0.3513 | -160.0 | -189.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -6.22 | 238.16 | -18.05 | 118.00 | 0.3504 | -666.0 | -446.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -7.16 | 238.02 | -18.19 | 120.13 | 0.3596 | -418.0 | -486.8 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -6.35 | 237.86 | -18.35 | 117.94 | 0.3556 | -145.0 | -135.1 | |
| 1.27 | 7.63 | 0.67 | 4.04 | -5.95 | 237.78 | -18.43 | 116.82 | 0.3539 | -1144.2 | -881.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.13 | 237.67 | -18.54 | 119.59 | 0.3644 | -162.0 | -252.2 | |
| 0.00 | 7.54 | 0.00 | 4.04 | -9.34 | 237.52 | -18.68 | 124.46 | 0.3850 | 857.0 | 714.0 | |
| 2.63 | 4.09 | 1.42 | 2.20 | -9.98 | 237.06 | -19.15 | 125.17 | 0.3968 | -1113.1 | -816.9 | |
| 3.18 | 696.10 | 1.70 | 373.74 | -7.57 | 237.13 | -19.08 | 119.94 | 0.3755 | -1020.7 | -446.6 | |
| 3.18 | -54.00 | 1.69 | -54.00 | -6.52 | 237.08 | -19.13 | 117.37 | 0.3682 | -1164.5 | 999999 | |
| 11.26 | -54.00 | 5.98 | -54.00 | -5.72 | 237.08 | -19.13 | 115.38 | 0.3625 | 966.0 | 999999 | |
| 1.36 | -54.00 | 0.73 | -54.00 | -7.52 | 236.84 | -19.37 | 119.44 | 0.3792 | -1278.0 | 999999 | |
| 7.35 | -54.00 | 3.93 | -54.00 | -6.87 | 236.80 | -19.41 | 117.86 | 0.3747 | -1198.4 | 999999 | |
| 3.72 | -54.00 | 1.98 | -54.00 | -6.22 | 236.80 | -19.41 | 116.29 | 0.3701 | -701.2 | 999999 | |
| 0.91 | -54.00 | 0.49 | -54.00 | -7.58 | 236.70 | -19.50 | 119.42 | 0.3816 | -837.5 | 999999 | |
| 1.18 | -54.00 | 0.63 | -54.00 | -5.79 | 236.65 | -19.56 | 115.07 | 0.3692 | 643.5 | 999999 | |
| 1.63 | -54.00 | 0.88 | -54.00 | -7.37 | 236.52 | -19.69 | 118.69 | 0.3826 | -1167.5 | 999999 | |
| 5.45 | -54.00 | 2.91 | -54.00 | -6.72 | 236.42 | -19.79 | 117.05 | 0.3792 | -1217.5 | 999999 | |
| 1.54 | -54.00 | 0.82 | -54.00 | -5.95 | 236.35 | -19.86 | 115.12 | 0.3747 | 742.9 | 999999 | |
| 4.72 | -54.00 | 2.53 | -54.00 | -6.17 | 236.12 | -20.09 | 115.39 | 0.3797 | 412.8 | 999999 | |
| 83.98 | -54.00 | 45.22 | -54.00 | -7.35 | 235.77 | -20.44 | 117.76 | 0.3931 | -1382.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.35 | 235.69 | -20.52 | 112.95 | 0.3806 | -930.0 | -752.8 | |
| 1.09 | -54.00 | 0.59 | -54.00 | -6.62 | 235.34 | -20.87 | 115.61 | 0.3940 | -1047.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -5.29 | 235.36 | -20.84 | 112.49 | 0.3851 | -971.0 | -856.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -9.92 | 235.05 | -21.16 | 122.44 | 0.4230 | -820.0 | -670.8 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -10.02 | 234.85 | -21.36 | 122.39 | 0.4266 | -711.0 | -660.2 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -5.17 | 235.01 | -21.20 | 111.87 | 0.3897 | -927.0 | -725.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -5.30 | 234.97 | -21.24 | 112.13 | 0.3910 | -870.0 | -709.5 | |
| 2.09 | -54.00 | 1.13 | -54.00 | -6.97 | 234.87 | -21.34 | 115.90 | 0.4033 | -1070.1 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -5.48 | 234.90 | -21.31 | 112.51 | 0.3933 | -939.0 | -826.5 | |
| 3.45 | -54.00 | 1.86 | -54.00 | -5.92 | 234.81 | -21.39 | 113.44 | 0.3972 | -1182.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -7.22 | 234.75 | -21.46 | 116.34 | 0.4066 | -720.0 | -528.9 | |
| 6.26 | -54.00 | 3.39 | -54.00 | -6.57 | 234.69 | -21.52 | 114.81 | 0.4032 | -1182.4 | 999999 | |
| 1.82 | -54.00 | 0.98 | -54.00 | -6.29 | 234.67 | -21.54 | 114.16 | 0.4017 | -1080.8 | 999999 | |
| 1.09 | -54.00 | 0.59 | -54.00 | -6.88 | 234.61 | -21.60 | 115.43 | 0.4065 | -908.0 | 999999 | |
| 4.54 | -54.00 | 2.46 | -54.00 | -6.67 | 234.52 | -21.69 | 114.86 | 0.4063 | -860.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -9.25 | 234.30 | -21.91 | 120.19 | 0.4278 | -915.0 | -758.3 | |
| 0.45 | 3.27 | 0.25 | 1.78 | -7.44 | 234.38 | -21.83 | 116.44 | 0.4136 | -879.0 | -671.5 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -5.53 | 234.37 | -21.84 | 112.11 | 0.4014 | -898.0 | -704.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.10 | 234.15 | -22.06 | 119.70 | 0.4288 | -849.0 | -694.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.23 | 234.26 | -21.95 | 115.85 | 0.4138 | -736.0 | -564.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.86 | 234.24 | -21.97 | 115.01 | 0.4115 | -618.0 | -541.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.07 | 234.23 | -21.98 | 115.48 | 0.4131 | -709.0 | -579.2 | |
| 0.45 | 6.17 | 0.25 | 3.38 | -8.88 | 234.09 | -22.12 | 119.20 | 0.4279 | -1080.0 | -748.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.63 | 234.04 | -22.17 | 120.67 | 0.4343 | -710.0 | -546.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -5.56 | 234.20 | -22.01 | 112.04 | 0.4040 | -535.0 | -442.0 | |
| 0.00 | 3.27 | 0.00 | 1.78 | -7.02 | 234.07 | -22.14 | 115.19 | 0.4151 | -616.0 | -558.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -7.39 | 233.98 | -22.23 | 115.92 | 0.4188 | -681.0 | -509.7 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -8.17 | 233.74 | -22.47 | 117.34 | 0.4277 | -766.0 | -719.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -6.68 | 233.69 | -22.52 | 114.09 | 0.4185 | -524.0 | -554.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -8.24 | 233.57 | -22.64 | 117.30 | 0.4306 | -838.0 | -727.5 | |
| 0.00 | 3.27 | 0.00 | 1.80 | -8.86 | 233.43 | -22.78 | 118.45 | 0.4370 | -665.0 | -582.7 | |
| 0.00 | 5.63 | 0.00 | 3.10 | -8.49 | 233.18 | -23.03 | 117.45 | 0.4377 | -709.0 | -649.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -9.03 | 233.01 | -23.20 | 118.36 | 0.4439 | -544.0 | -409.8 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -9.44 | 232.65 | -23.56 | 118.81 | 0.4519 | -672.0 | -509.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -8.58 | 232.24 | -23.97 | 116.69 | 0.4515 | -582.0 | -463.4 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -9.64 | 232.02 | -24.19 | 118.58 | 0.4619 | -697.0 | -530.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -9.56 | 231.83 | -24.38 | 118.22 | 0.4639 | -565.0 | -489.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
