SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 330.21 | 1725.05 | 209.00 | 1091.21 | -7.79 | 219.55 | -36.66 | 107.20 | 0.6207 | 309.6 | 46.5 | |
|
previous
or next observation for the same group /

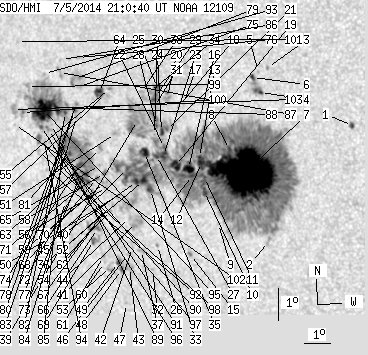

back to the solar disc SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 3.27 | 0.90 | 1.90 | -6.45 | 225.98 | -30.23 | 108.00 | 0.5280 | 944.9 | 674.4 | |
| 0.00 | 3.72 | 0.00 | 2.28 | -10.16 | 222.58 | -33.63 | 112.36 | 0.5916 | -70.0 | -125.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -4.75 | 223.02 | -33.18 | 103.57 | 0.5633 | -784.0 | -647.4 | |
| 1.18 | 14.89 | 0.71 | 8.97 | -5.53 | 222.72 | -33.49 | 104.78 | 0.5702 | 360.5 | -341.5 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -4.88 | 222.69 | -33.52 | 103.66 | 0.5684 | -578.0 | -506.0 | |
| 2.00 | -4.00 | 1.20 | -4.00 | -5.07 | 222.45 | -33.75 | 103.90 | 0.5723 | -727.7 | 999999 | |
| 168.24 | 1187.56 | 103.11 | 736.55 | -8.03 | 221.92 | -34.29 | 108.58 | 0.5907 | 1433.3 | 256.5 | |
| 1.27 | -7.00 | 0.78 | -7.00 | -7.33 | 221.43 | -34.78 | 107.21 | 0.5945 | 309.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -9.66 | 220.76 | -35.45 | 110.58 | 0.6129 | -196.0 | -170.9 | |
| 3.63 | -7.00 | 2.27 | -7.00 | -8.67 | 220.35 | -35.86 | 108.84 | 0.6142 | 509.9 | 999999 | |
| 1.00 | -7.00 | 0.62 | -7.00 | -8.24 | 220.39 | -35.82 | 108.18 | 0.6118 | 512.6 | 999999 | |
| 3.81 | -7.00 | 2.38 | -7.00 | -7.77 | 220.33 | -35.88 | 107.42 | 0.6109 | 780.3 | 999999 | |
| 0.27 | -7.00 | 0.17 | -7.00 | -7.62 | 220.27 | -35.94 | 107.15 | 0.6111 | 766.7 | 999999 | |
| 3.99 | -7.00 | 2.51 | -7.00 | -8.19 | 219.94 | -36.27 | 107.90 | 0.6175 | 80.9 | 999999 | |
| 0.36 | 2.00 | 0.23 | 1.28 | -10.67 | 219.55 | -36.66 | 111.50 | 0.6328 | 789.0 | 625.0 | |
| 7.35 | -7.00 | 4.63 | -7.00 | -7.98 | 219.81 | -36.40 | 107.51 | 0.6184 | 885.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -5.96 | 219.80 | -36.40 | 104.33 | 0.6114 | -448.0 | -345.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -6.06 | 219.61 | -36.60 | 104.41 | 0.6144 | -522.0 | -403.5 | |
| 8.08 | -7.00 | 5.11 | -7.00 | -7.90 | 219.32 | -36.89 | 107.17 | 0.6246 | 798.7 | 999999 | |
| 0.00 | 6.17 | 0.00 | 3.89 | -5.77 | 219.21 | -37.00 | 103.80 | 0.6188 | -392.0 | -351.4 | |
| 0.73 | 24.51 | 0.46 | 15.54 | -6.79 | 219.08 | -37.13 | 105.36 | 0.6238 | 620.4 | 405.8 | |
| 1.18 | -7.00 | 0.75 | -7.00 | -7.36 | 218.95 | -37.26 | 106.18 | 0.6274 | 793.8 | 999999 | |
| 6.90 | -7.00 | 4.39 | -7.00 | -7.61 | 218.89 | -37.32 | 106.54 | 0.6292 | 772.7 | 999999 | |
| 2.63 | -21.00 | 1.67 | -21.00 | -6.86 | 218.88 | -37.33 | 105.39 | 0.6266 | 760.0 | 999999 | |
| 2.45 | 15.25 | 1.55 | 9.67 | -5.50 | 218.84 | -37.37 | 103.25 | 0.6229 | -518.8 | 83.4 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -10.43 | 218.30 | -37.91 | 110.53 | 0.6475 | 413.0 | 362.9 | |
| 2.72 | -7.00 | 1.74 | -7.00 | -7.62 | 218.61 | -37.60 | 106.44 | 0.6327 | 648.7 | 999999 | |
| 0.82 | -21.00 | 0.52 | -21.00 | -6.68 | 218.70 | -37.50 | 105.04 | 0.6284 | 716.9 | 999999 | |
| 3.54 | -25.00 | 2.24 | -25.00 | -5.82 | 218.70 | -37.51 | 103.69 | 0.6257 | 836.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -6.97 | 218.60 | -37.61 | 105.44 | 0.6307 | 477.0 | 395.4 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -6.10 | 218.68 | -37.53 | 104.12 | 0.6268 | 747.0 | 638.2 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -11.20 | 217.98 | -38.22 | 111.50 | 0.6546 | -721.0 | -541.7 | |
| 3.99 | -7.00 | 2.57 | -7.00 | -8.68 | 218.26 | -37.95 | 107.91 | 0.6412 | -827.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -5.64 | 218.52 | -37.69 | 103.35 | 0.6275 | -334.0 | -223.1 | |
| 6.45 | -7.00 | 4.14 | -7.00 | -7.54 | 218.15 | -38.06 | 106.14 | 0.6384 | 654.5 | 999999 | |
| 4.09 | -7.00 | 2.64 | -7.00 | -8.41 | 218.01 | -38.19 | 107.40 | 0.6433 | -1060.0 | 999999 | |
| 0.00 | 3.99 | 0.00 | 2.62 | -10.61 | 217.64 | -38.57 | 110.49 | 0.6565 | -342.0 | -346.1 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -5.65 | 218.21 | -38.00 | 103.26 | 0.6317 | -308.0 | -244.0 | |
| 0.00 | 57.47 | 0.00 | 36.87 | -6.55 | 217.98 | -38.23 | 104.57 | 0.6375 | -270.0 | -137.1 | |
| 2.81 | -7.00 | 1.82 | -7.00 | -8.45 | 217.73 | -38.48 | 107.35 | 0.6470 | -1115.5 | 999999 | |
| 0.00 | 11.89 | 0.00 | 7.77 | -9.74 | 217.57 | -38.64 | 109.18 | 0.6539 | -347.0 | -274.1 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -10.53 | 217.29 | -38.92 | 110.21 | 0.6604 | -512.0 | -434.0 | |
| 0.00 | 7.17 | 0.00 | 4.75 | -11.17 | 217.07 | -39.14 | 111.03 | 0.6657 | -865.0 | -685.4 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -9.59 | 217.31 | -38.90 | 108.85 | 0.6566 | -733.0 | -622.0 | |
| 1.82 | -7.00 | 1.18 | -7.00 | -8.06 | 217.42 | -38.78 | 106.64 | 0.6496 | -713.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -10.76 | 217.06 | -39.15 | 110.44 | 0.6642 | -805.0 | -686.1 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -12.31 | 216.75 | -39.46 | 112.50 | 0.6743 | -674.0 | -564.2 | |
| 1.09 | 8.63 | 0.73 | 5.74 | -11.24 | 216.74 | -39.47 | 110.98 | 0.6701 | -751.8 | -678.2 | |
| 2.00 | -48.00 | 1.33 | -48.00 | -11.03 | 216.65 | -39.56 | 110.63 | 0.6702 | -932.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.49 | -8.92 | 216.92 | -39.29 | 107.71 | 0.6589 | -756.0 | -658.9 | |
| 0.00 | 2.54 | 0.00 | 1.65 | -6.99 | 217.07 | -39.14 | 104.90 | 0.6506 | -427.0 | -394.6 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -9.21 | 216.68 | -39.53 | 108.03 | 0.6630 | -654.0 | -579.6 | |
| 0.00 | 5.45 | 0.00 | 3.65 | -11.17 | 216.30 | -39.91 | 110.68 | 0.6750 | -375.0 | -538.8 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -9.40 | 216.58 | -39.63 | 108.27 | 0.6650 | -671.0 | -541.3 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -5.60 | 216.96 | -39.25 | 102.77 | 0.6480 | -844.0 | -746.7 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -8.69 | 216.51 | -39.70 | 107.20 | 0.6633 | -521.0 | -493.1 | |
| 0.00 | 1.82 | 0.00 | 1.18 | -5.76 | 216.78 | -39.43 | 102.96 | 0.6506 | -593.0 | -497.9 | |
| 0.73 | 2.81 | 0.48 | 1.85 | -8.25 | 216.49 | -39.72 | 106.55 | 0.6621 | -857.6 | -727.3 | |
| 0.00 | 2.09 | 0.00 | 1.38 | -8.53 | 216.45 | -39.76 | 106.95 | 0.6635 | -662.0 | -660.8 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -11.05 | 216.08 | -40.13 | 110.41 | 0.6772 | -545.0 | -367.4 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -10.86 | 216.07 | -40.14 | 110.14 | 0.6766 | -730.0 | -601.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -9.54 | 216.23 | -39.98 | 108.32 | 0.6697 | -462.0 | -388.4 | |
| 0.00 | 2.72 | 0.00 | 1.79 | -7.48 | 216.42 | -39.79 | 105.39 | 0.6605 | 453.0 | 254.9 | |
| 6.08 | 8.63 | 3.97 | 5.63 | -5.74 | 216.55 | -39.66 | 102.85 | 0.6536 | -909.0 | -652.7 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -8.01 | 216.31 | -39.90 | 106.14 | 0.6635 | -803.0 | -661.9 | |
| 1.00 | 9.17 | 0.67 | 6.15 | -9.99 | 215.96 | -40.25 | 108.85 | 0.6746 | -834.8 | -547.0 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -9.77 | 216.00 | -40.21 | 108.55 | 0.6734 | -755.0 | -699.8 | |
| 0.54 | 2.45 | 0.36 | 1.62 | -8.42 | 216.14 | -40.07 | 106.67 | 0.6670 | -845.3 | -697.9 | |
| 2.00 | 6.72 | 1.34 | 4.51 | -10.37 | 215.74 | -40.47 | 109.31 | 0.6788 | -668.2 | -573.9 | |
| 0.00 | 5.18 | 0.00 | 3.45 | -8.90 | 215.88 | -40.33 | 107.26 | 0.6719 | -656.0 | -525.2 | |
| 2.09 | 116.03 | 1.39 | 77.55 | -8.53 | 215.76 | -40.45 | 106.68 | 0.6720 | -737.2 | -650.4 | |
| 4.36 | -71.00 | 2.91 | -71.00 | -8.25 | 215.72 | -40.49 | 106.26 | 0.6717 | -1001.6 | 999999 | |
| 6.54 | -71.00 | 4.38 | -71.00 | -8.42 | 215.45 | -40.76 | 106.40 | 0.6755 | -706.0 | 999999 | |
| 6.63 | -71.00 | 4.43 | -71.00 | -8.04 | 215.50 | -40.71 | 105.88 | 0.6737 | -933.7 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.68 | -5.59 | 215.76 | -40.45 | 102.38 | 0.6634 | -501.0 | -469.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -4.69 | 215.79 | -40.42 | 101.05 | 0.6607 | -697.0 | -625.4 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -6.52 | 215.55 | -40.66 | 103.69 | 0.6686 | -850.0 | -740.0 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -6.12 | 215.59 | -40.62 | 103.11 | 0.6669 | -822.0 | -676.0 | |
| 0.00 | 9.71 | 0.00 | 6.43 | -5.35 | 215.62 | -40.59 | 101.98 | 0.6645 | -648.0 | -564.1 | |
| 1.27 | 2.72 | 0.84 | 1.81 | -6.34 | 215.49 | -40.72 | 103.40 | 0.6688 | -952.4 | -780.9 | |
| 1.82 | -71.00 | 1.22 | -71.00 | -7.68 | 215.14 | -41.07 | 105.24 | 0.6771 | -1109.2 | 999999 | |
| 1.45 | 127.11 | 0.97 | 85.92 | -6.41 | 215.11 | -41.10 | 103.39 | 0.6738 | -917.7 | -446.5 | |
| 1.82 | -71.00 | 1.22 | -71.00 | -7.28 | 215.02 | -41.19 | 104.62 | 0.6774 | -950.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -9.19 | 214.77 | -41.44 | 107.25 | 0.6864 | -640.0 | -492.7 | |
| 4.72 | -71.00 | 3.18 | -71.00 | -7.57 | 214.86 | -41.35 | 104.98 | 0.6802 | -905.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -4.78 | 215.09 | -41.12 | 100.99 | 0.6698 | -500.0 | -431.8 | |
| 0.00 | 4.18 | 0.00 | 2.79 | -5.19 | 214.98 | -41.23 | 101.56 | 0.6723 | -638.0 | -599.0 | |
| 6.81 | -82.00 | 4.58 | -82.00 | -6.27 | 214.76 | -41.45 | 103.08 | 0.6778 | -1082.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -6.81 | 214.50 | -41.71 | 103.77 | 0.6825 | -767.0 | -548.8 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -7.37 | 214.35 | -41.86 | 104.53 | 0.6859 | -604.0 | -530.5 | |
| 0.00 | 3.27 | 0.00 | 2.21 | -6.97 | 214.35 | -41.85 | 103.95 | 0.6847 | -811.0 | -716.9 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -8.22 | 214.12 | -42.09 | 105.65 | 0.6913 | -611.0 | -486.4 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -5.24 | 214.36 | -41.85 | 101.47 | 0.6802 | -122.0 | -146.3 | |
| 0.00 | 3.00 | 0.00 | 2.04 | -7.35 | 214.14 | -42.06 | 104.43 | 0.6884 | -649.0 | -496.8 | |
| 32.32 | -82.00 | 21.91 | -82.00 | -6.36 | 214.21 | -42.00 | 103.03 | 0.6848 | -903.4 | 999999 | |
| 1.27 | -82.00 | 0.87 | -82.00 | -6.89 | 214.07 | -42.14 | 103.75 | 0.6880 | -591.6 | 999999 | |
| 2.18 | 4.99 | 1.49 | 3.41 | -7.26 | 213.95 | -42.26 | 104.24 | 0.6906 | -611.5 | -467.7 | |
| 0.00 | 2.18 | 0.00 | 1.49 | -7.67 | 213.86 | -42.35 | 104.79 | 0.6928 | -580.0 | -463.0 | |
| 0.00 | 3.27 | 0.00 | 2.23 | -5.67 | 213.62 | -42.59 | 101.88 | 0.6905 | -483.0 | -360.1 | |
| 0.64 | 2.91 | 0.44 | 2.00 | -6.48 | 213.32 | -42.89 | 102.95 | 0.6961 | -681.9 | -487.5 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -4.30 | 213.31 | -42.90 | 99.84 | 0.6912 | -586.0 | -507.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -6.87 | 212.94 | -43.27 | 103.38 | 0.7017 | -387.0 | -312.2 | |
| 0.00 | 5.36 | 0.00 | 3.71 | -6.41 | 212.95 | -43.26 | 102.74 | 0.7004 | 248.0 | 185.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
