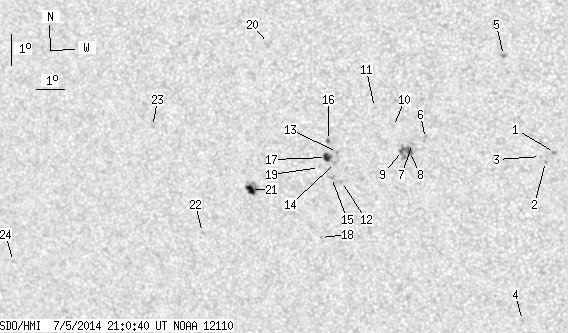

SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.80 | 66.83 | 8.53 | 38.35 | -16.00 | 232.97 | -23.24 | 131.12 | 0.5031 | -170.2 | -77.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.04 | -15.66 | 240.35 | -15.86 | 140.92 | 0.4191 | 959.0 | 748.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.96 | 240.03 | -16.18 | 140.82 | 0.4258 | 757.0 | 677.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -15.80 | 239.88 | -16.33 | 140.32 | 0.4254 | 382.0 | 370.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.21 | 238.71 | -17.49 | 145.86 | 0.5014 | 705.0 | 501.5 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -12.59 | 238.92 | -17.29 | 133.19 | 0.3996 | 929.0 | 786.3 | |
| 0.00 | 3.09 | 0.00 | 1.72 | -15.29 | 236.10 | -20.11 | 133.65 | 0.4603 | 794.0 | 622.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -15.46 | 235.64 | -20.57 | 133.30 | 0.4672 | 650.0 | 606.6 | |
| 2.81 | 14.16 | 1.58 | 7.95 | -15.72 | 235.51 | -20.70 | 133.54 | 0.4713 | 937.4 | 528.0 | |
| 1.63 | -8.00 | 0.92 | -8.00 | -15.69 | 235.28 | -20.93 | 133.18 | 0.4736 | 639.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -14.92 | 235.05 | -21.16 | 131.64 | 0.4685 | 691.0 | 500.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -14.33 | 234.47 | -21.74 | 129.89 | 0.4696 | 622.0 | 514.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -16.74 | 233.06 | -23.15 | 132.03 | 0.5088 | -860.0 | -740.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -15.80 | 233.04 | -23.17 | 130.55 | 0.5002 | -909.0 | -748.9 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -16.13 | 232.93 | -23.28 | 130.93 | 0.5045 | -881.0 | -667.9 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -16.62 | 232.73 | -23.48 | 131.45 | 0.5114 | -857.0 | -748.5 | |
| 0.64 | 1.73 | 0.36 | 0.99 | -15.42 | 232.78 | -23.43 | 129.63 | 0.4997 | -1010.9 | -761.8 | |
| 4.36 | 6.54 | 2.50 | 3.75 | -15.98 | 232.64 | -23.57 | 130.34 | 0.5064 | -984.7 | -694.2 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -18.59 | 232.06 | -24.15 | 133.59 | 0.5374 | -714.0 | -584.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -16.31 | 232.35 | -23.86 | 130.53 | 0.5127 | -685.0 | -584.5 | |
| 0.00 | 4.36 | 0.00 | 2.48 | -12.37 | 231.05 | -25.15 | 122.63 | 0.4950 | -173.0 | -230.2 | |
| 5.36 | 12.35 | 3.17 | 7.30 | -17.08 | 229.82 | -26.39 | 128.95 | 0.5485 | -889.3 | -698.5 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -18.54 | 227.84 | -28.37 | 129.12 | 0.5829 | -661.0 | -529.2 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -15.14 | 226.59 | -29.62 | 123.01 | 0.5711 | -645.0 | -468.7 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -19.73 | 220.36 | -35.85 | 124.71 | 0.6729 | -375.0 | -369.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
