SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.05 | 103.88 | 13.17 | 56.62 | 11.60 | 278.91 | 23.26 | 291.14 | 0.4173 | -513.8 | -324.5 | |
|
previous
or next observation for the same group /

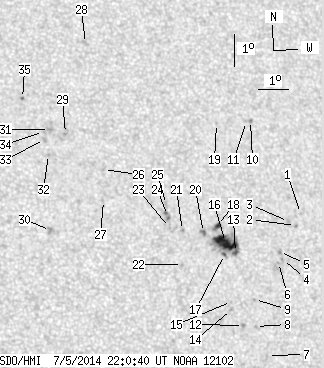

back to the solar disc SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.46 | 11.74 | 282.51 | 26.85 | 288.94 | 0.4695 | -701.0 | -524.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.38 | 282.30 | 26.64 | 288.30 | 0.4649 | -654.0 | -628.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 11.51 | 282.07 | 26.41 | 288.70 | 0.4620 | -803.0 | -630.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 10.35 | 281.75 | 26.09 | 286.39 | 0.4528 | -730.0 | -595.2 | |
| 0.00 | 2.36 | 0.00 | 1.31 | 10.60 | 281.66 | 26.01 | 286.97 | 0.4525 | -912.0 | -706.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 10.26 | 281.60 | 25.94 | 286.28 | 0.4503 | -881.0 | -742.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 7.42 | 281.01 | 25.35 | 280.18 | 0.4331 | -817.0 | -558.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 8.32 | 280.66 | 25.00 | 282.36 | 0.4299 | -825.0 | -677.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 9.15 | 280.68 | 25.03 | 284.24 | 0.4327 | -897.0 | -732.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 14.66 | 281.10 | 25.45 | 295.83 | 0.4637 | -757.0 | -657.0 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 14.63 | 280.96 | 25.31 | 295.89 | 0.4616 | -637.0 | -513.0 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 8.36 | 280.25 | 24.60 | 282.62 | 0.4238 | -829.0 | -703.5 | |
| 1.45 | 45.85 | 0.80 | 25.09 | 10.60 | 280.16 | 24.50 | 287.82 | 0.4299 | -742.7 | -577.9 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 8.86 | 279.88 | 24.23 | 283.95 | 0.4195 | -832.0 | -612.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 9.11 | 279.90 | 24.24 | 284.51 | 0.4206 | -656.0 | -519.1 | |
| 19.70 | -13.00 | 10.78 | -13.00 | 10.92 | 279.84 | 24.19 | 288.72 | 0.4265 | -1063.9 | 999999 | |
| 0.54 | -13.00 | 0.30 | -13.00 | 10.55 | 279.78 | 24.12 | 287.93 | 0.4240 | -989.5 | 999999 | |
| 2.36 | 4.99 | 1.29 | 2.73 | 11.45 | 279.62 | 23.96 | 290.07 | 0.4255 | -831.9 | -735.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 14.60 | 279.91 | 24.26 | 296.66 | 0.4468 | -593.0 | -489.2 | |
| 0.00 | 3.27 | 0.00 | 1.78 | 11.24 | 279.12 | 23.47 | 289.94 | 0.4172 | -1060.0 | -916.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 11.32 | 278.42 | 22.77 | 290.62 | 0.4071 | -796.0 | -608.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 10.28 | 278.34 | 22.68 | 288.19 | 0.4010 | -813.0 | -691.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 11.42 | 277.99 | 22.34 | 291.18 | 0.4012 | -843.0 | -824.0 | |
| 0.00 | 4.36 | 0.00 | 2.36 | 11.80 | 277.96 | 22.30 | 292.09 | 0.4026 | -823.0 | -839.1 | |
| 0.00 | 2.91 | 0.00 | 1.57 | 12.13 | 277.95 | 22.30 | 292.89 | 0.4043 | -798.0 | -393.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 13.26 | 275.94 | 20.28 | 297.44 | 0.3818 | 735.0 | 610.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 12.30 | 275.86 | 20.20 | 295.20 | 0.3745 | 644.0 | 536.4 | |
| 0.00 | 3.36 | 0.00 | 1.82 | 17.19 | 275.73 | 20.08 | 306.45 | 0.4095 | 515.0 | 356.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 14.40 | 274.77 | 19.12 | 301.50 | 0.3737 | 896.0 | 703.6 | |
| 0.00 | 4.00 | 0.00 | 2.11 | 11.42 | 274.04 | 18.39 | 294.79 | 0.3420 | 919.0 | 774.4 | |
| 0.00 | 3.18 | 0.00 | 1.69 | 14.54 | 274.25 | 18.60 | 302.48 | 0.3675 | 870.0 | 731.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.76 | 274.15 | 18.50 | 300.74 | 0.3601 | 786.0 | 624.2 | |
| 0.00 | 2.63 | 0.00 | 1.40 | 14.23 | 274.06 | 18.41 | 302.00 | 0.3624 | 843.0 | 690.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 14.48 | 274.05 | 18.39 | 302.61 | 0.3643 | 864.0 | 598.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 15.52 | 273.44 | 17.79 | 305.89 | 0.3649 | 799.0 | 766.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
