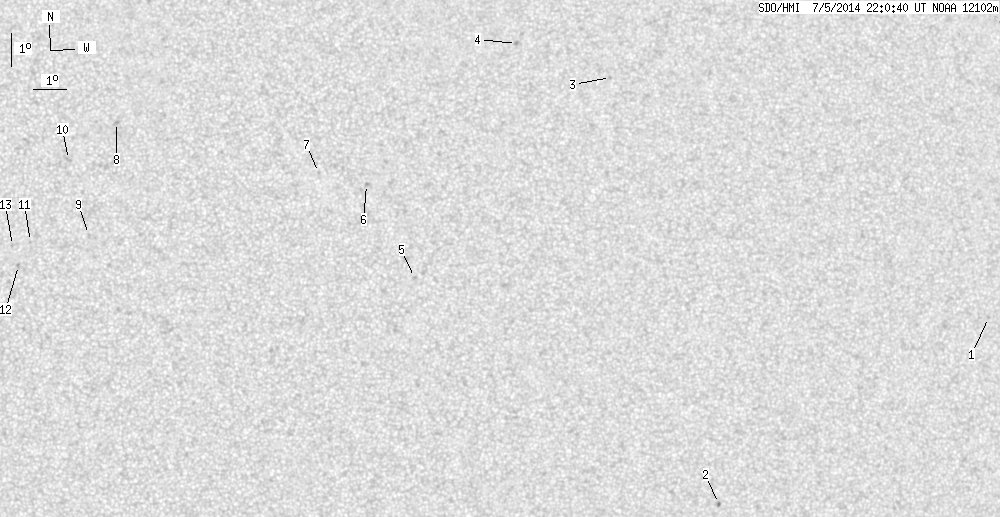

SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 19.07 | 0.19 | 9.60 | 5.22 | 257.97 | 2.32 | 187.87 | 0.1477 | 738.8 | 617.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | 1.56 | 278.87 | 23.22 | 266.09 | 0.3967 | -789.0 | -678.7 | |
| 0.36 | 1.54 | 0.19 | 0.80 | -3.95 | 270.19 | 14.53 | 243.35 | 0.2813 | 991.5 | 830.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.10 | 266.94 | 11.28 | 297.59 | 0.2189 | 812.0 | 616.6 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 10.18 | 264.02 | 8.37 | 309.74 | 0.1871 | 1044.0 | 765.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 3.06 | 260.76 | 5.10 | 266.60 | 0.0894 | 978.0 | 716.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 5.90 | 259.31 | 3.65 | 304.90 | 0.0776 | 1010.0 | 776.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.27 | 257.84 | 2.18 | 323.21 | 0.0635 | 786.0 | 562.1 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 7.80 | 251.63 | -4.02 | 41.95 | 0.1045 | 908.0 | 743.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 4.38 | 250.80 | -4.86 | 78.10 | 0.0867 | 671.0 | 406.5 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 6.67 | 250.16 | -5.49 | 58.75 | 0.1117 | 635.0 | 615.5 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 4.16 | 249.02 | -6.64 | 83.02 | 0.1167 | 681.0 | 586.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 3.43 | 248.65 | -7.00 | 89.36 | 0.1223 | 980.0 | 821.6 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 4.04 | 248.46 | -7.19 | 84.51 | 0.1260 | 849.0 | 649.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
