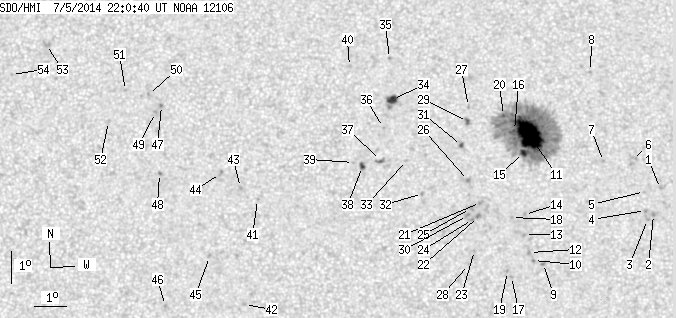

SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.48 | 397.38 | 31.79 | 202.22 | 15.01 | 260.79 | 5.14 | 337.24 | 0.2268 | -502.9 | -298.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.55 | 265.91 | 10.25 | 315.73 | 0.2490 | -961.0 | -808.1 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 12.75 | 265.65 | 10.00 | 314.03 | 0.2366 | -986.0 | -782.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.59 | 265.46 | 9.80 | 314.11 | 0.2324 | -890.0 | -757.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 12.87 | 265.40 | 9.75 | 315.13 | 0.2350 | -880.0 | -735.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.46 | 265.40 | 9.74 | 316.92 | 0.2420 | -864.0 | -655.8 | |
| 0.00 | 6.45 | 0.00 | 3.30 | 14.46 | 265.06 | 9.40 | 320.66 | 0.2506 | -492.0 | -668.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.40 | 264.13 | 8.48 | 323.35 | 0.2403 | -730.0 | -620.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.22 | 263.84 | 8.18 | 330.45 | 0.2769 | -864.0 | -566.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.27 | 262.14 | 6.49 | 321.18 | 0.1776 | -932.0 | -643.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.36 | 261.83 | 6.18 | 322.87 | 0.1755 | -745.0 | -604.2 | |
| 49.39 | 297.99 | 25.15 | 151.78 | 15.26 | 261.81 | 6.16 | 333.37 | 0.2318 | -1482.9 | -406.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.61 | 261.71 | 6.06 | 324.25 | 0.1777 | -868.0 | -695.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.17 | 261.57 | 5.91 | 326.67 | 0.1841 | -885.0 | -708.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.78 | 261.58 | 5.93 | 328.41 | 0.1932 | -852.0 | -702.4 | |
| 3.54 | -11.00 | 1.80 | -11.00 | 14.70 | 261.60 | 5.95 | 333.00 | 0.2218 | -1176.2 | 999999 | |
| 0.27 | -11.00 | 0.14 | -11.00 | 15.39 | 261.34 | 5.68 | 335.39 | 0.2303 | -1135.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.88 | 261.13 | 5.48 | 324.37 | 0.1617 | 824.0 | 571.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.69 | 261.17 | 5.52 | 329.96 | 0.1882 | -910.0 | -723.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.03 | 261.01 | 5.36 | 325.53 | 0.1627 | 764.0 | 512.4 | |
| 0.64 | -11.00 | 0.32 | -11.00 | 15.86 | 261.00 | 5.35 | 337.51 | 0.2353 | -772.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.16 | 260.21 | 4.56 | 335.56 | 0.1878 | -899.0 | -770.9 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 12.73 | 260.14 | 4.48 | 334.89 | 0.1805 | -1076.0 | -929.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.68 | 260.00 | 4.34 | 332.87 | 0.1633 | -831.0 | -597.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.64 | 259.95 | 4.30 | 335.61 | 0.1778 | -1090.0 | -821.1 | |
| 0.00 | 3.72 | 0.00 | 1.88 | 12.98 | 259.89 | 4.24 | 336.67 | 0.1827 | -860.0 | -626.5 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 13.85 | 259.85 | 4.19 | 338.68 | 0.1961 | -944.0 | -707.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.15 | 259.90 | 4.24 | 342.20 | 0.2334 | 645.0 | 474.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.25 | 259.80 | 4.15 | 332.67 | 0.1552 | -854.0 | -663.0 | |
| 0.64 | 3.45 | 0.32 | 1.75 | 15.68 | 259.85 | 4.20 | 341.71 | 0.2256 | 1043.6 | 813.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 12.76 | 259.80 | 4.14 | 336.67 | 0.1786 | -973.0 | -781.7 | |
| 0.82 | 2.27 | 0.41 | 1.15 | 14.93 | 259.65 | 3.99 | 341.45 | 0.2125 | -1069.2 | -826.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.45 | 258.40 | 2.74 | 345.12 | 0.1819 | -882.0 | -691.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.48 | 257.91 | 2.25 | 348.83 | 0.1972 | -765.0 | -576.3 | |
| 5.36 | 10.44 | 2.73 | 5.31 | 16.38 | 257.48 | 1.83 | 352.25 | 0.2281 | 1114.5 | 870.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 17.66 | 257.40 | 1.75 | 353.29 | 0.2496 | 891.0 | 715.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.50 | 257.19 | 1.54 | 353.00 | 0.2127 | 803.0 | 560.9 | |
| 0.00 | 3.72 | 0.00 | 1.88 | 14.48 | 257.09 | 1.43 | 352.84 | 0.1950 | 852.0 | 665.4 | |
| 1.82 | 3.27 | 0.92 | 1.65 | 14.29 | 256.52 | 0.86 | 355.58 | 0.1908 | 983.4 | 713.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.42 | 256.24 | 0.58 | 357.06 | 0.1927 | 983.0 | 758.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 17.42 | 256.12 | 0.47 | 358.16 | 0.2438 | 522.0 | 504.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.27 | 253.23 | -2.43 | 13.48 | 0.1776 | 759.0 | 657.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.04 | 252.85 | -2.81 | 22.54 | 0.1263 | 822.0 | 723.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.64 | 252.69 | -2.96 | 15.74 | 0.1861 | 893.0 | 725.1 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 14.08 | 252.06 | -3.60 | 18.14 | 0.1964 | 810.0 | 678.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.51 | 251.75 | -3.91 | 25.24 | 0.1573 | 697.0 | 565.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.00 | 250.40 | -5.26 | 37.96 | 0.1473 | 809.0 | 727.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 16.19 | 250.15 | -5.51 | 22.56 | 0.2414 | 922.0 | 774.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.07 | 250.13 | -5.52 | 26.66 | 0.2089 | 859.0 | 739.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.97 | 249.96 | -5.69 | 23.61 | 0.2393 | 885.0 | 785.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.53 | 249.72 | -5.93 | 23.51 | 0.2496 | 920.0 | 832.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.65 | 248.98 | -6.67 | 25.83 | 0.2567 | 827.0 | 640.4 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 15.68 | 248.47 | -7.18 | 29.42 | 0.2462 | 681.0 | 566.7 | |
| 0.00 | 4.63 | 0.00 | 2.40 | 18.08 | 246.37 | -9.28 | 31.07 | 0.2984 | 875.0 | 595.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 17.12 | 245.29 | -10.37 | 35.78 | 0.2954 | 769.0 | 533.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
