SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 293.38 | 1529.01 | 154.85 | 807.90 | -7.31 | 238.46 | -17.19 | 122.49 | 0.3481 | 26.5 | -35.1 | |
|
previous
or next observation for the same group /

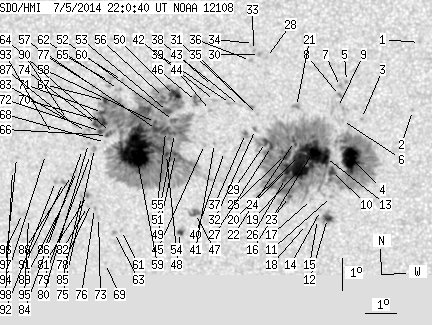

back to the solar disc SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | -3.96 | 244.87 | -10.79 | 124.16 | 0.2267 | 806.0 | 733.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.06 | 244.61 | -11.05 | 130.52 | 0.2517 | 817.0 | 525.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.33 | 243.01 | -12.65 | 127.51 | 0.2756 | 549.0 | 485.2 | |
| 30.51 | 678.34 | 15.80 | 353.33 | -7.57 | 242.62 | -13.03 | 130.12 | 0.2936 | 1437.1 | 456.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -5.19 | 242.56 | -13.09 | 123.16 | 0.2707 | -965.0 | -785.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -6.39 | 242.41 | -13.25 | 126.44 | 0.2843 | 778.0 | 596.7 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -5.35 | 242.37 | -13.28 | 123.26 | 0.2748 | -963.0 | -736.1 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -5.62 | 242.33 | -13.32 | 124.03 | 0.2779 | -889.0 | -575.4 | |
| 0.00 | 10.99 | 0.00 | 5.67 | -5.99 | 242.26 | -13.40 | 124.98 | 0.2824 | 218.0 | 341.1 | |
| 5.08 | -4.00 | 2.64 | -4.00 | -7.98 | 242.01 | -13.65 | 129.89 | 0.3058 | 927.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -8.76 | 241.98 | -13.68 | 131.75 | 0.3146 | 653.0 | 495.0 | |
| 4.45 | 9.81 | 2.33 | 5.13 | -9.45 | 241.82 | -13.83 | 133.05 | 0.3241 | 1048.3 | 753.8 | |
| 11.35 | -4.00 | 5.90 | -4.00 | -7.55 | 241.83 | -13.82 | 128.41 | 0.3036 | 1317.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.20 | 241.61 | -14.04 | 132.04 | 0.3239 | 866.0 | 632.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -9.48 | 241.50 | -14.15 | 132.48 | 0.3283 | 609.0 | 441.0 | |
| 34.68 | -4.00 | 18.05 | -4.00 | -7.40 | 241.43 | -14.23 | 127.22 | 0.3074 | 1397.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.86 | 241.34 | -14.31 | 130.70 | 0.3236 | 653.0 | 505.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.64 | 241.15 | -14.51 | 132.13 | 0.3345 | 506.0 | 249.8 | |
| 31.69 | -4.00 | 16.55 | -4.00 | -7.90 | 241.03 | -14.63 | 127.75 | 0.3177 | 1165.7 | 999999 | |
| 6.17 | -4.00 | 3.22 | -4.00 | -7.50 | 241.01 | -14.64 | 126.68 | 0.3139 | 1096.8 | 999999 | |
| 0.00 | 3.81 | 0.00 | 1.98 | -5.98 | 240.97 | -14.69 | 122.50 | 0.3003 | 936.0 | 834.2 | |
| 3.09 | -4.00 | 1.61 | -4.00 | -7.06 | 240.87 | -14.79 | 125.29 | 0.3117 | 1072.4 | 999999 | |
| 1.18 | -4.00 | 0.62 | -4.00 | -8.78 | 240.64 | -15.01 | 129.16 | 0.3316 | 611.7 | 999999 | |
| 8.08 | -4.00 | 4.23 | -4.00 | -7.94 | 240.61 | -15.04 | 127.07 | 0.3235 | 998.6 | 999999 | |
| 8.81 | -4.00 | 4.60 | -4.00 | -7.47 | 240.57 | -15.09 | 125.81 | 0.3196 | 953.4 | 999999 | |
| 3.63 | -4.00 | 1.90 | -4.00 | -8.22 | 240.54 | -15.12 | 127.62 | 0.3273 | 738.3 | 999999 | |
| 3.27 | -4.00 | 1.71 | -4.00 | -7.23 | 240.13 | -15.53 | 124.42 | 0.3233 | 849.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -4.48 | 240.05 | -15.60 | 116.65 | 0.3013 | 931.0 | 726.5 | |
| 3.00 | -4.00 | 1.57 | -4.00 | -7.11 | 239.94 | -15.71 | 123.78 | 0.3247 | 915.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -4.40 | 239.83 | -15.82 | 116.07 | 0.3040 | 1071.0 | 819.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.25 | 239.72 | -15.94 | 121.14 | 0.3203 | 841.0 | 709.2 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -6.71 | 239.64 | -16.02 | 122.25 | 0.3254 | 861.0 | 632.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -4.28 | 239.64 | -16.01 | 115.44 | 0.3059 | 812.0 | 731.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -4.06 | 239.65 | -16.01 | 114.81 | 0.3043 | 737.0 | 605.1 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -6.06 | 239.53 | -16.12 | 120.35 | 0.3214 | 542.0 | 519.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -4.58 | 239.54 | -16.11 | 116.21 | 0.3097 | 829.0 | 655.0 | |
| 0.73 | -4.00 | 0.38 | -4.00 | -6.84 | 239.31 | -16.34 | 122.06 | 0.3311 | 707.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -5.98 | 239.15 | -16.50 | 119.54 | 0.3261 | 357.0 | 212.8 | |
| 0.00 | 3.90 | 0.00 | 2.05 | -5.92 | 238.87 | -16.79 | 118.96 | 0.3298 | 191.0 | 171.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -7.41 | 238.62 | -17.04 | 122.42 | 0.3457 | 435.0 | 235.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -7.17 | 238.31 | -17.35 | 121.36 | 0.3480 | -866.0 | -715.2 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -5.84 | 238.36 | -17.30 | 118.02 | 0.3366 | -154.0 | -111.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -5.40 | 238.31 | -17.35 | 116.80 | 0.3341 | 531.0 | 397.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.15 | 238.22 | -17.44 | 118.64 | 0.3410 | -827.0 | -622.9 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -7.20 | 237.98 | -17.67 | 120.98 | 0.3528 | -561.0 | -362.6 | |
| 0.00 | 6.99 | 0.00 | 3.69 | -5.88 | 237.78 | -17.88 | 117.35 | 0.3453 | -1262.0 | -948.9 | |
| 3.27 | 7.17 | 1.75 | 3.83 | -9.36 | 237.59 | -18.07 | 125.41 | 0.3771 | 900.7 | 572.6 | |
| 2.00 | 5.27 | 1.07 | 2.83 | -9.96 | 237.06 | -18.59 | 125.94 | 0.3895 | -1081.0 | -795.8 | |
| 2.09 | 701.13 | 1.11 | 375.05 | -7.50 | 237.03 | -18.62 | 120.38 | 0.3686 | -979.4 | -443.0 | |
| 9.53 | -49.00 | 5.05 | -49.00 | -5.70 | 237.07 | -18.58 | 116.01 | 0.3544 | 1005.6 | 999999 | |
| 1.36 | -49.00 | 0.72 | -49.00 | -6.88 | 237.03 | -18.63 | 118.89 | 0.3637 | -1240.9 | 999999 | |
| 2.18 | -49.00 | 1.16 | -49.00 | -6.48 | 237.01 | -18.64 | 117.88 | 0.3609 | -1192.2 | 999999 | |
| 4.00 | -49.00 | 2.12 | -49.00 | -6.20 | 236.83 | -18.83 | 116.97 | 0.3615 | -603.1 | 999999 | |
| 1.73 | -49.00 | 0.92 | -49.00 | -7.54 | 236.74 | -18.92 | 120.07 | 0.3730 | -1171.8 | 999999 | |
| 6.54 | -49.00 | 3.48 | -49.00 | -6.82 | 236.74 | -18.92 | 118.38 | 0.3674 | -1212.5 | 999999 | |
| 1.09 | -49.00 | 0.58 | -49.00 | -5.77 | 236.71 | -18.94 | 115.75 | 0.3601 | 752.3 | 999999 | |
| 6.72 | -49.00 | 3.58 | -49.00 | -6.77 | 236.45 | -19.21 | 117.88 | 0.3712 | -1248.9 | 999999 | |
| 1.54 | -49.00 | 0.82 | -49.00 | -6.55 | 236.42 | -19.23 | 117.33 | 0.3699 | -1116.2 | 999999 | |
| 76.72 | -49.00 | 41.18 | -49.00 | -7.40 | 235.73 | -19.92 | 118.50 | 0.3861 | -1413.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.27 | 235.40 | -20.26 | 113.06 | 0.3763 | -911.0 | -789.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -9.93 | 235.13 | -20.53 | 123.26 | 0.4148 | -844.0 | -611.1 | |
| 0.00 | 2.72 | 0.00 | 1.46 | -5.55 | 235.26 | -20.40 | 113.60 | 0.3802 | -875.0 | -825.4 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -10.00 | 234.89 | -20.76 | 123.10 | 0.4185 | -855.0 | -646.0 | |
| 0.27 | -49.00 | 0.15 | -49.00 | -6.89 | 234.94 | -20.72 | 116.41 | 0.3938 | -1189.7 | 999999 | |
| 0.00 | 5.54 | 0.00 | 2.97 | -5.31 | 234.97 | -20.68 | 112.72 | 0.3829 | -990.0 | -806.8 | |
| 1.18 | -49.00 | 0.64 | -49.00 | -6.98 | 234.84 | -20.82 | 116.51 | 0.3959 | -1008.2 | 999999 | |
| 2.45 | -49.00 | 1.32 | -49.00 | -5.90 | 234.82 | -20.84 | 113.98 | 0.3889 | -1163.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.20 | 234.76 | -20.90 | 116.92 | 0.3985 | -779.0 | -567.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -10.98 | 234.52 | -21.13 | 124.59 | 0.4317 | -642.0 | -437.6 | |
| 6.36 | -49.00 | 3.43 | -49.00 | -6.55 | 234.69 | -20.96 | 115.37 | 0.3950 | -1140.3 | 999999 | |
| 2.45 | -49.00 | 1.32 | -49.00 | -6.27 | 234.70 | -20.95 | 114.74 | 0.3930 | -1095.0 | 999999 | |
| 1.73 | -49.00 | 0.93 | -49.00 | -6.86 | 234.61 | -21.04 | 116.00 | 0.3983 | -849.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -9.54 | 234.39 | -21.26 | 121.55 | 0.4214 | -748.0 | -615.6 | |
| 3.81 | -49.00 | 2.06 | -49.00 | -6.65 | 234.49 | -21.17 | 115.38 | 0.3986 | -832.9 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.48 | -7.39 | 234.39 | -21.27 | 116.95 | 0.4052 | -885.0 | -738.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -9.26 | 234.28 | -21.38 | 120.84 | 0.4208 | -930.0 | -756.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -5.48 | 234.44 | -21.21 | 112.60 | 0.3918 | -905.0 | -695.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.11 | 234.19 | -21.47 | 120.42 | 0.4208 | -786.0 | -627.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -7.58 | 234.24 | -21.41 | 117.22 | 0.4086 | -455.0 | -308.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -7.24 | 234.20 | -21.46 | 116.41 | 0.4069 | -703.0 | -579.3 | |
| 0.64 | 3.27 | 0.35 | 1.78 | -8.86 | 234.07 | -21.58 | 119.77 | 0.4205 | -1057.7 | -849.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.21 | 234.05 | -21.61 | 120.46 | 0.4234 | -574.0 | -535.8 | |
| 0.00 | 4.09 | 0.00 | 2.21 | -6.87 | 234.15 | -21.51 | 115.53 | 0.4050 | -368.0 | -552.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.43 | 233.99 | -21.67 | 116.61 | 0.4112 | -660.0 | -469.1 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -8.90 | 233.87 | -21.79 | 119.61 | 0.4235 | -722.0 | -631.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.12 | 233.75 | -21.90 | 117.85 | 0.4194 | -797.0 | -743.1 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -6.70 | 233.76 | -21.89 | 114.74 | 0.4095 | -623.0 | -509.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.25 | 233.58 | -22.08 | 117.94 | 0.4228 | -892.0 | -741.6 | |
| 0.00 | 2.63 | 0.00 | 1.44 | -8.88 | 233.40 | -22.25 | 119.06 | 0.4298 | -745.0 | -577.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.51 | 233.54 | -22.12 | 114.12 | 0.4115 | -575.0 | -376.0 | |
| 0.00 | 2.81 | 0.00 | 1.54 | -8.47 | 233.30 | -22.36 | 118.11 | 0.4283 | -896.0 | -729.0 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -8.45 | 233.03 | -22.62 | 117.78 | 0.4318 | -664.0 | -583.0 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -6.99 | 233.02 | -22.64 | 114.66 | 0.4222 | -718.0 | -560.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -7.62 | 232.75 | -22.91 | 115.75 | 0.4301 | -628.0 | -491.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -9.63 | 232.04 | -23.61 | 119.13 | 0.4540 | -719.0 | -627.3 | |
| 0.00 | 4.27 | 0.00 | 2.37 | -9.47 | 231.85 | -23.80 | 118.64 | 0.4555 | -559.0 | -509.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.73 | 231.77 | -23.89 | 115.06 | 0.4448 | -585.0 | -460.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -8.14 | 231.61 | -24.05 | 115.75 | 0.4497 | -140.0 | -83.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
