SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 359.28 | 1726.34 | 225.18 | 1083.22 | -7.83 | 219.64 | -36.01 | 107.56 | 0.6125 | 348.5 | 37.8 | |
|
previous
or next observation for the same group /

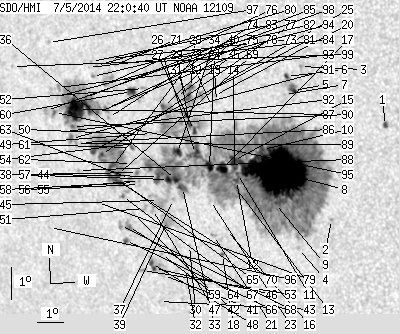

back to the solar disc SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 3.36 | 1.00 | 1.95 | -6.46 | 225.96 | -29.70 | 108.33 | 0.5206 | 960.5 | 667.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -9.44 | 223.77 | -31.89 | 112.24 | 0.5651 | -631.0 | -477.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -4.73 | 223.02 | -32.64 | 103.76 | 0.5555 | -783.0 | -660.4 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -10.39 | 222.44 | -33.21 | 112.99 | 0.5874 | -411.0 | -347.1 | |
| 2.63 | 15.25 | 1.58 | 9.13 | -5.48 | 222.72 | -32.94 | 104.94 | 0.5623 | 161.4 | -351.2 | |
| 1.54 | -5.00 | 0.92 | -5.00 | -5.05 | 222.49 | -33.17 | 104.11 | 0.5640 | -749.8 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -5.61 | 222.38 | -33.28 | 105.02 | 0.5675 | 416.0 | 257.6 | |
| 184.41 | 1265.34 | 112.24 | 780.06 | -8.04 | 221.96 | -33.69 | 108.90 | 0.5828 | 1437.7 | 241.6 | |
| 0.82 | -8.00 | 0.50 | -8.00 | -9.01 | 221.75 | -33.91 | 110.37 | 0.5899 | 644.2 | 999999 | |
| 2.45 | -8.00 | 1.50 | -8.00 | -7.34 | 221.43 | -34.22 | 107.49 | 0.5871 | 399.6 | 999999 | |
| 0.82 | -8.00 | 0.51 | -8.00 | -8.12 | 220.42 | -35.24 | 108.27 | 0.6037 | 576.8 | 999999 | |
| 3.63 | -8.00 | 2.26 | -8.00 | -8.34 | 220.36 | -35.30 | 108.59 | 0.6054 | 515.0 | 999999 | |
| 2.63 | -8.00 | 1.64 | -8.00 | -8.59 | 220.33 | -35.32 | 108.97 | 0.6068 | 569.3 | 999999 | |
| 1.91 | -8.00 | 1.18 | -8.00 | -7.97 | 220.32 | -35.33 | 107.98 | 0.6044 | 642.0 | 999999 | |
| 8.53 | -8.00 | 5.29 | -8.00 | -7.72 | 220.31 | -35.35 | 107.58 | 0.6036 | 760.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -9.89 | 219.80 | -35.86 | 110.73 | 0.6193 | -714.0 | -562.9 | |
| 10.08 | -8.00 | 6.29 | -8.00 | -7.98 | 219.86 | -35.79 | 107.80 | 0.6105 | 838.1 | 999999 | |
| 0.64 | 1.82 | 0.40 | 1.15 | -10.68 | 219.54 | -36.12 | 111.80 | 0.6261 | 727.3 | 604.7 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -5.91 | 219.82 | -35.83 | 104.47 | 0.6036 | -441.0 | -412.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -5.73 | 219.76 | -35.89 | 104.15 | 0.6038 | -557.0 | -379.1 | |
| 0.00 | 2.09 | 0.00 | 1.32 | -10.09 | 219.27 | -36.38 | 110.78 | 0.6269 | -785.0 | -613.4 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -6.04 | 219.62 | -36.03 | 104.60 | 0.6067 | -443.0 | -353.6 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -9.00 | 219.29 | -36.36 | 109.12 | 0.6220 | -233.0 | -191.4 | |
| 7.35 | -8.00 | 4.62 | -8.00 | -7.94 | 219.37 | -36.28 | 107.51 | 0.6168 | 790.4 | 999999 | |
| 0.00 | 5.18 | 0.00 | 3.23 | -5.75 | 219.23 | -36.43 | 103.98 | 0.6111 | -430.0 | -368.1 | |
| 10.44 | -8.00 | 6.59 | -8.00 | -7.55 | 218.88 | -36.78 | 106.69 | 0.6219 | 810.8 | 999999 | |
| 2.27 | -8.00 | 1.43 | -8.00 | -6.84 | 218.91 | -36.75 | 105.58 | 0.6190 | 787.2 | 999999 | |
| 2.00 | 19.07 | 1.25 | 11.98 | -5.51 | 218.86 | -36.79 | 103.47 | 0.6152 | -541.5 | 196.8 | |
| 2.09 | -8.00 | 1.32 | -8.00 | -6.66 | 218.73 | -36.92 | 105.23 | 0.6207 | 719.0 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -10.44 | 218.29 | -37.36 | 110.82 | 0.6408 | 448.0 | 380.4 | |
| 3.90 | -28.00 | 2.45 | -28.00 | -5.79 | 218.73 | -36.93 | 103.87 | 0.6179 | 759.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -11.17 | 218.02 | -37.63 | 111.76 | 0.6472 | -675.0 | -540.4 | |
| 4.90 | -8.00 | 3.13 | -8.00 | -8.63 | 218.25 | -37.40 | 108.08 | 0.6339 | -723.8 | 999999 | |
| 6.45 | -8.00 | 4.11 | -8.00 | -7.54 | 218.18 | -37.47 | 106.39 | 0.6309 | 670.4 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.32 | -5.81 | 218.30 | -37.35 | 103.74 | 0.6236 | -235.0 | -186.4 | |
| 2.81 | -8.00 | 1.80 | -8.00 | -8.39 | 218.01 | -37.65 | 107.61 | 0.6362 | -1169.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -9.02 | 217.86 | -37.80 | 108.49 | 0.6405 | -725.0 | -649.8 | |
| 3.45 | -8.00 | 2.22 | -8.00 | -8.40 | 217.73 | -37.92 | 107.51 | 0.6397 | -1090.7 | 999999 | |
| 0.00 | 15.25 | 0.00 | 9.89 | -9.68 | 217.53 | -38.12 | 109.34 | 0.6472 | -371.0 | -333.3 | |
| 1.91 | -8.00 | 1.22 | -8.00 | -6.14 | 217.77 | -37.89 | 104.06 | 0.6317 | -418.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.13 | -11.42 | 217.11 | -38.54 | 111.69 | 0.6595 | -257.0 | -285.4 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -10.76 | 217.14 | -38.52 | 110.74 | 0.6565 | -754.0 | -673.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -12.26 | 216.81 | -38.84 | 112.73 | 0.6668 | -698.0 | -562.9 | |
| 7.45 | -8.00 | 4.81 | -8.00 | -8.32 | 217.35 | -38.30 | 107.23 | 0.6444 | -902.0 | 999999 | |
| 0.00 | 13.62 | 0.00 | 8.84 | -9.07 | 217.26 | -38.40 | 108.31 | 0.6483 | -449.0 | -441.0 | |
| 1.54 | 12.71 | 1.02 | 8.38 | -11.22 | 216.79 | -38.87 | 111.23 | 0.6626 | -785.2 | -745.2 | |
| 0.00 | 2.91 | 0.00 | 1.90 | -9.36 | 216.98 | -38.67 | 108.62 | 0.6529 | -710.0 | -672.3 | |
| 1.82 | -46.00 | 1.20 | -46.00 | -11.06 | 216.69 | -38.96 | 110.97 | 0.6632 | -935.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -6.99 | 217.22 | -38.43 | 105.17 | 0.6415 | -231.0 | -166.6 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -7.03 | 216.98 | -38.67 | 105.14 | 0.6448 | -540.0 | -431.8 | |
| 0.00 | 3.63 | 0.00 | 2.38 | -9.34 | 216.67 | -38.99 | 108.46 | 0.6567 | -635.0 | -590.5 | |
| 0.00 | 2.27 | 0.00 | 1.46 | -5.61 | 217.03 | -38.62 | 102.99 | 0.6398 | -820.0 | -639.5 | |
| 0.00 | 2.45 | 0.00 | 1.63 | -11.30 | 216.29 | -39.36 | 111.12 | 0.6690 | -624.0 | -574.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -7.28 | 216.84 | -38.82 | 105.47 | 0.6474 | -611.0 | -437.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -8.47 | 216.58 | -39.07 | 107.14 | 0.6547 | -708.0 | -644.3 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -8.60 | 216.57 | -39.09 | 107.32 | 0.6553 | -461.0 | -486.7 | |
| 0.00 | 2.81 | 0.00 | 1.84 | -8.23 | 216.53 | -39.12 | 106.76 | 0.6545 | -886.0 | -747.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -8.54 | 216.37 | -39.28 | 107.16 | 0.6576 | -838.0 | -671.9 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -9.51 | 216.20 | -39.45 | 108.51 | 0.6632 | -624.0 | -453.3 | |
| 5.18 | 14.35 | 3.35 | 9.28 | -5.72 | 216.55 | -39.11 | 103.00 | 0.6464 | -924.8 | -504.0 | |
| 1.18 | 2.63 | 0.77 | 1.72 | -7.46 | 216.38 | -39.27 | 105.55 | 0.6538 | 411.6 | 242.2 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -7.95 | 216.32 | -39.33 | 106.27 | 0.6562 | -800.0 | -644.9 | |
| 0.54 | 1.82 | 0.36 | 1.19 | -8.42 | 216.19 | -39.47 | 106.92 | 0.6595 | -825.3 | -689.3 | |
| 0.00 | 6.54 | 0.00 | 4.34 | -9.93 | 215.94 | -39.71 | 109.01 | 0.6679 | -880.0 | -709.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -8.65 | 216.04 | -39.62 | 107.18 | 0.6621 | -654.0 | -565.9 | |
| 1.54 | 4.09 | 1.03 | 2.72 | -10.38 | 215.75 | -39.90 | 109.56 | 0.6719 | -752.4 | -579.7 | |
| 0.73 | 4.27 | 0.48 | 2.82 | -9.00 | 215.83 | -39.82 | 107.61 | 0.6659 | -679.4 | -553.5 | |
| 0.00 | 3.81 | 0.00 | 2.54 | -9.91 | 215.62 | -40.03 | 108.84 | 0.6718 | -545.0 | -425.3 | |
| 3.72 | 113.68 | 2.46 | 75.34 | -8.32 | 215.72 | -39.94 | 106.58 | 0.6650 | -1017.5 | -683.1 | |
| 8.35 | -69.00 | 5.54 | -69.00 | -8.48 | 215.62 | -40.04 | 106.77 | 0.6668 | -741.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -4.91 | 215.98 | -39.68 | 101.60 | 0.6517 | -825.0 | -688.9 | |
| 6.36 | -69.00 | 4.21 | -69.00 | -8.11 | 215.50 | -40.15 | 106.19 | 0.6670 | -910.2 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -4.73 | 215.79 | -39.86 | 101.27 | 0.6536 | -667.0 | -594.4 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -6.56 | 215.55 | -40.10 | 103.93 | 0.6616 | -808.0 | -698.4 | |
| 1.09 | 136.65 | 0.72 | 91.61 | -6.28 | 215.50 | -40.15 | 103.51 | 0.6615 | -958.5 | -452.3 | |
| 0.45 | 8.17 | 0.30 | 5.36 | -5.54 | 215.53 | -40.13 | 102.41 | 0.6591 | -896.8 | -566.5 | |
| 2.27 | -69.00 | 1.51 | -69.00 | -7.72 | 215.15 | -40.51 | 105.49 | 0.6702 | -977.7 | 999999 | |
| 1.54 | -75.00 | 1.02 | -75.00 | -6.42 | 215.12 | -40.53 | 103.59 | 0.6667 | -949.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -9.23 | 214.79 | -40.87 | 107.53 | 0.6796 | -609.0 | -519.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -4.97 | 215.21 | -40.44 | 101.46 | 0.6617 | -729.0 | -644.5 | |
| 5.54 | -69.00 | 3.70 | -69.00 | -7.57 | 214.88 | -40.78 | 105.19 | 0.6731 | -898.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -5.31 | 215.02 | -40.63 | 101.92 | 0.6650 | -803.0 | -691.1 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -4.85 | 215.02 | -40.64 | 101.24 | 0.6639 | -538.0 | -478.7 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -5.04 | 214.88 | -40.77 | 101.48 | 0.6661 | -566.0 | -522.2 | |
| 1.36 | -75.00 | 0.91 | -75.00 | -5.97 | 214.68 | -40.98 | 102.79 | 0.6711 | -891.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -7.38 | 214.37 | -41.29 | 104.73 | 0.6789 | -584.0 | -504.0 | |
| 35.14 | -75.00 | 23.57 | -75.00 | -6.36 | 214.36 | -41.30 | 103.25 | 0.6761 | -996.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -8.25 | 214.14 | -41.52 | 105.91 | 0.6844 | -635.0 | -553.2 | |
| 0.00 | 2.45 | 0.00 | 1.66 | -7.42 | 214.16 | -41.50 | 104.72 | 0.6816 | -645.0 | -568.4 | |
| 1.00 | -75.00 | 0.67 | -75.00 | -6.89 | 214.05 | -41.60 | 103.93 | 0.6814 | -573.9 | 999999 | |
| 1.73 | 5.27 | 1.17 | 3.57 | -7.27 | 213.97 | -41.68 | 104.44 | 0.6835 | -662.3 | -472.6 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -7.06 | 213.75 | -41.91 | 104.07 | 0.6857 | -315.0 | -242.5 | |
| 0.00 | 2.91 | 0.00 | 1.97 | -5.71 | 213.60 | -42.06 | 102.09 | 0.6840 | -435.0 | -372.5 | |
| 0.00 | 1.91 | 0.00 | 1.29 | -5.99 | 213.53 | -42.13 | 102.47 | 0.6855 | -476.0 | -412.6 | |
| 1.36 | -75.00 | 0.93 | -75.00 | -6.49 | 213.35 | -42.30 | 103.14 | 0.6890 | -654.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -10.09 | 212.65 | -43.01 | 107.93 | 0.7081 | -389.0 | -370.4 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -4.33 | 213.29 | -42.36 | 100.03 | 0.6846 | -682.0 | -540.0 | |
| 0.00 | 4.99 | 0.00 | 3.42 | -6.44 | 213.02 | -42.63 | 102.97 | 0.6929 | 172.0 | 107.3 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -5.13 | 211.72 | -43.94 | 100.78 | 0.7058 | -391.0 | -350.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
