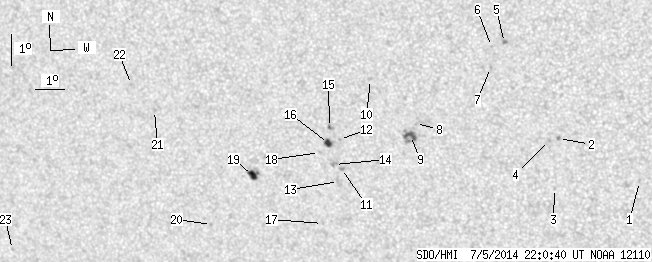

SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.99 | 61.84 | 8.58 | 35.28 | -16.16 | 233.26 | -22.39 | 132.49 | 0.4952 | -135.9 | -102.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.04 | 242.94 | -12.72 | 148.79 | 0.4079 | 714.0 | 591.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -15.68 | 240.39 | -15.27 | 142.00 | 0.4135 | 946.0 | 794.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.31 | 240.12 | -15.53 | 143.94 | 0.4361 | 680.0 | 526.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -15.75 | 240.09 | -15.57 | 141.57 | 0.4173 | 780.0 | 605.6 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -12.64 | 238.85 | -16.81 | 134.10 | 0.3946 | 920.0 | 805.4 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -12.77 | 238.41 | -17.24 | 133.62 | 0.4010 | 707.0 | 587.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -13.44 | 238.33 | -17.33 | 134.71 | 0.4092 | 701.0 | 564.2 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -15.28 | 235.68 | -19.98 | 133.84 | 0.4588 | 686.0 | 705.7 | |
| 4.90 | 13.26 | 2.74 | 7.42 | -15.67 | 235.47 | -20.19 | 134.18 | 0.4652 | 850.6 | 488.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -13.90 | 234.30 | -21.36 | 129.66 | 0.4610 | 522.0 | 454.1 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -16.79 | 232.98 | -22.67 | 132.69 | 0.5040 | -851.0 | -745.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.85 | 233.03 | -22.62 | 131.29 | 0.4945 | -827.0 | -683.5 | |
| 0.00 | 4.00 | 0.00 | 2.30 | -17.22 | 232.82 | -22.83 | 133.14 | 0.5099 | -60.0 | -204.5 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -16.67 | 232.76 | -22.90 | 132.22 | 0.5054 | -693.0 | -727.9 | |
| 0.64 | 2.72 | 0.36 | 1.55 | -15.47 | 232.73 | -22.92 | 130.32 | 0.4943 | -942.0 | -745.9 | |
| 4.09 | 5.90 | 2.33 | 3.37 | -15.99 | 232.63 | -23.02 | 131.03 | 0.5003 | -976.8 | -674.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -18.61 | 232.07 | -23.59 | 134.27 | 0.5316 | -728.0 | -489.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -16.29 | 232.29 | -23.37 | 131.08 | 0.5071 | -753.0 | -547.4 | |
| 5.36 | 11.08 | 3.15 | 6.52 | -17.09 | 229.83 | -25.83 | 129.57 | 0.5423 | -930.1 | -728.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -18.74 | 228.08 | -27.57 | 130.18 | 0.5759 | -615.0 | -466.3 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -15.08 | 226.62 | -29.03 | 123.44 | 0.5637 | -539.0 | -350.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -14.27 | 225.91 | -29.74 | 121.59 | 0.5665 | -742.0 | -661.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -19.81 | 220.30 | -35.36 | 125.16 | 0.6682 | -577.0 | -474.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
